Ethernet Module WIZnet W5100S-L

Project description

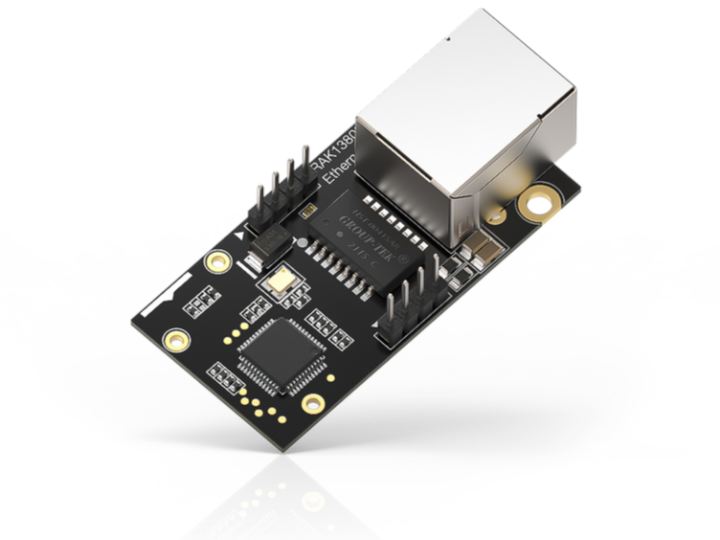

Introduction RAK13800 is a WisBlock Ethernet board based on WIZnet W5100S which extends the WisBlock system to have ethernet interface compatibility. It supports 10BaseT and 100BaseT Ethernet transfer speeds. Optional (coming in 2022 Autumn Launc Event) it supports PoE (Power over Ethernet) to supply the WisBlock modules. Feature Based on WIZnet W5100S-L chip Support Hardwired Internet protocols Support four independent SOCKETs simultaneously Support SOCKET-less command Support Ethernet Power-down mode & Main Clock gating for power save Support WOL (Wake on LAN) over UDP SPI Host Interface…
