[RE] Industrial Shields 10 I/Os PLCs with ESP32

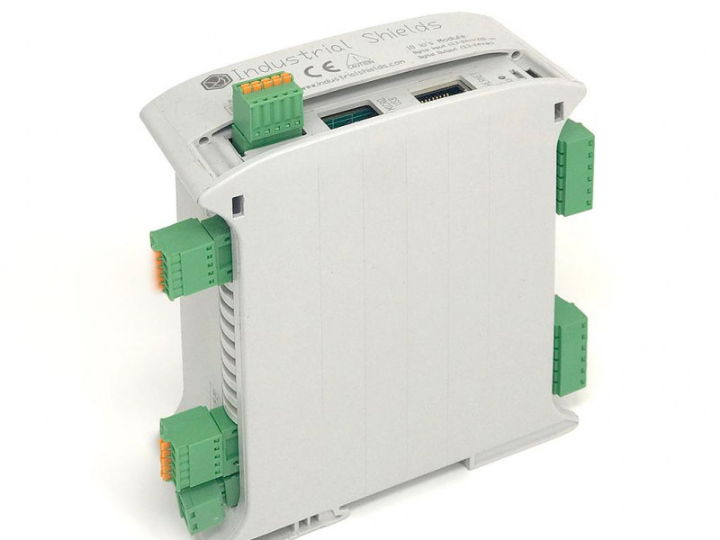

The Industrial Shields 10 I/Os PLCs with ESP32 is a versatile industrial programmable logic controller (PLC)
WIZnet - W5500
x 1
Introduction
The Industrial Shields 10 I/Os PLCs with ESP32 is a versatile industrial programmable logic controller (PLC) that combines the power of the ESP32 microcontroller with industrial-grade inputs and outputs. It offers several key features and functions, making it suitable for a wide range of industrial and IoT applications. In this presentation, we will analyze the Industrial Shields 10 I/Os PLCs with ESP32, including its features, functions, use cases, performance, cost, reliability, and other relevant factors. We will also provide example code that demonstrates how the product works and how it can be integrated into different systems, using the WIZnet chip and other relevant components.
Main Features and Functions
The Industrial Shields 10 I/Os PLCs with ESP32 offers several key features and functions:
10 I/Os: The device includes 4 digital inputs, 4 digital outputs, and 2 analog inputs.
Industrial-Grade: The device is designed for industrial applications, with a rugged aluminum housing, DIN rail mounting, and industrial-grade inputs and outputs.
ESP32 Microcontroller: The device is powered by the ESP32 microcontroller, which provides Wi-Fi and Bluetooth connectivity, as well as processing power for industrial applications.
WIZnet W5500 Chip: The device includes the WIZnet W5500 chip, which provides Ethernet connectivity and enables communication with other devices over the internet.
WIZnet Chips
The Industrial Shields 10 I/Os PLCs with ESP32 uses the WIZnet W5500 chip to provide Ethernet connectivity, which enables communication with other devices over the internet. The WIZnet W5500 chip is a crucial component of the device, as it provides stable Ethernet connectivity and ensures that communication with other devices over the internet is reliable.
