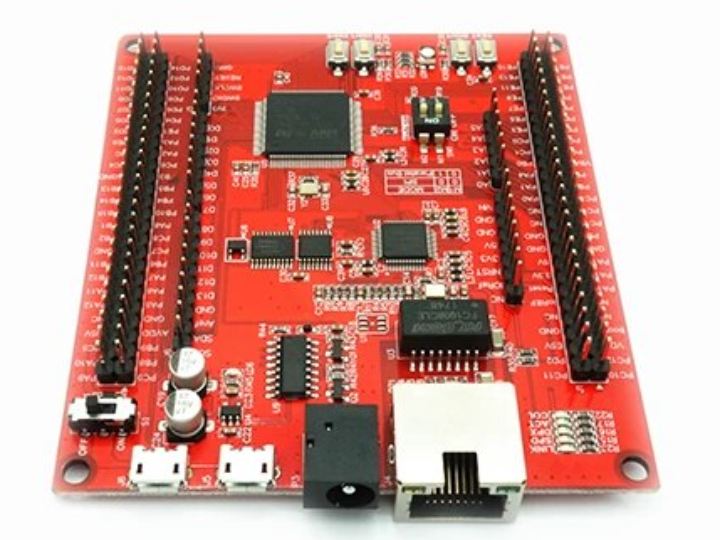

W5100S STM32 Development Board Hardware TCP/IP Protocol Stack Ultra W5500, W5100 Compatible

Components

Hardware components
W5100S

WIZnet - W5100S

x 1

Project description

Key Features



  1. 32-bit ARM Cortex-M3-based W5100S chip evaluation board
  2. Hardware pins compatible with Arduino Uno Rev.3
  3. Support 2 button switch(SW) 1 RGB LED
  4. 1 Port Ethernet Connector / USB Micro Type B Connector Supported
  5. Supported ISP and SWD interfaces
  6. Loopback, DHCP, DNS - provide a variety of application code.

Hardware Specifications

  1. MCU: STM32F103VCT6 Cortex-M3 (72MHz operating speed, 256 or 512KB Flash memory, 64KB SRAM)
  2. Ethernet: W5100S (WIZnet hardwired tcp/ip)
  3. Power supply: 5V DC power supply
  4. Expansion I/O: 80 GPIOs (including analog peripherals with 12-bit ADCs)
  5. RJ-45: Single-channel 10/100 Base-TX RJ-45 with channels (57-00013QL11-1/UDE)
  6. USB: USB Micro-B type (onboard USB to UART IC, USB bus powered/CP2104) - used for debugging
  7. On-board user I/F: 2xPush button switch, 1xRGB LED
