W5100S-EVB-Pico Basic Operation in Arduino Environment (DHT11, CDS, MQ2, Rain_Sensor, Ultrasonic)
Explore the basics of W5100S-EVB-Pico in Arduino IDE. Harness the power of DHT11, CDS, MQ2, Rain_Sensor, and Ultrasonic, for diverse IoT app
2
Components
Hardware components
WIZnet - W5100S-EVB-Pico
x 1
Controller (Can Anothor WIZnet Pico Board)
DFRobot - Gravity: DHT11 Temperature Humidity Sensor For Arduino
x 1
DFRobot - Gravity: Analog Gas Sensor (MQ2) For Arduino
x 1

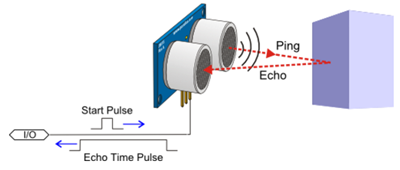

SparkFun - Ultrasonic Sensor - HC-SR04
x 1
Adafruit - Photo cell (CdS photoresistor)
x 1
Arduino - Raindrops module
x 1
Arduino - Arduino IDE
x 1
Project description

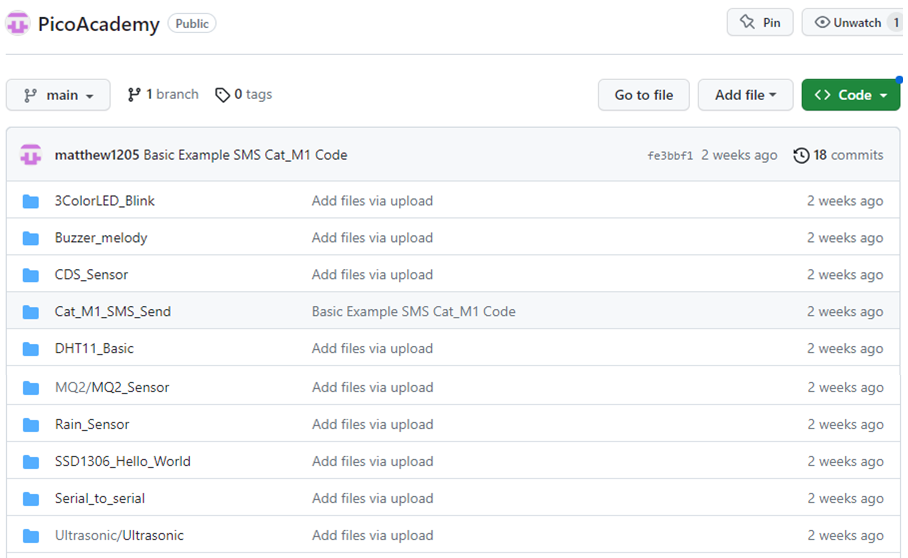

While there are numerous Arduino codes available for communication via the W5100S-EVB-Pico, there lacks a consolidated library or project featuring examples for various sensor applications. This prompted the creation of sensor examples like DHT11, CDS, MQ2, Rain_Sensor, and Ultrasonic. This work aims to provide a valuable resource for those interested in operating these sensors through Arduino code. Each example has been shared on Github, offering an easy-to-follow guide to kick-start your own projects. Check out the links below for a more in-depth look at each example and start integrating…
