주파수 혼선 없는 무선탈리 만들기 시리즈 (Create a 2.4GHz wireless tally)

This project shows a wireless controller between tally light devices and user ATEM tool

lawrence

Published August 30, 2022 · © MIT license (MIT)

145 UCC

9 WCC

19 VAR

Original author: 니나농 · South KoreaOriginal source (new tab)

주파수 혼선 없는 무선탈리 만들기 시리즈 (Create a 2.4GHz wireless tally)

Components

Hardware components
WIZ850io

WIZnet - WIZ850io

x 1

Grove - OLED Display 1.12'' V2

Seeed Studio - Grove - OLED Display 1.12'' V2

x 1

Nextion NX4024T032 - Generic 3.2" HMI TFT Intelligent LCD Touch Display Module

ITEAD - Nextion NX4024T032 - Generic 3.2" HMI TFT Intelligent LCD Touch Display Module

x 1

Project description

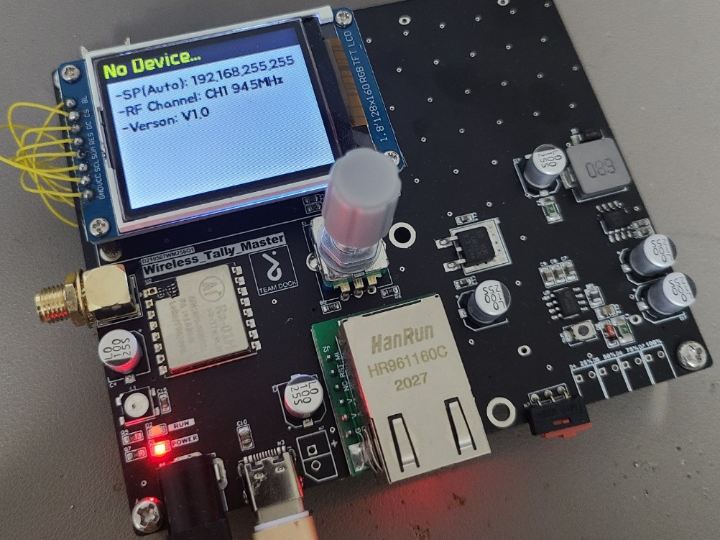

This is a wireless tally lighting control board production project spanning a total of 5 postings. Tally light is a small signal-lamp on a professional video camera or monitor. It is usually located just above the lens or on the electronic viewfinder and communicates, for the benefit of those in front of the camera as well we the camera operator, that the camera is 'live' - i.e. its signal is being used for the 'main program' at that moment (by WIKIPEDIA, https://en.wikipedia.org/wiki/Tally_light) Tally Controller is connected to ATEM switcher (Multi camera production switcher). ATEM…
