[WIZnet - W5300] 오디오 스펙트럼 표시

audio equalizer

jaden

Published June 01, 2023

135 UCC

Original author: chcbaram · South KoreaOriginal source (new tab)

Components

Hardware components

WIZnet - W5300

x 1

This blogger is posting a detailed step-by-step process of creating an IoT speaker using the W5300.

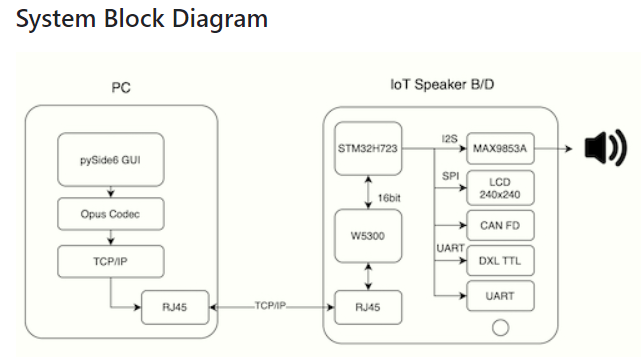

The system block diagram is as follows.

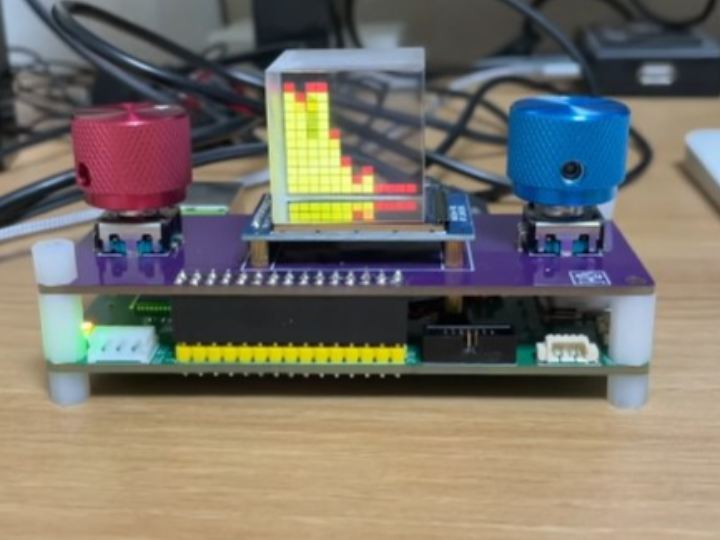

They have implemented not only the speaker functionality but also a spectrum equalizer that synchronizes with the audio sound.

They have also organized the hardware and software files on GitHub for easy reference by other users.

A demo video is available to showcase the project.

Wiznet's W5300 RP2040 demo on wire-wrap board

Wiznet's W5300 RP2040 demo on WIZ5300-RP2040 connector

Interfacing with a W5300 for network capabilities and a DAC for audio functionalities

stm32h7-w5300-dac

This project is to obtain camera images and transmit camera images over the network using the W5300, which enables high-speed network communication.

[Recuration]Network Camera Using W5300

TMS320F28335 - W5300 MACRAW를 이용한 EtherCat Test

[Re-curation]TMS320F28335 - W5300 MACRAW를 이용한 EtherCat Test

This document is a WIZnet Ethernet Chip design reference. It contains PCB design references using W5100, W5300, W5500, W7500, and W7500P.

Wiznet W5100 Ethernet Design Guide User Guide

This is a verilog FSM project for controlling Wiznet W5300 IC using SiPeed TangNano 9k FPGA and TOE Shield board.
