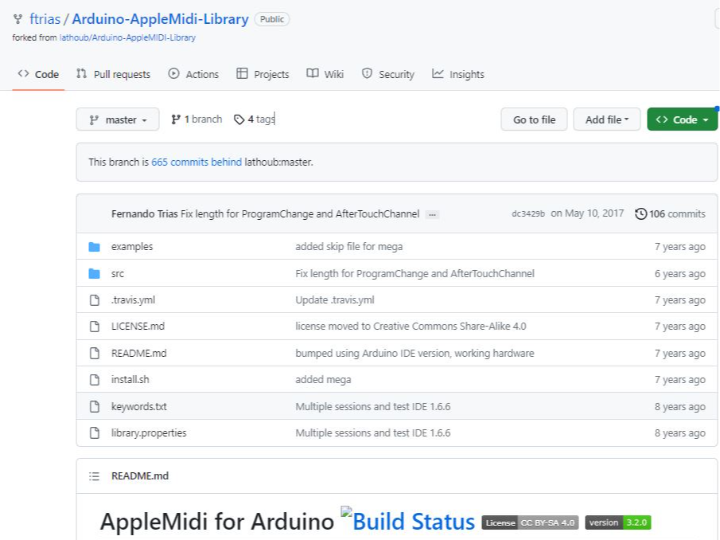

AppleMidi for Arduino

The goal of this library is to enable an Arduino (with an Ethernet shield) or ESP8266 to particpate in an AppleMIDI session.

Features

• Tested with AppleMIDI on Mac OS and using rtpMIDI from Tobias Erichsen on Windows
• Send and receive MIDI commands
• Uses callbacks to receive MIDI commands (no need for polling)
• Automatic instantiation of AppleMIDI object (see at the end of 'AppleMidi.h')

Basic Usage

#include "AppleMidi.h"

APPLEMIDI_CREATE_DEFAULT_INSTANCE();

void setup()
{
  // ...setup ethernet connection
  AppleMIDI.begin("test"); // 'test' will show up as the session name
}

void loop()
{
  AppleMIDI.run();
  // ...

  // Send MIDI note 40 on, velocity 55 on channel 1
  AppleMIDI.noteOn(40, 55, 1);
}

More usages in the examples folder

Hardware

• Arduino/Genuino (Mega) (Uno and Arduino Ethernet don't have enough memory)
• ESP8266 (Adafruit HUZZAH ESP8266, Sparkfun ESP8266 Thing Dev)
• Teensy 3.2
• Adafruit Feather M0 WiFi - ATSAMD21 + ATWINC1500

Network Shields

• Arduino Ethernet shield (arduino.cc, Wiznet W5100)
• Arduino Wifi R3 shield (arduino.cc)
• Teensy WIZ820io W5200

Arduino IDE (arduino.cc)

• 1.8.0

Contributing

I would love to include your enhancements or bug fixes! In lieu of a formal styleguide, please take care to maintain the existing coding style. Please test your code before sending a pull request. It would be very helpful if you include a detailed explanation of your changes in the pull request.
