3D Laser Radar: "Cloud Motion" work with "Cloud Pixel"

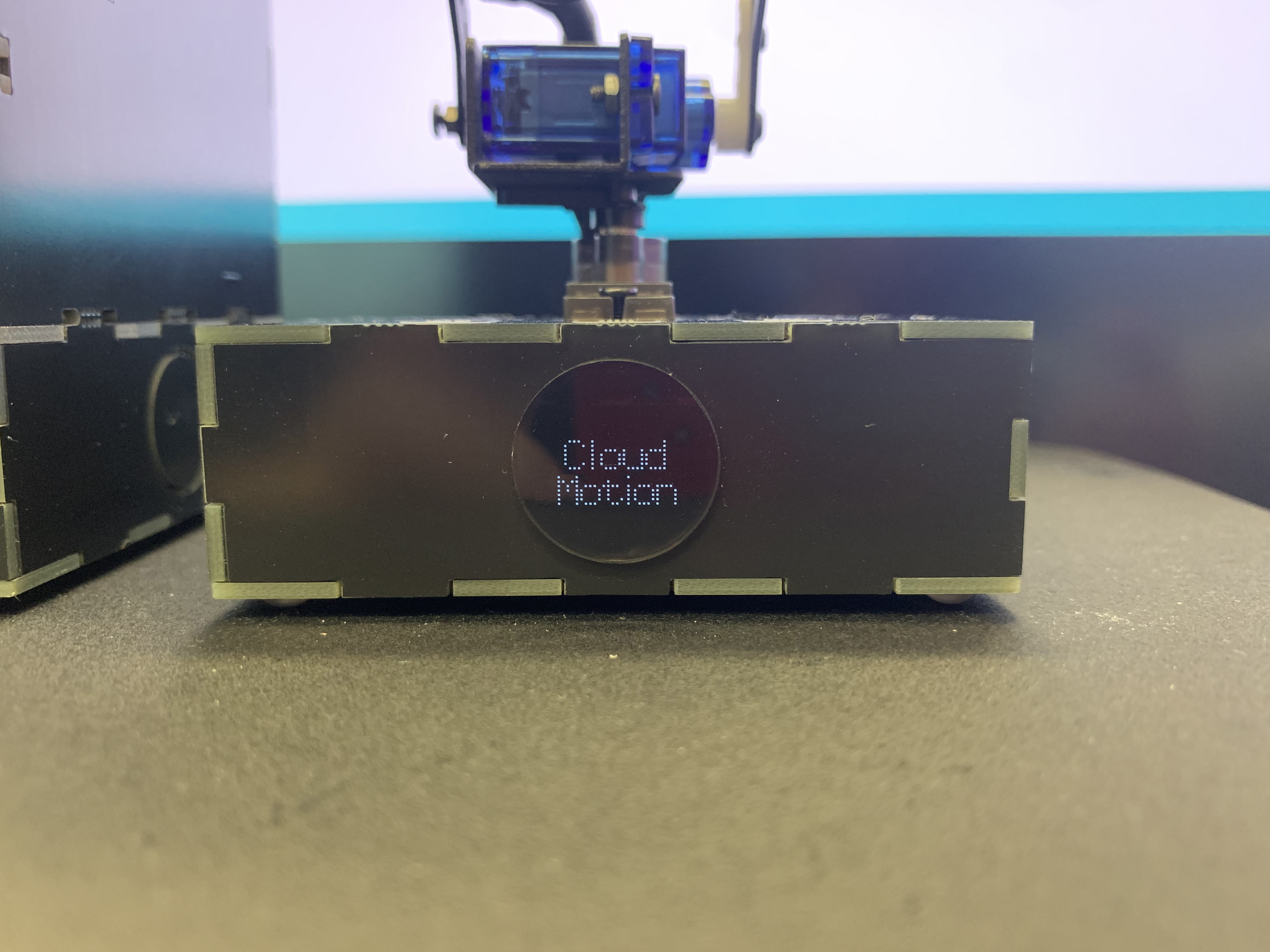

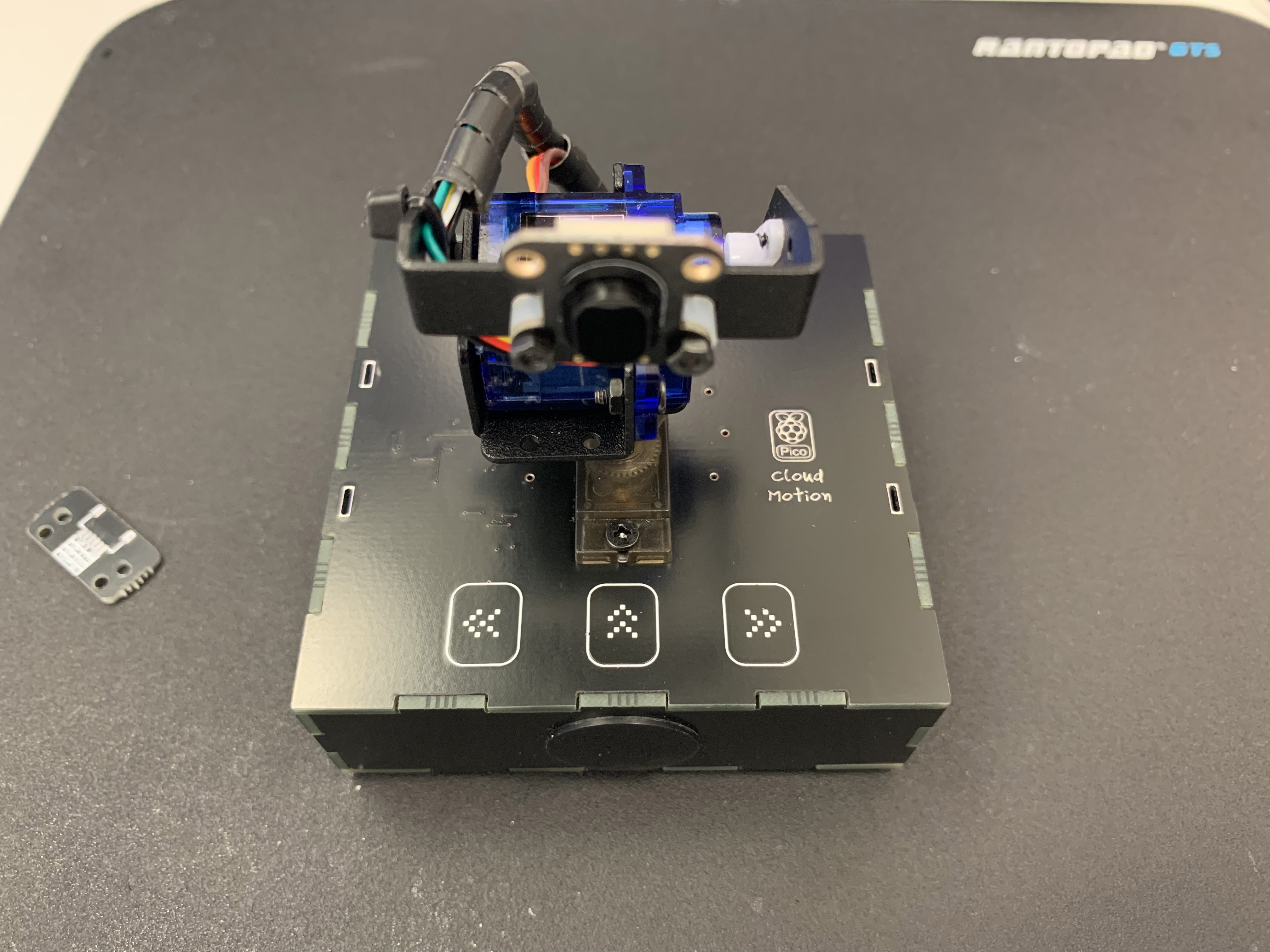

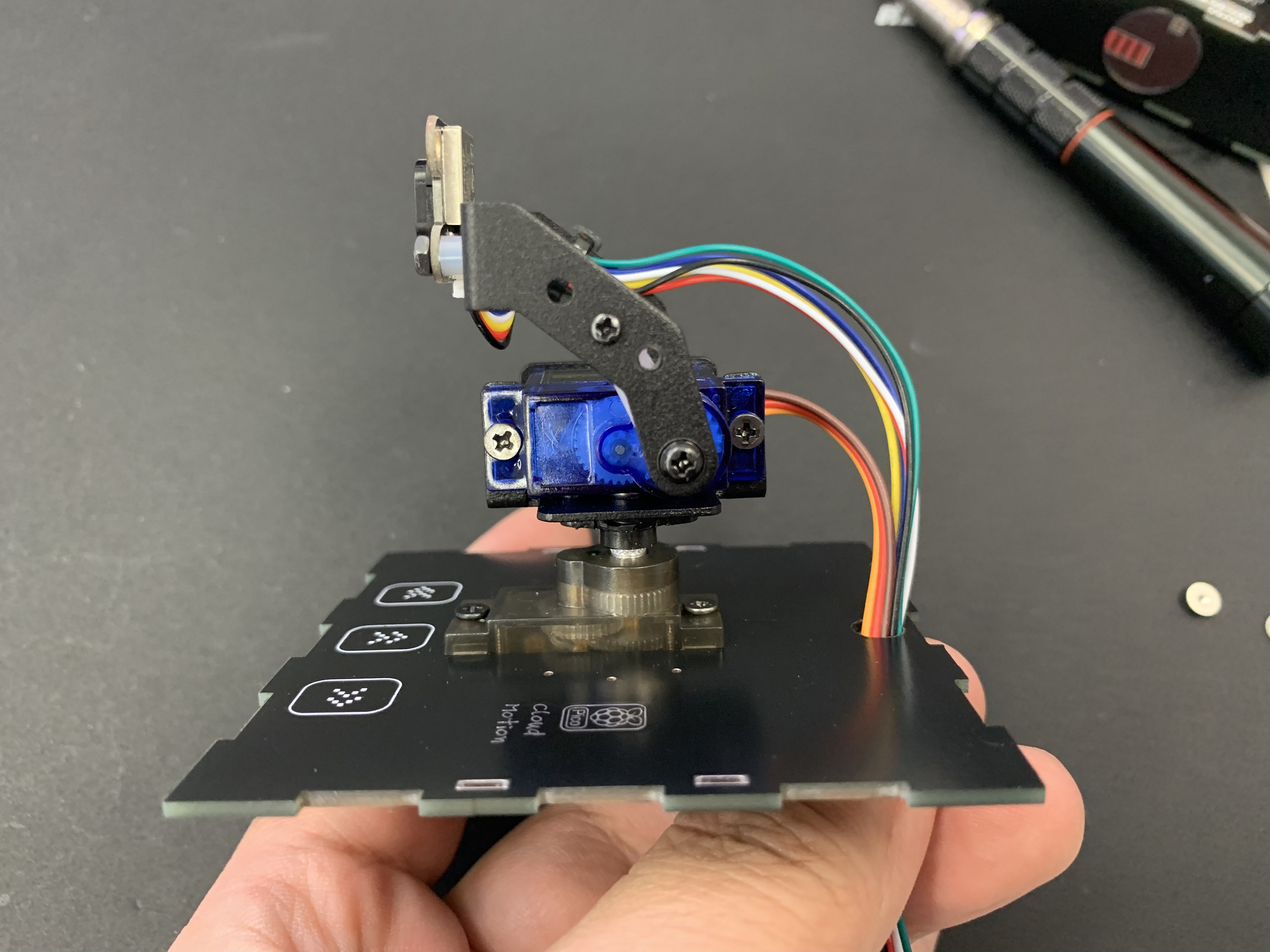

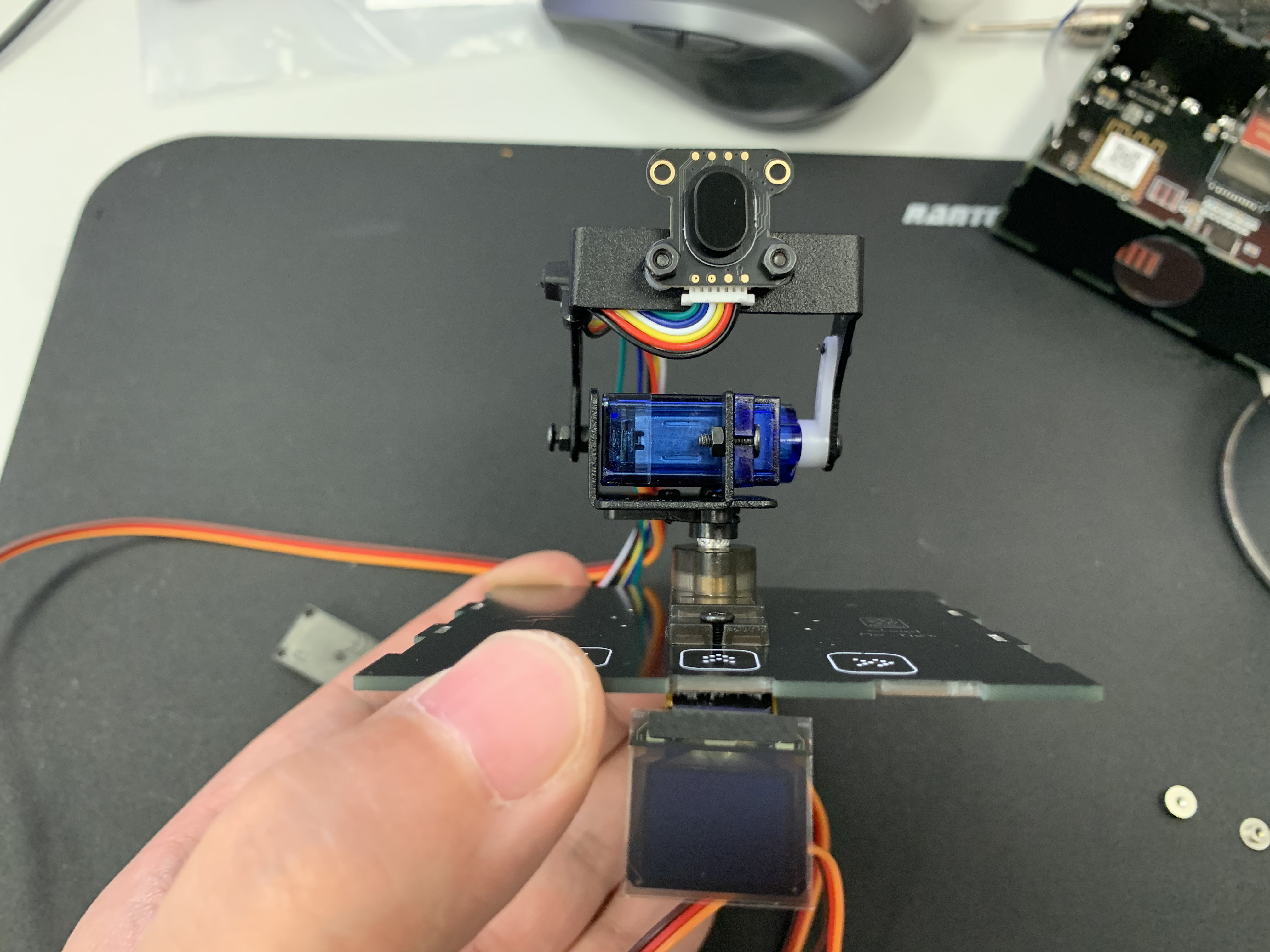

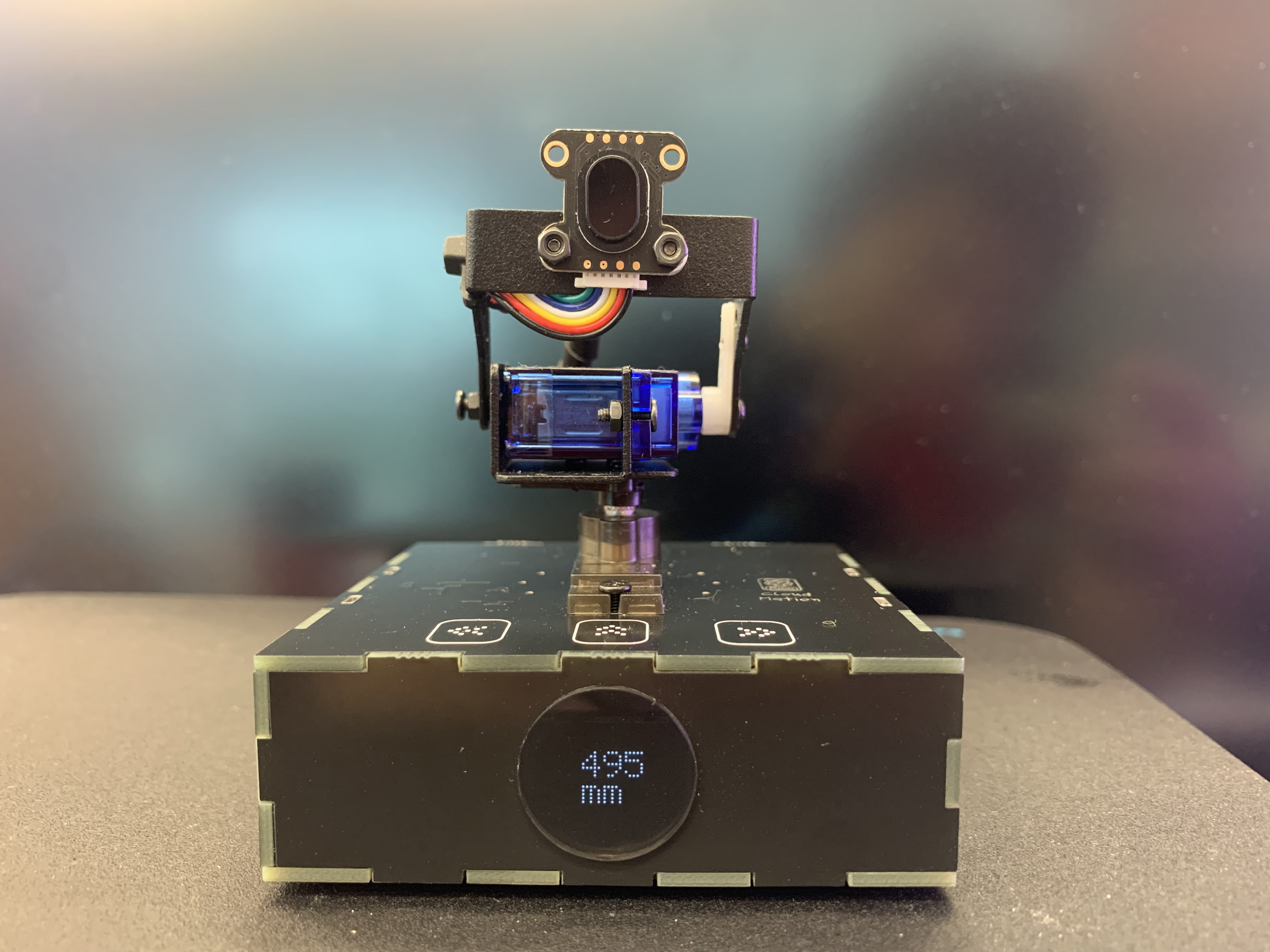

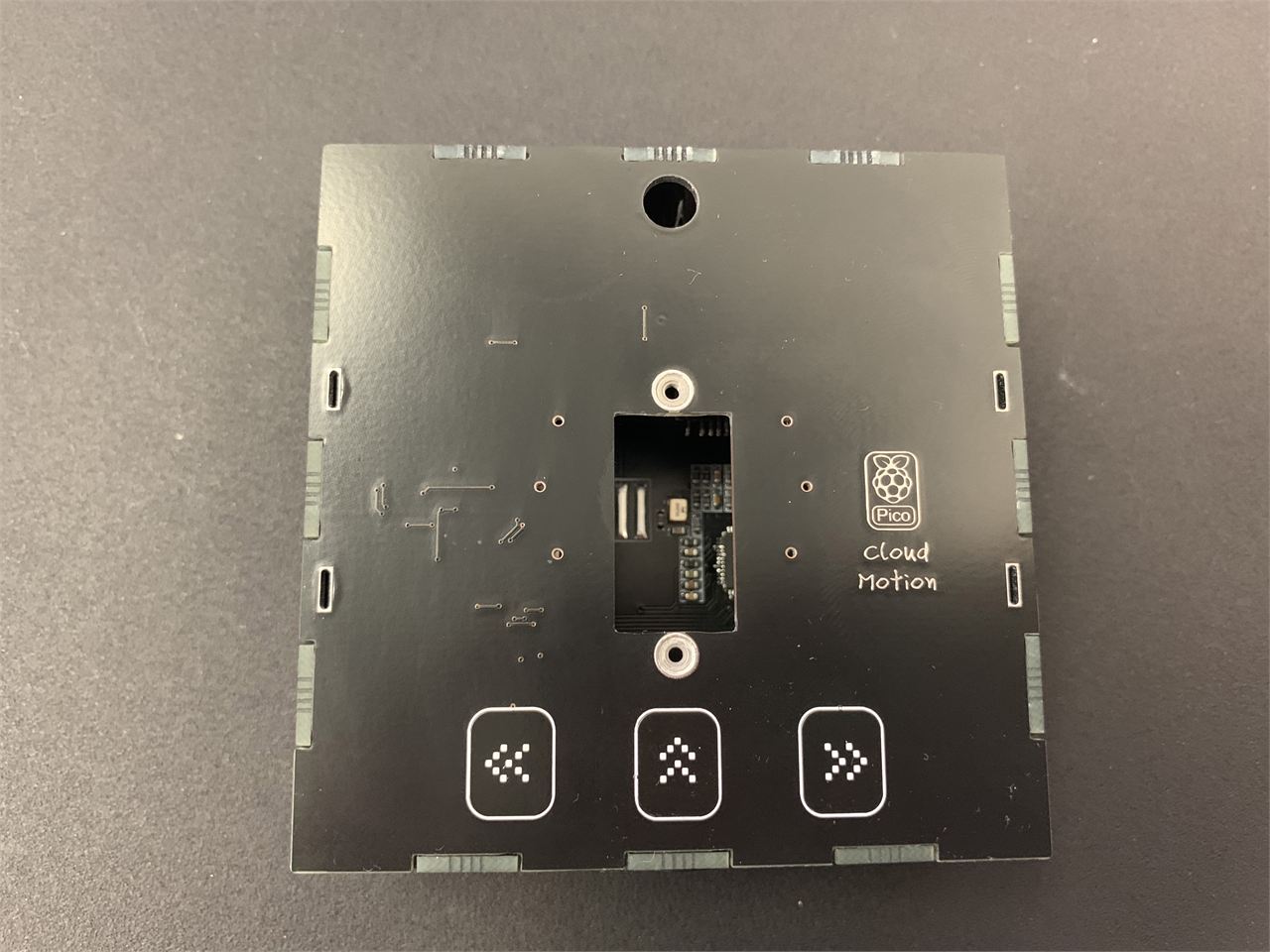

Cloud Motion is a 2-degree-of-freedom network gimbal.3D Laser Radar is the first application on Cloud Movtion, which work with Cloud Pixel.
8
Components
Hardware components
WIZnet - W5100S
x 1
WIZnet - WizFi360
x 1
Seeed Studio - Grove - OLED Display 1.12'' V2
x 1
Raspberry Pi - RP2040
x 1
Arduino - Arduino IDE
x 1
adafruit - Adafruit IO
x 1
OpenAI - ChatGPT
x 1
Project description

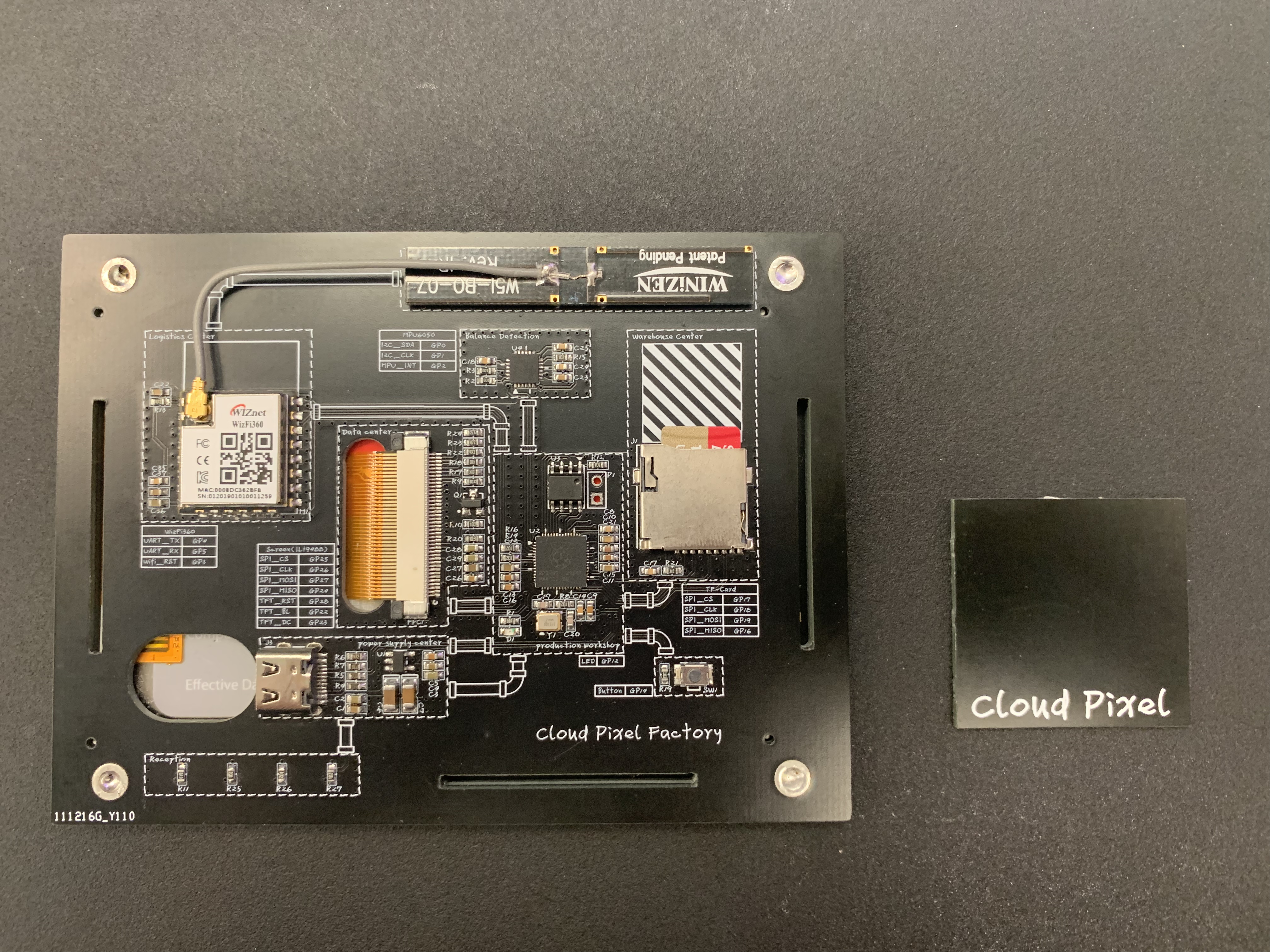

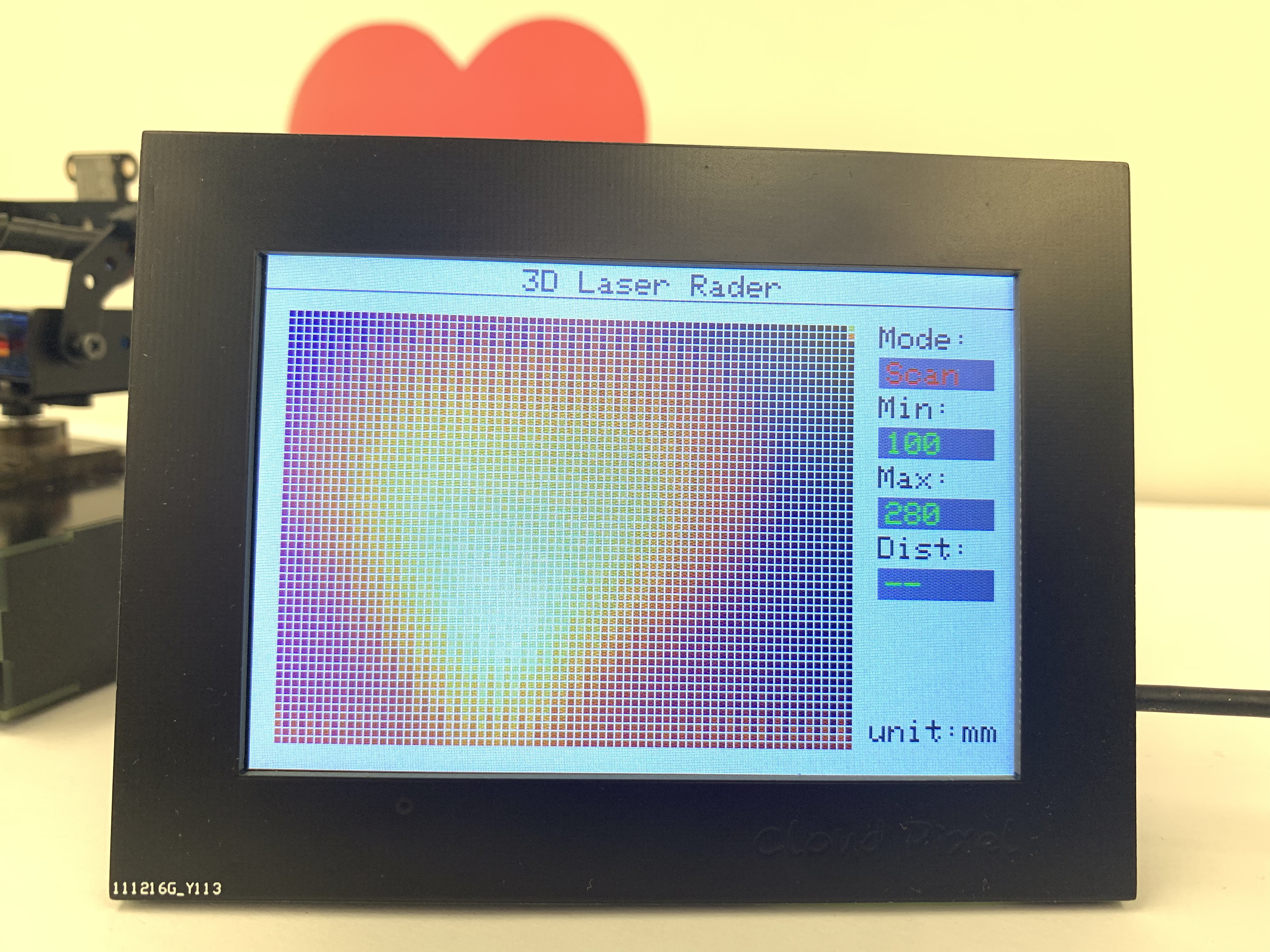

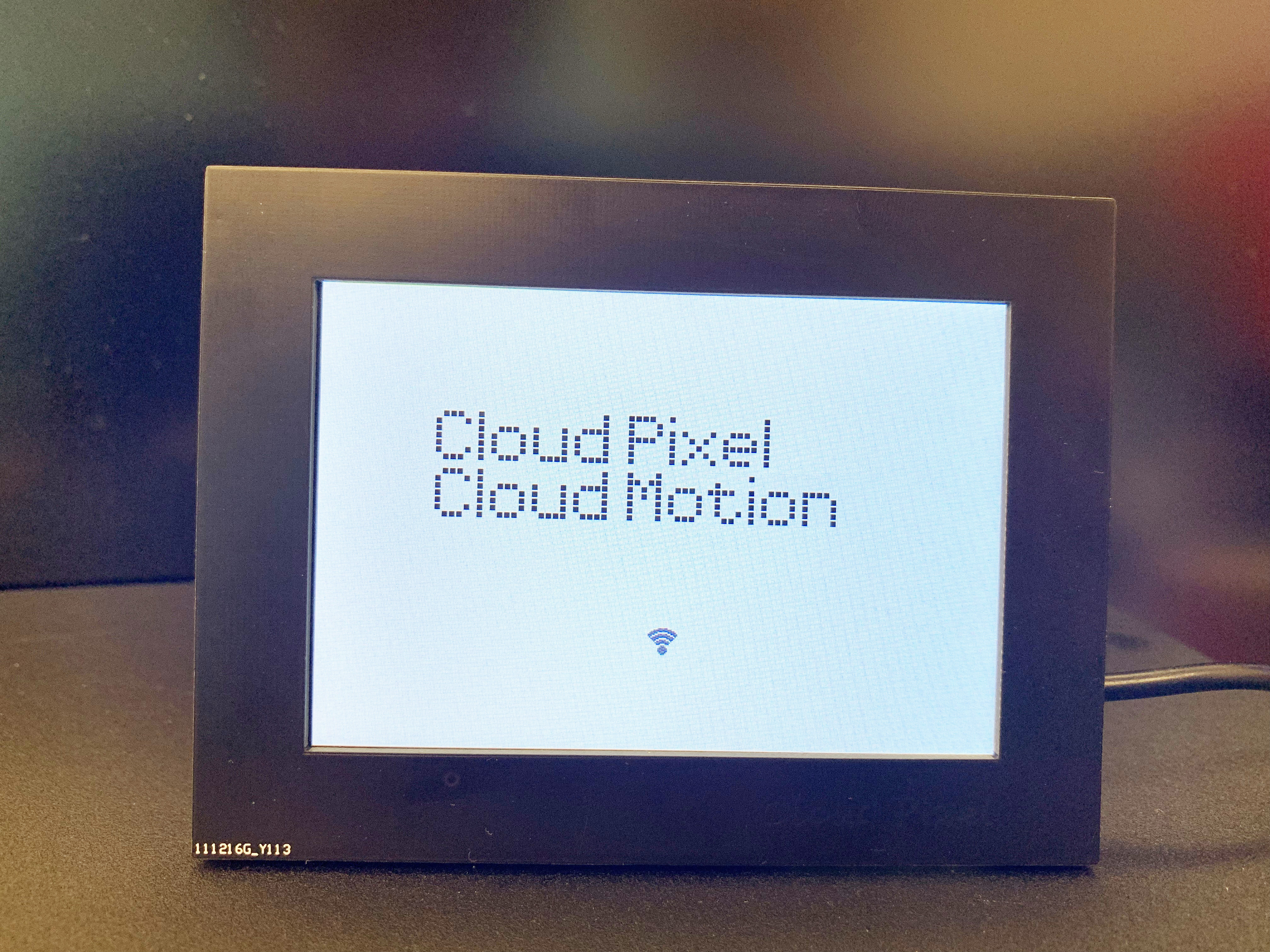

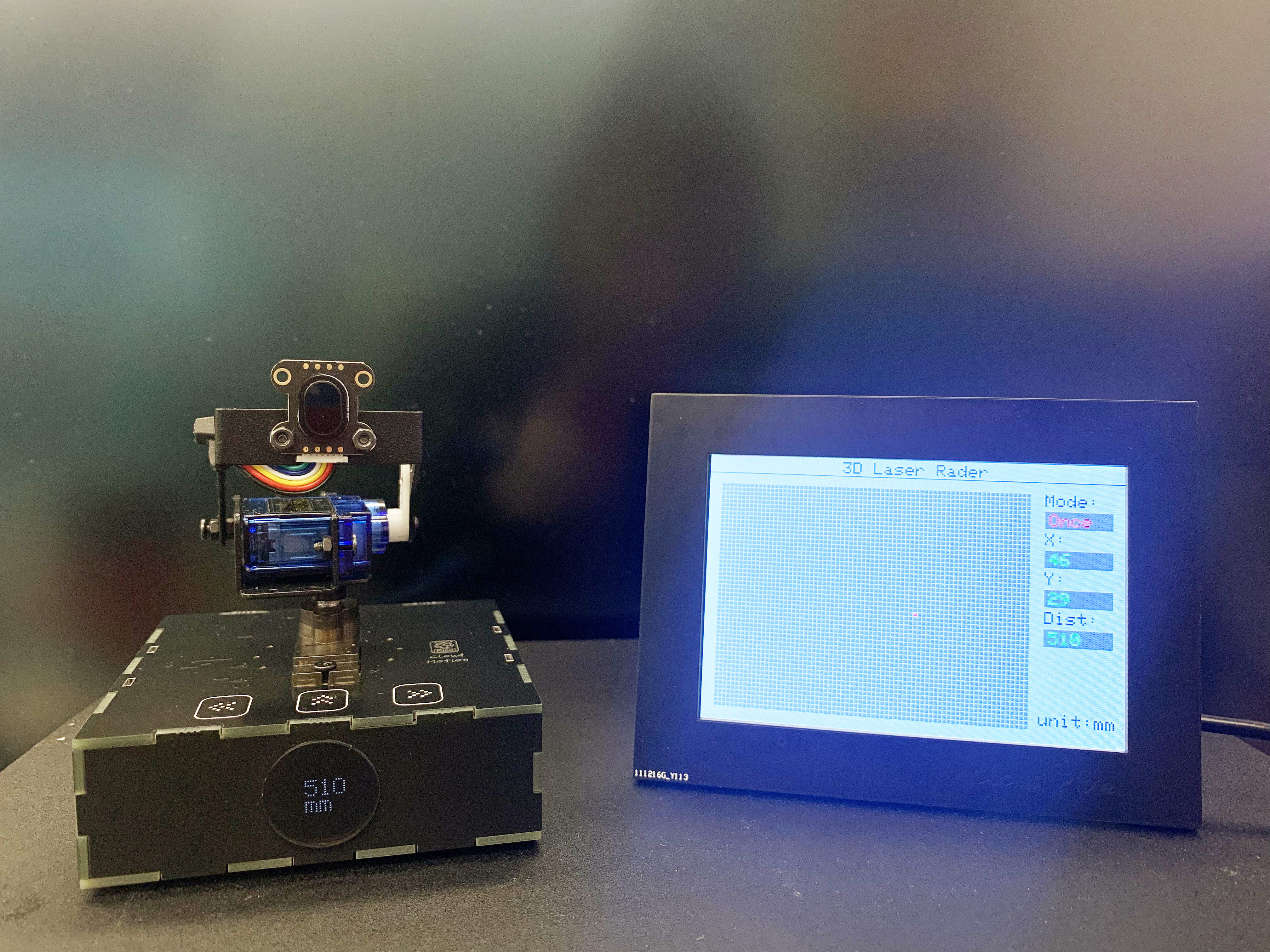

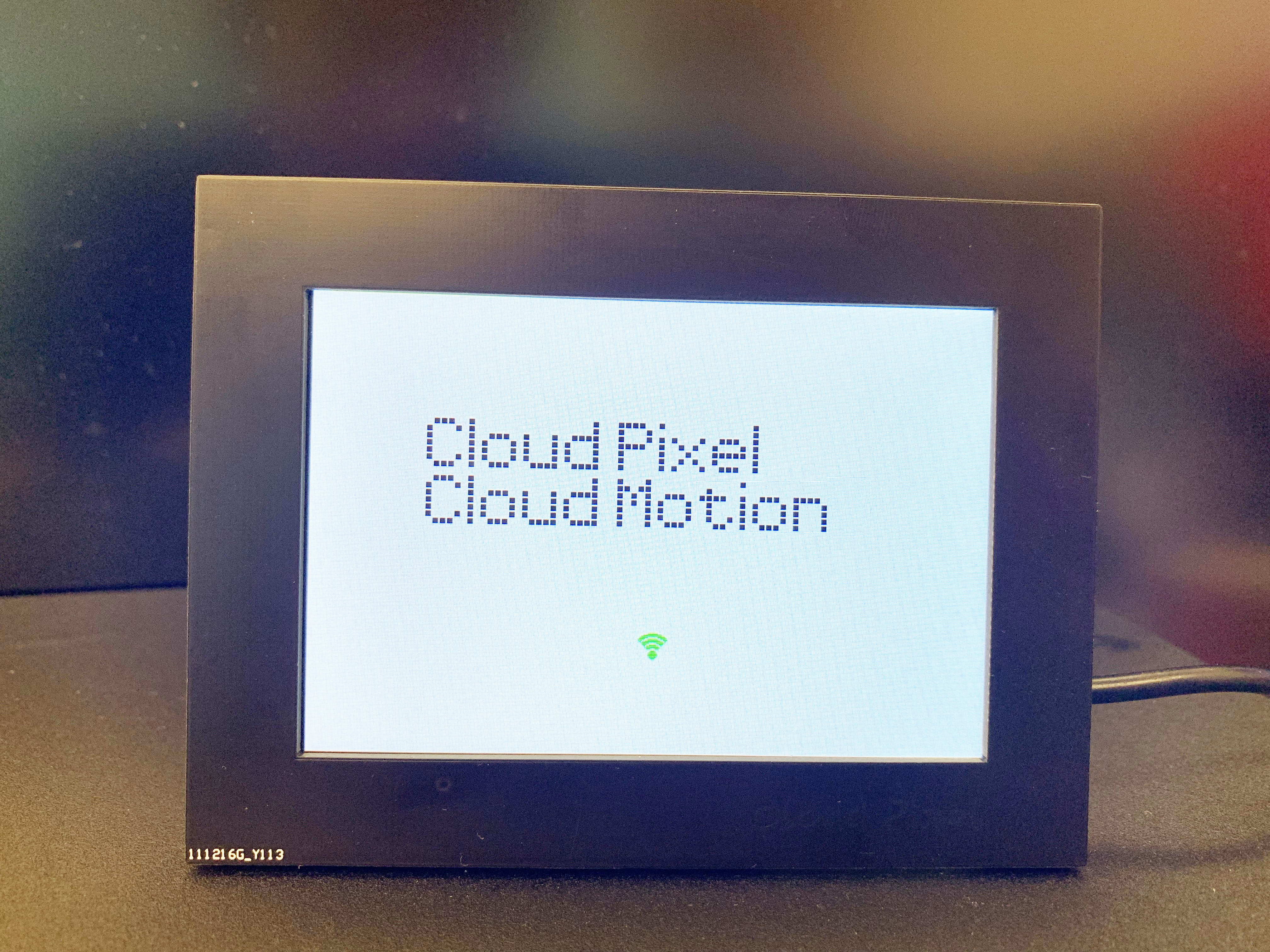

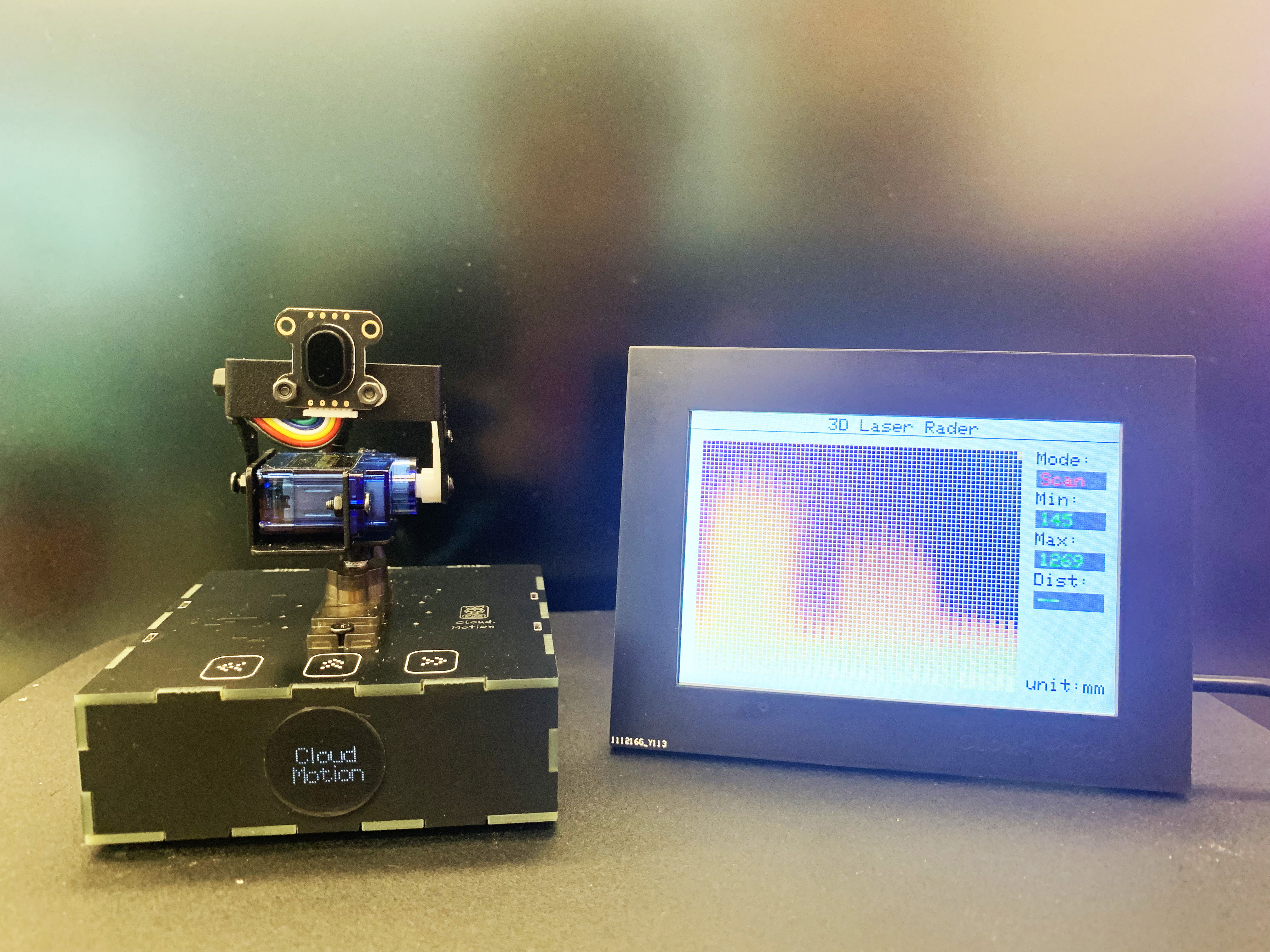

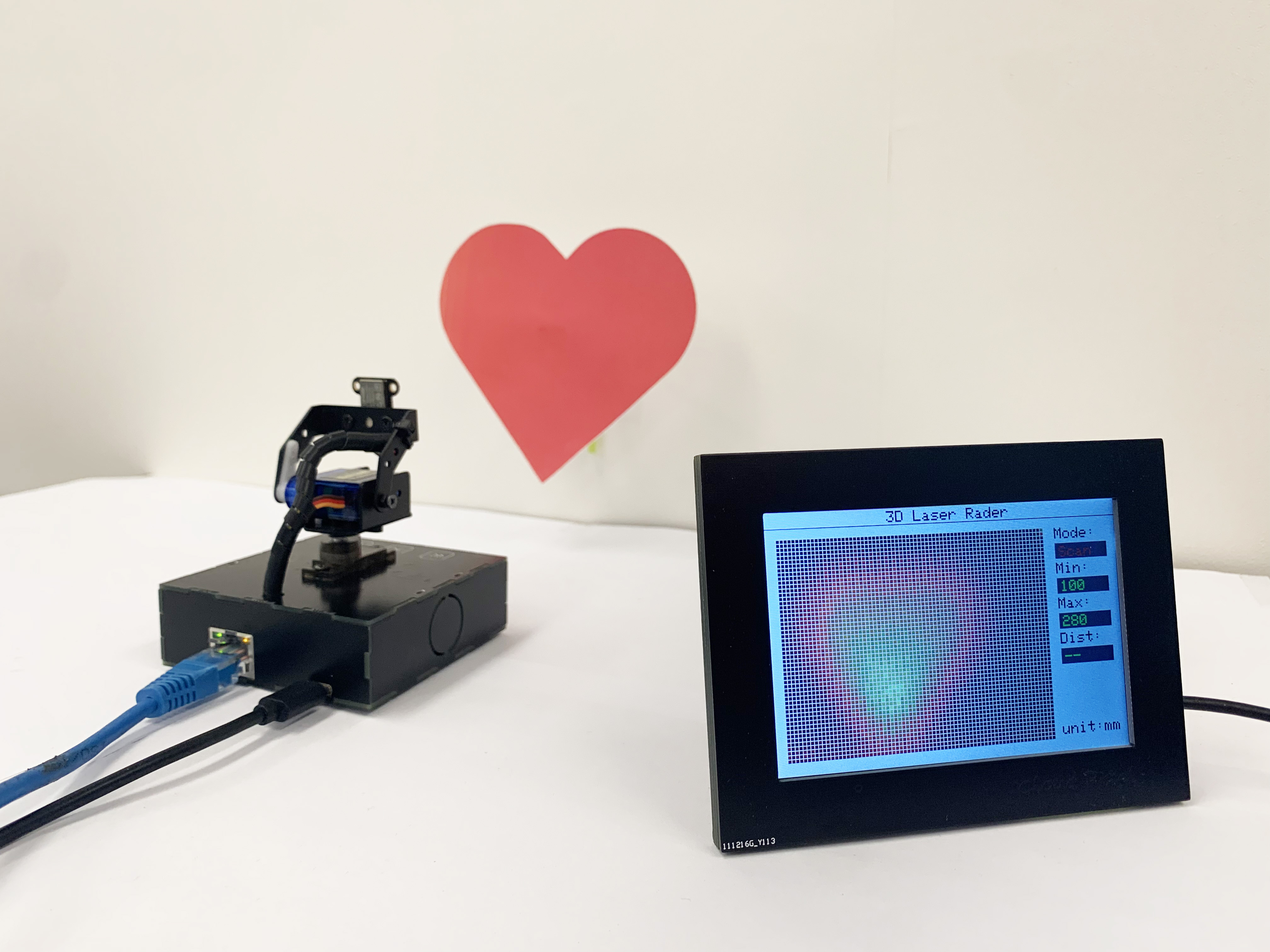

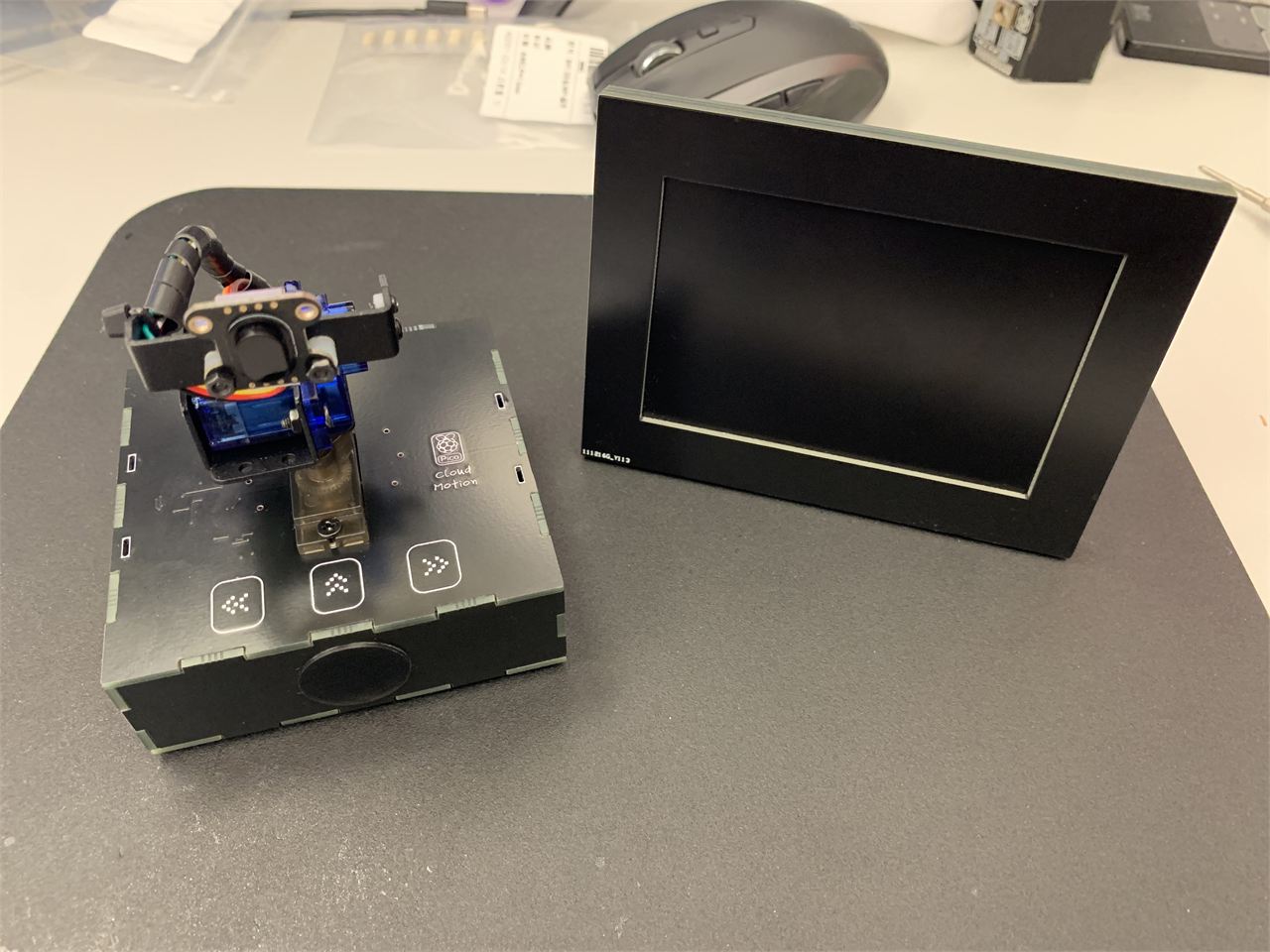

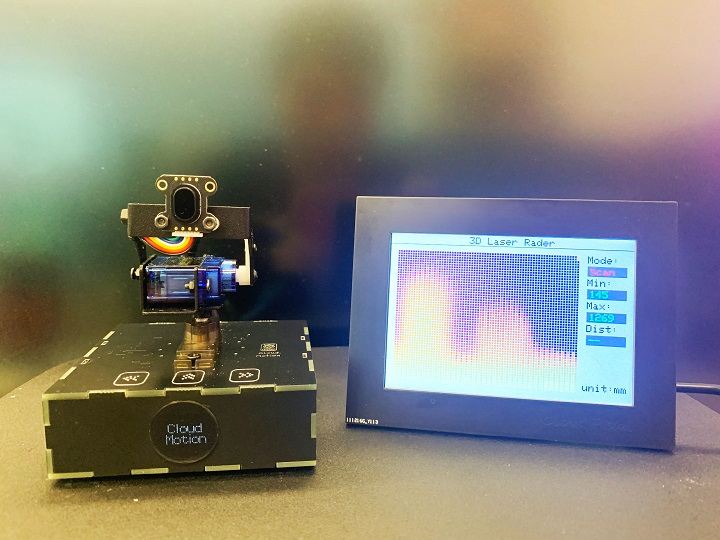

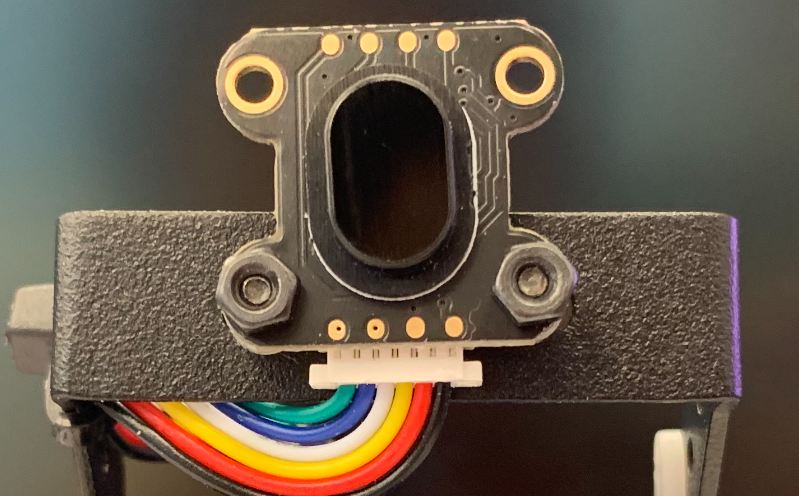

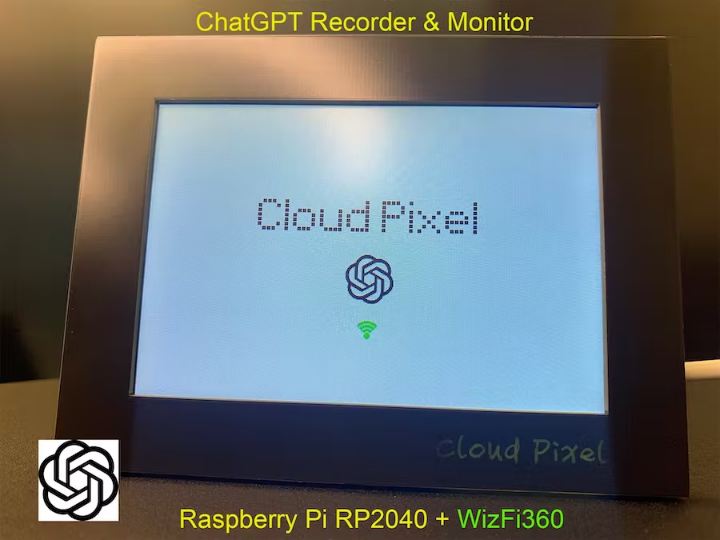

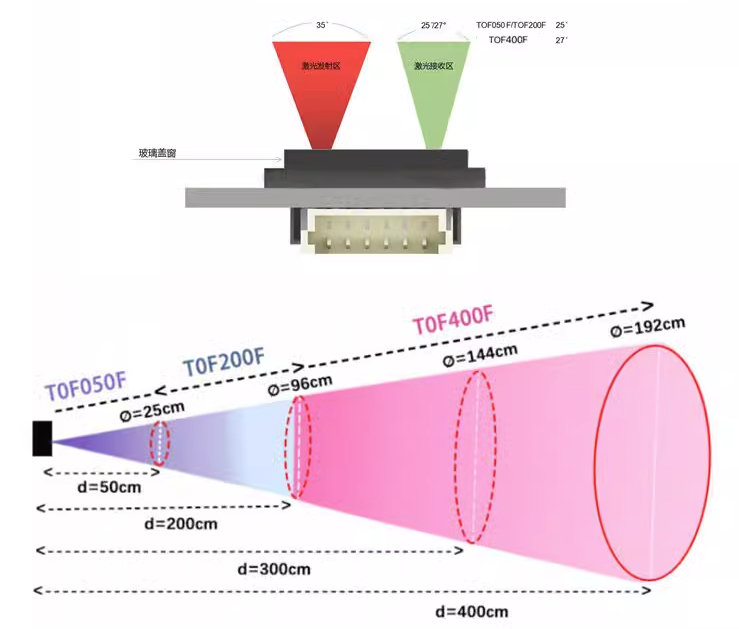

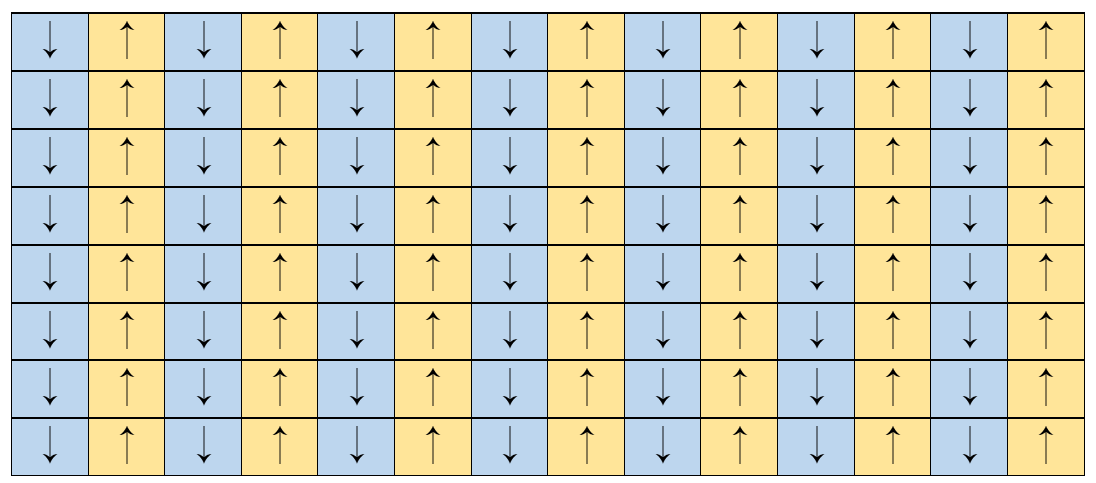

3D Laser Radar is the first application on Cloud Motion. Cloud Motion is a 2-degree-of-freedom network gimbal, It could dynamic scan around use laser which can get the distance, 3D Laser Radar performed through to form a 3D image containing distance information. "Cloud Pixel" can receive the distance information, convert and show on the screen. In my last WCC "3D Laser Radar Tower based on 2-degree-of-freedom network gimbal (POE+PICO)", I shared a 3D Laser Radar Tower which based on Raspberry Pi RP2040 and POE…
