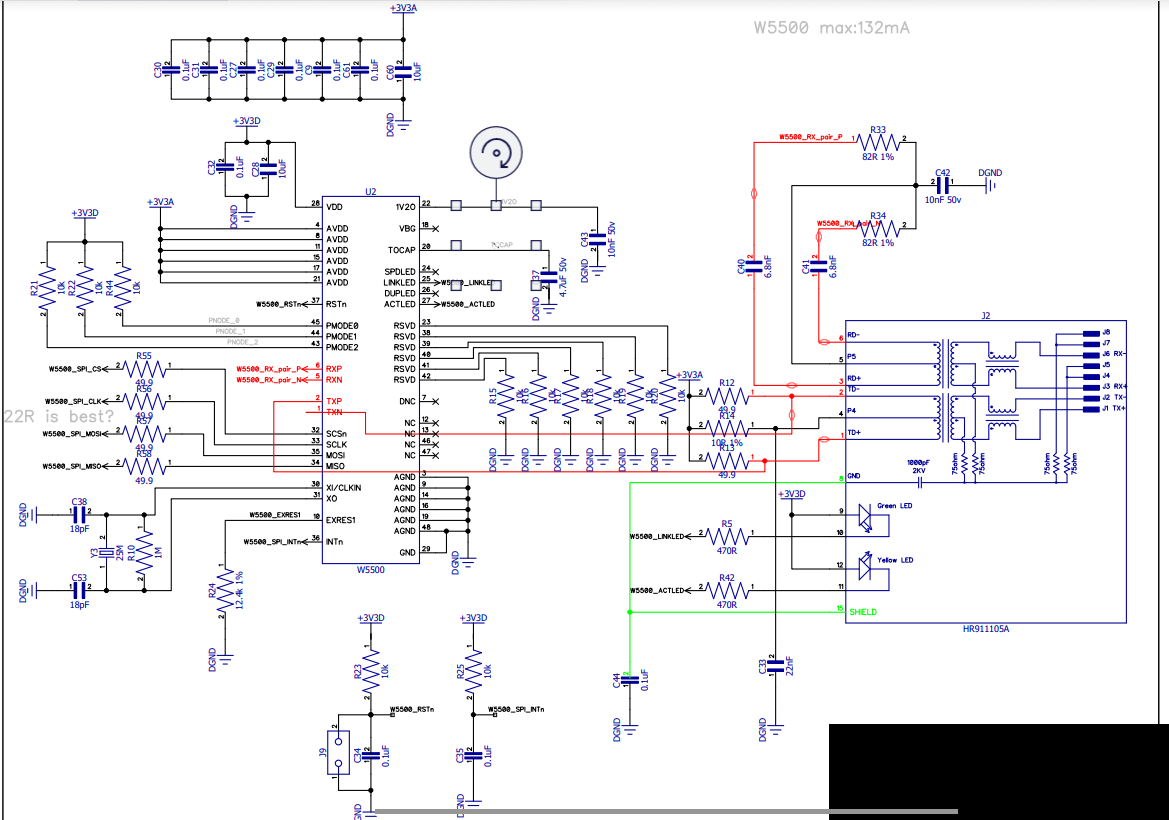

w5500 not working (circuit)
Ethernet Chips
Attachments
-
No replies yet. Be the first to reply.
Join the discussion.
Ethernet Chips
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: w5500 not working (circuit)
by WIZnet AI AI generated ·
RE: w5500 not working (circuit)
by tony_90 ·
At present, I think the problem is caused by the strict requirements of w5500 for crystal . I want to change to an active oscillator, but the official only says that the requirements of W5500 are: the active crystal oscillator inputs the clock signal through the XI/CLKIN pin, and the signal level requirement is 3.3V. Are there any requirements for the waveform? (square wave or sine wave) In addition, 3.3v is not detailed enough (active oscillator output has loss, usually 90% vdd) Is 3.3V the lowest judgment voltage value of high level?
Thank you
RE: w5500 not working (circuit)
by Alan WIZnet ·
Hello, I'm Alan.
Please remove 49.9 ohms connected to SPI.
