RE: [W5500] 간헐적 ACK 미송신 문제
by jaden WIZnet ·
안녕하세요.
자사 모듈이 아닌 직접 PCB를 제작하셨다면, 아트웍 문제도 있을 수 있으니
자사 HW Design Guide 확인하시어 알맞게 제작하셨는지 확인 부탁드립니다.(Hardware Design Guide | WIZnet Document System)

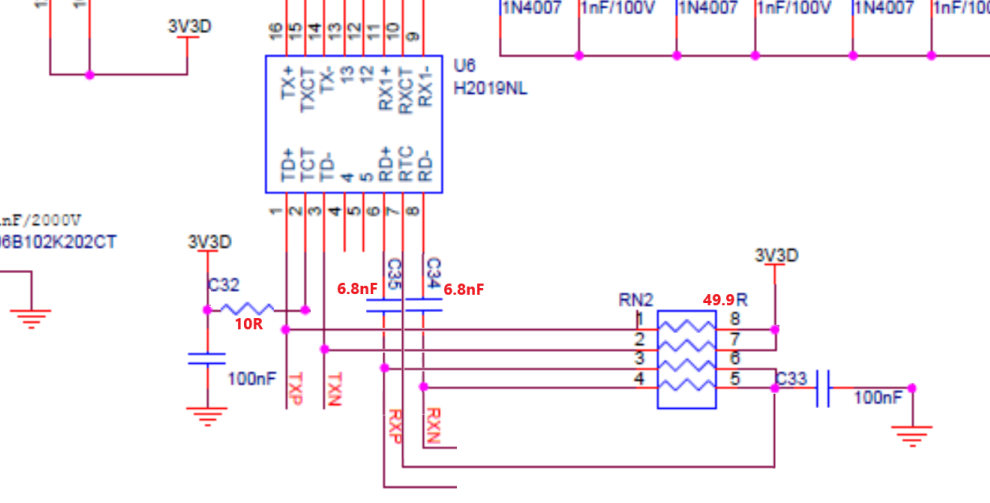

회로도의 경우
TCT, RTC 연결 및 RN2 value, C35,C34 위치 수정하여 첨부드리니, 확인하시고 Test 부탁드립니다.
