how W5500 memory map arranged?

Question

hi, dear developers! i can’t understand how arranged memory in W5500. there is code from official library W5500.c void wiz_send_data(uint8_t sn, uint8_t *wizdata, uint16_t len) { uint16_t ptr = 0; uint32_t addrsel = 0; if(len == 0) return; ptr = getSn_TX_WR(sn); //M20140501 : implict type casting -> explict type casting //addrsel = (ptr << 8) + (WIZCHIP_TXBUF_BLOCK(sn) << 3); addrsel = ((uint32_t)ptr << 8) + (WIZCHIP_TXBUF_BLOCK(sn) << 3); // WIZCHIP_WRITE_BUF(addrsel,wizdata, len); ptr += len; setSn_TX_WR(sn,ptr); } I calculate addrsel for all SOCKETs. It is socket0 H00224:L00016 socket1 H00224 L00048 socket2 H00224 L00080 socket3 H00224 L00112 socket4 H00224 L00144 socket5 H00224 L00176 socket6 H00224 L00208 i don’t understand, why behind sockets only (48-16=32) (80-48=32) (112-80=32) etc ? and buffer for TX must be 2kB.

alecksis · Answer

can anybody explain, how memory map work in w5500. with picture please. i try to understand memory arrange with library code. but it so difficult , it’s impossible !

jameskim · Answer

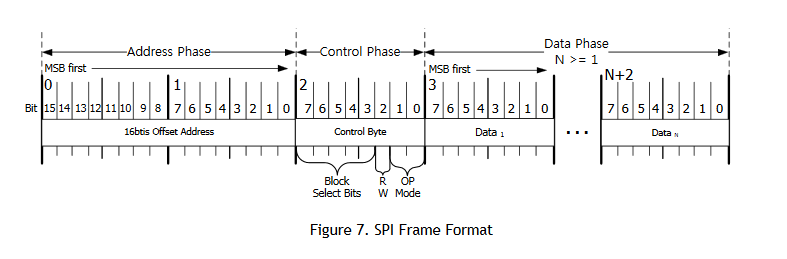

Hello, The address calculation equation is to make “address and control phase” in SPI Frame of W5500. The Address and Control Phase consists of two address bytes and one control byte. So, ptr was shifted left by one byte ((uint32_t)ptr << 8) and block select bits are shifted by 3 bits (WIZCHIP_TXBUF_BLOCK(sn) << 3) to make the control phase byte. In WIZCHIP_WRITE_BUF, Control Phase will be processed more. Screenshot_2018-11-02%20iEthernet%20W5500%20Datasheet%20kr%20-%20products%20w5500%20w5500_ds_v108e%20pdf787×259 11.4 KB Thank you. BR, James.
