Wiznet550se2 TX and RX route Impedance
Serial-to-Ethernet & ConfigTool
No replies yet. Be the first to reply.
Join the discussion.
Serial-to-Ethernet & ConfigTool
No replies yet. Be the first to reply.
Join the discussion.
Share projects and connect with makers.
Joined before the site update? first.
New to WIZnet Makers?
We sent a verification link to your address. Open it to activate your account, then log in.
Accounts from this email provider are reviewed by an administrator after verification. Approval usually takes one business day.
Already have an account?
Enter your email address. If it belongs to an account, we'll send a link to set a new password. Members who joined before the site update use this to set their password.
If an account uses that address, we sent a link to set a new password. The link works once and expires in 30 minutes.
Know your password?
Need an account?
RE: Wiznet550se2 TX and RX route Impedance
by Edward ·
Hi
What impedance information do you want?
The line must consist of 50R lines.
And because it is a differencial signal, the trace must match.

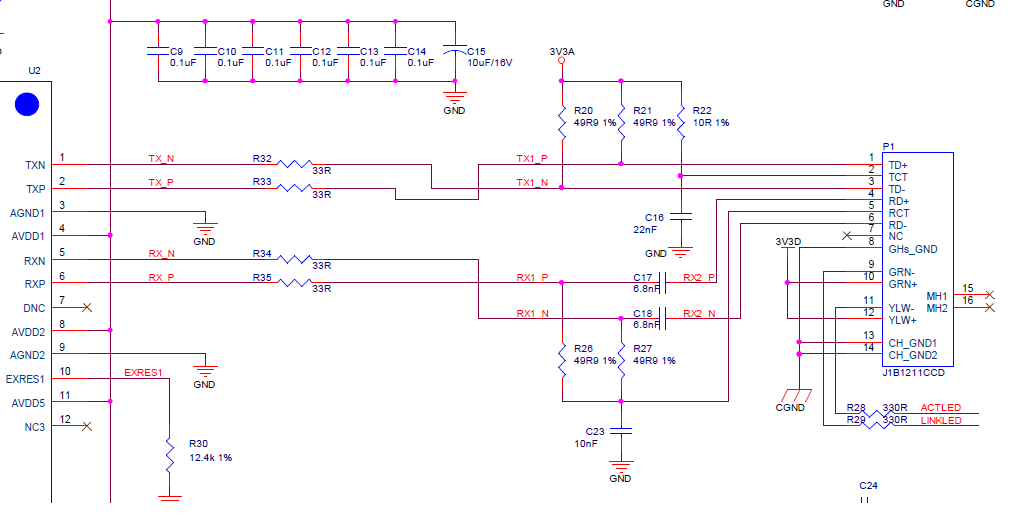

The circuit diagram includes an impedance matching circuit. (Circuit below)
Let the trace between W5500 and magnetic as short as possible, and keep the TX +/- (same as RX +/-) signal traces to be symmetry. The traces should not be too long and 12cm will be the maximum length of the path.
Thank you.
