How to Use W5300 TOE - Loopback

Components

Hardware components
W5300

WIZnet - W5300

x 1

Project description

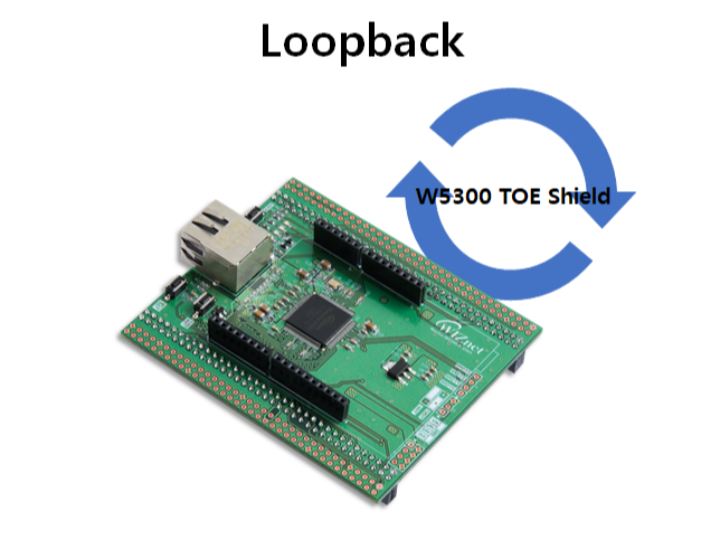

# Overview The W5300 TOE - Loopback example use W5300 TOE Shield - ethernet I/O shield compatible with STM32 Nucleo-144 board built on WIZnet's W5300 ethernet chip, and STM32 Nucleo-144 board. W5300 TOE Shield STM32 Nucleo-144 boards support the list below. NUCLEO-F207ZG NUCLEO-F429ZI NUCLEO-F439ZI NUCLEO-F722ZE NUCLEO-F756ZG NUCLEO-F767ZI And W5300 TOE - MQTT Publish & Subscribe example support two IDEs. ※ Please select and use the IDE according to the environment you are using. Board Example Description NUCLEO-F207ZG MDK-ARM C-based example implemented using MDK-ARM. STM32CubeIDE C-based…
