W5100SIO
W5100SIO module is the smallest functional module of Ethernet with the core of W5100S chip.
0
Components
Hardware components
WIZnet - W5100S
x 1
Project description
INTRODUCTION

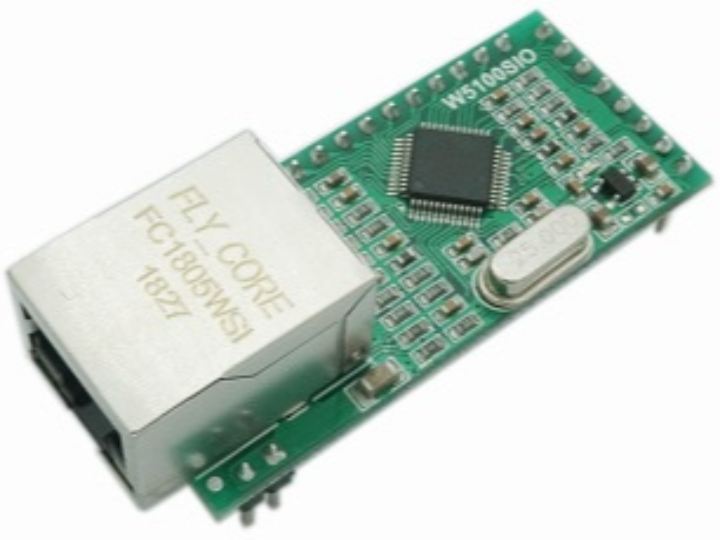

W5100SIO module is the smallest functional module of Ethernet with the core of W5100S chip. The module integrates Ethernet rj-45 interface, network transformer, LDO and so on. The main application is to facilitate customer evaluation of W5100S chip and rapid small batch trial production.
FEATURES
The characteristics of Full hardware TCP/IP stack -- support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols High-speed SPI host interface -- SPI mode: 0,3 -- SPI clock with a maximum of 70MHz 8-bit data parallel bus interface Bus mode: 8-bit indirect bus Support 4 independent hardware Socket simultaneous communication, communication efficiency does not affect each other Internal 16K byte transceiver cache for TCP/IP packet processing Support power off mode, network wake up Integrated 10BaseT / 100base-t Ethernet PHY Support automatic negotiation (full/half duplex, 10M/100M) Support automatic polarity conversion Network status indicator pin, including network speed indicator (10M/100M), data receiving/sending activity indicator, full/half duplex status indicator and PHY connection status indicator Working voltage 5V
