Rack32 ESP32 rack-mount controller with Ethernet
DIY rack-mount projects often require an Ethernet connection, a status display, power regulation, and other features that are not specific
1
Project description
Introduction

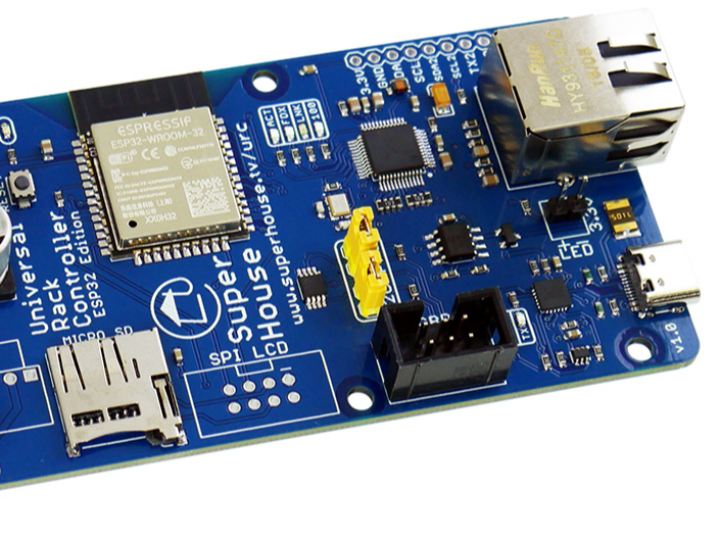

The Rack32 is a control board that helps you build your own rack-mounted projects for home automation, industrial automation, music, networking, or anything else that can take advantage of standard 19″ rack hardware. It is one component of the Universal Rack Controller project, which provides you with a framework for building your own rack-mount devices. The Rack32 comes in two versions. The regular “RACK32” version includes an onboard PCB antenna, which is convenient if you don’t care about WiFi performance and will connect to it via Ethernet or USB. The “RACK32E” version has a U.FL socket for an external WiFi antenna, which will allow you to have excellent WiFi performance even if your project is mounted inside a metal rack-mount enclosure. If you select the “RACK32E” version, you can pair it with the 2.4GHz / 5GHz Antenna with Lead for maximum performance even inside a metal enclosure.
Features
- ESP32 microcontroller with WiFi.
- 10/100Mbps Ethernet.
- Support for both DIY (12V) PoE and 48V 802.3af PoE.
- Pluggable terminal block for optional external DC power input.
- Automotive-grade voltage regulator for harsh electrical environments.
- 6-way IDC "I2C-Breakout" header for linking to other boards.
- 8-way IDC "SPI-LCD" header for connection to an LCD.
- USB-C connector for loading firmware.
- Auto power source selection between USB-C, PoE, and external DC.
- I/O header with power, 2 x I2C ports, and second hardware serial port.
- Micro SD card slot for config files, logs, and media storage.
- Onboard temperature sensor.
- Header for front-panel power LED.
- Can be built with onboard PCB antenna or external WiFi antenna.
