Lavritech Motherboard MB V7.1 socket 38pin

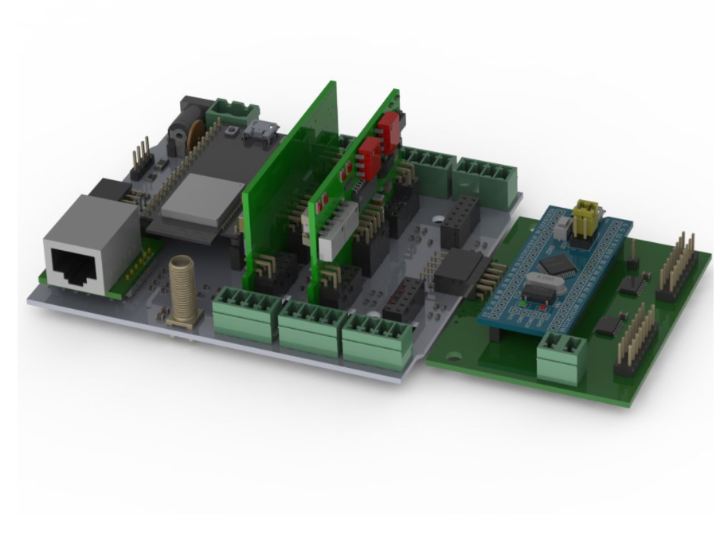

LavriBoard V7.1 board using the ESP32 DEVKIT-C module, W5500 Ethernet module, WirenBoard I2C modules based on PCP23008 port expanders

WIZnet

Published April 10, 2023

Original author: Lavritech · RussiaOriginal source (new tab)

Project description

Support for a family of development boards based on microcontrollers of esp32 family of the esp32-DevkitC form factor with a 38 pin connector, all esp32 pins are wired on this socket, which allows you to use its full functionality.
