HS-NM5300A

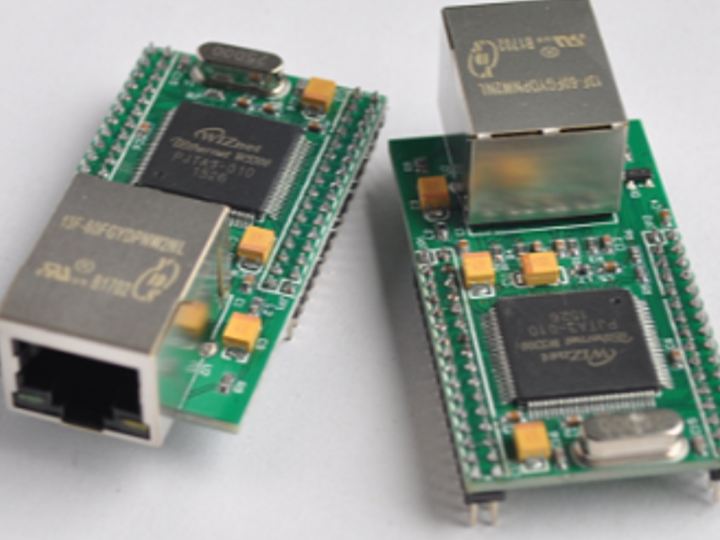

HS-NM5300A module is a product that integrates W5300 and necessary peripheral devices on a circuit board to provide customers applications

WIZnet

Published February 20, 2023

HS-NM5300A

Project description

INTRODUCTION HS-NM5300A module is a product that integrates W5300 and necessary peripheral devices on a circuit board to provide customers with convenient applications. FEATURES It maintains all the functions and performance of W5300; Lead the interface between W5300 and MCU and the power supply through the pin header; The RJ-45 seat has an internal integrated network transformer, and the network cable can be directly connected to the module; The indicator light on the RJ-45 can indicate the Ethernet connection status of W5300; DC 3.3V power supply; Strict aging test guarantees the high…
