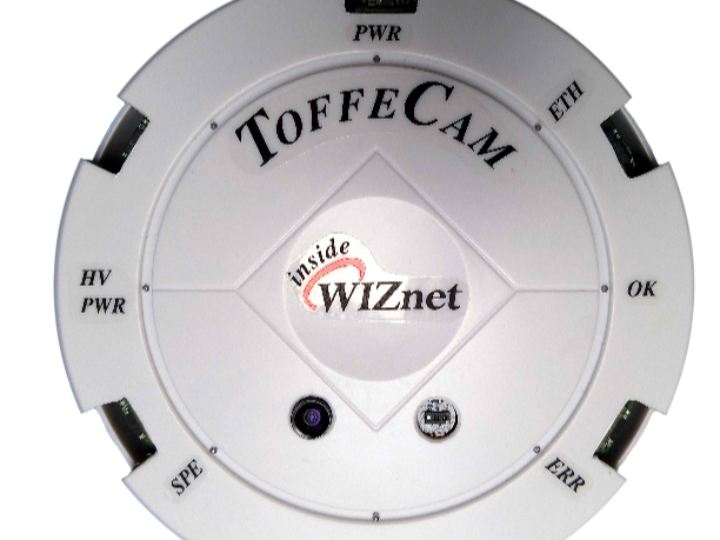

W5300 IP 3D Camera over Single Pair Ethernet

Project description

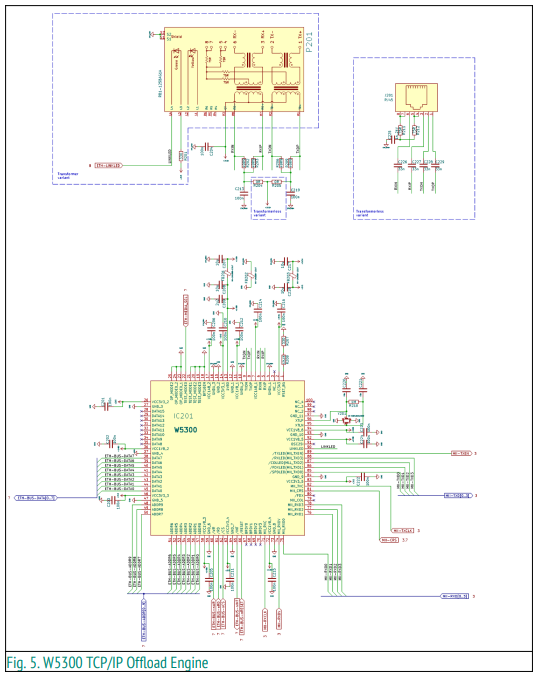

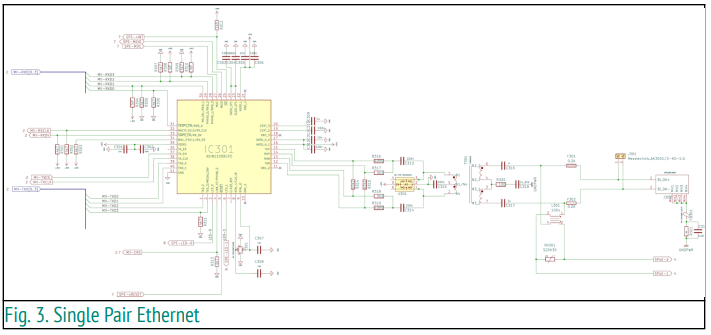

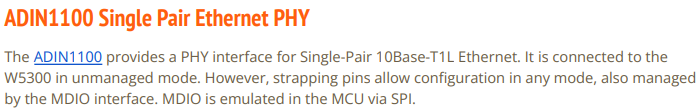

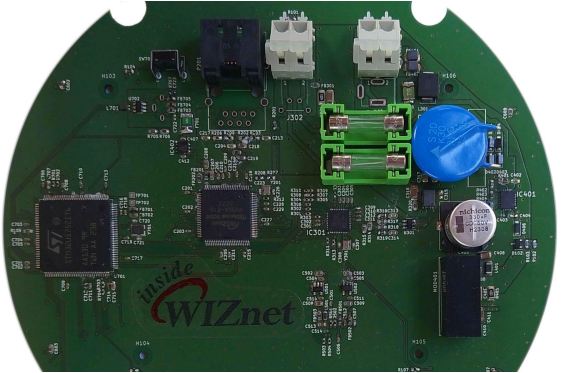

Project Name: W5300 IP 3D Camera over Single Pair Ethernet Author: Jaroslaw Juda (Poland) Status: In Progress (Started in 2023) Project Idea This is an AI camera system that automatically photographs insects (bees, butterflies, etc.) in fields and counts them. It is designed to provide not just simple 2D images, but also 3D distance and size measurements using a ToF (Time of Flight) sensor. Key Components Component Role: WIZnet W5300 TCP/IP Stack + MAC + PHY Processing: ADI ADIN1100SPE (10BASE-T1L) Physical Layer PHY: STM32U575 Main MCU (High Performance + Low Power) OV2640 180° Wide-Angle…
