ETH WIZ click
ETH WIZ click
4
Project description

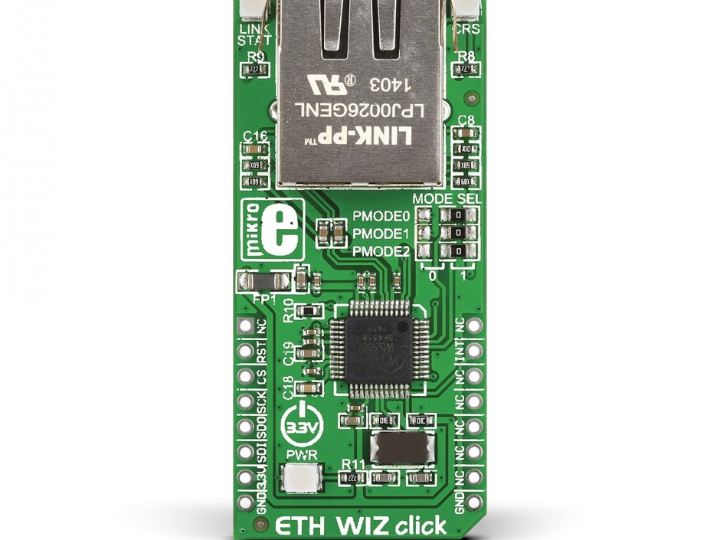

ETH Wiz click carries W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload engine, along with a standard RJ-45 connector.
| Type | Ethernet |
| Applications | Home network devices and all sorts of Embedded servers |
| On-board modules | W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller, standard RJ-45 connector |
| Key Features | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE supported. Wake on LAN and power down modes supported. 32KB of internal memory for TX/RX buffers |
| Interface | GPIO,SPI |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V |
