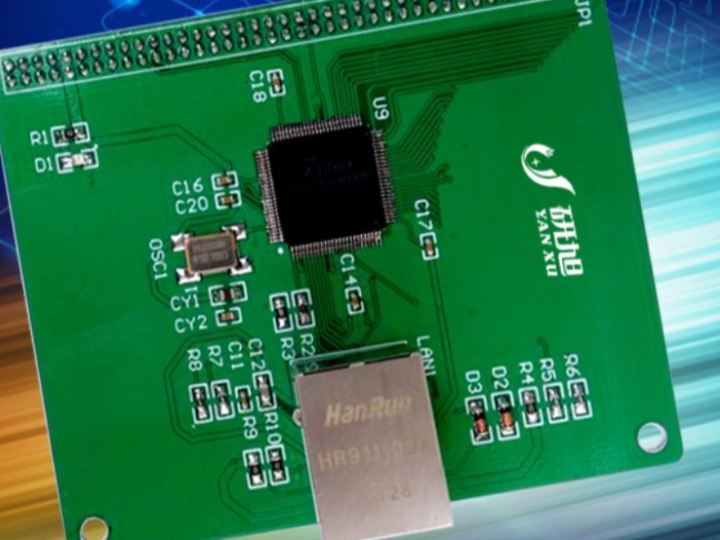

Yan Xu YX-W5300 network modules

WIZnet

Published February 08, 2023

Project description

W5300 network port transmission module large flow data transmission usb gpio switch to Ethernet transmission interface Back of YX-W5300: YX-W5300 with 28335 board: W5300 Applications: Home Network Device: DVR, PVR, Digital media device Serial-to-Ethernet: Access Control, LED display Parallel-to-Ethernet: POS, mini printer, copy machine USB-to-Ethernet: Storage Device, Network Printer GPIO-to-Ethernet: Home Network Sensor Security: DVR, Network Camara Factory and building automation Medical monitoring device Embedded server
