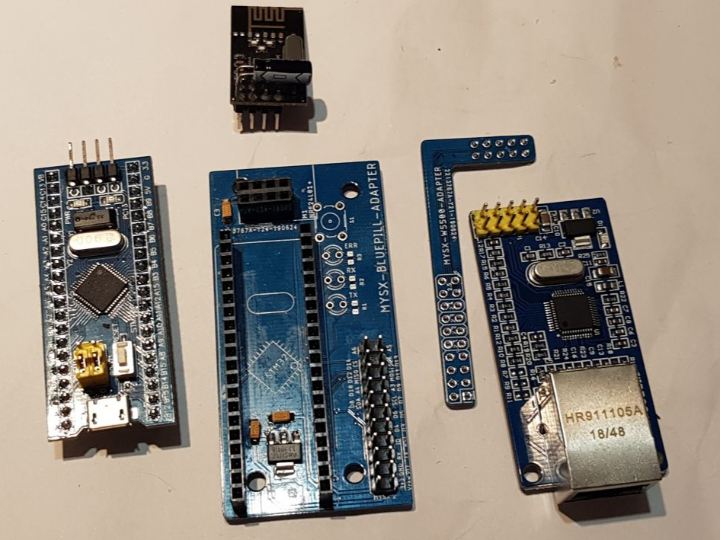

MySX(Sensor) boards BluePill
Sensor Board STM32F103C8T6
2
Components
Hardware components
WIZnet - W5500
x 1
WIZnet - W5100
x 1
Project description
Software Apps and online services KooLru Ethernet Library Arduino_core_STM32 KooLru MySensors https://www.openhardware.io/view/793/MySX-STM32-BluePill#tabs-instructions OpenHardware : STM32F103C8T6 Blue pill board Description SPI1 for NRF24 SPI2 for W5100|W5500 module (MYSX_SPI) I2C 2 (MYSX_I2C) SDA PB11 SCL PB10 Before begin call Wire.setSDA(MYSX_SDA); Wire.setSCL(MYSX_SCL); Arduino_Core_STM32 Sketch files: MySensors STM32 Cores branch Ethernet on any SPI with STM32 Cores MySensors Gateway with w5500 | w5100 | Serial adapter
