Modbus-TCP

Modbus-TCP

jaden

Published January 04, 2024

133 UCC

18 WCC

55 VAR

Original author: goddland16 · IndiaOriginal source (new tab)

Modbus-TCP

Components

Hardware components
W5500

WIZnet - W5500

x 1

W5100

WIZnet - W5100

x 1

Arduino Mega 2560

Arduino - Arduino Mega 2560

x 1

WIZnet parts

Project description

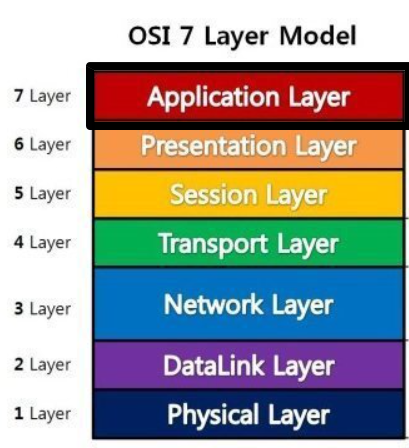

Before we get into the details of this project, let's talk about Modbus TCP. Modbus TCP is one of the fieldbus protocols. It belongs to the application layer of the seven layers of the OSI. This means that it can be implemented on any WIZnet chip that has a TCP/IP core, and while there are no regular updates, the WIZ550S2E does provide a Modbus example. The author of this UCC implemented a Modbus TCP slave using an Arduino Mega. The author has selected and implemented the W5100, ENC36J60, and ESP8266 for use as defined in the code. There is definitely a demand for Modbus TCP in industrial…
