Real-Time UDP Pixel Display & Stage Visualizer

A W55MH32L-EVB paints 772-byte RGB frames streamed over UDP onto an 8x32 WS2812B matrix, counting dropped frames on an OLED instead of hiding them.

TheoIm

Published October 08, 2026 · Updated October 12, 2026

Original author: Jonathan L · United States of AmericaOriginal source (new tab)

Real-Time UDP Pixel Display & Stage Visualizer

Components

Hardware components

x 1

Project description

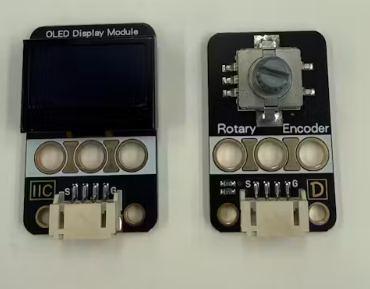

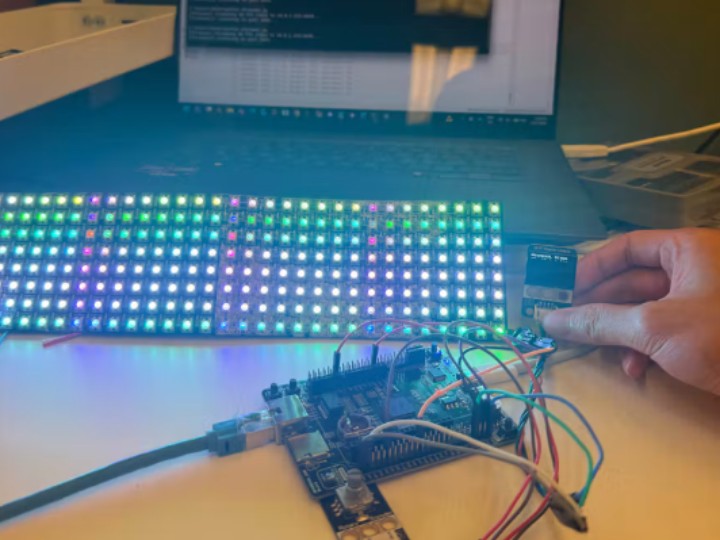

Overview Real-Time UDP Pixel Display & Stage Visualizer turns a W55MH32L-EVB into a network-controlled LED stage fixture. A host PC streams 772-byte RGB frames to the board over UDP through its on-board WIZnet W5500 Ethernet controller; the board paints them onto an 8×32 WS2812B matrix, reports its own IP, frame rate and dropped-frame count on an SSD1306 OLED, and sends a rotary encoder's position back to the PC on a second UDP port so the host can use it as a live control input. The author publishes it as Part 1 of a series under GPL3+, with the complete MicroPython source walked through…
