Dual W6300 Ethernet Bypass with MACRAW

Project description

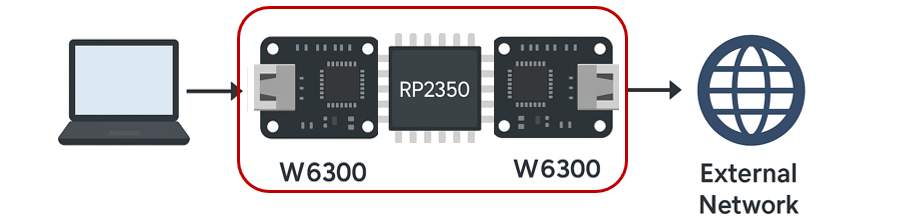

W6300-Based MACRAW Ethernet Bypass Node This project demonstrates how to build an Ethernet frame-level bypass node using two W6300 Ethernet controllers and an RP2350 microcontroller, operating in MACRAW mode. While previous examples focused on loopback testing with a single W6300, this version extends the concept by relaying Ethernet frames between two W6300 chips. The RP2350 acts as a simple middle node that receives a frame from one W6300 and immediately forwards it to the other—without modifying the frame. This architecture can be used as a transparent inline device between two network…
