W5500-EVB-Pico2 Ethernet and LoRa Carrier Board

A W5500-EVB-Pico2 carrier for PoE Ethernet, E22P LoRa, sensors, and gateway firmware.

Benjamin

Published June 08, 2026

Original author: Carlos ValdesOriginal source (new tab)

W5500-EVB-Pico2 Ethernet and LoRa Carrier Board

Components

Hardware components

Project description

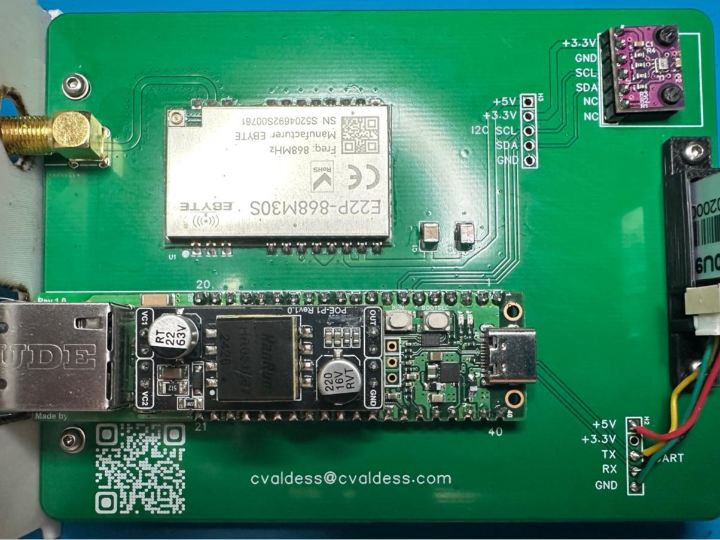

W5500-EVB-Pico2 Carrier for Gateway Builds Wiznet_5500_EVB_Pico2_E22P is a custom carrier board that combines a WIZnet W5500-EVB-Pico2, an Ebyte E22P/E22 LoRa module, PoE support, sensor wiring, and expansion headers into one gateway-oriented hardware design. The WIZnet board supplies the RP2350 microcontroller and on-board W5500 Ethernet controller, while the carrier adds the LoRa radio and supporting connectors needed for Meshtastic, MQTT gateway, APRS iGate/Digipeater, and remote monitoring use cases. The technical value is not a new protocol stack inside this repository, but a practical…
