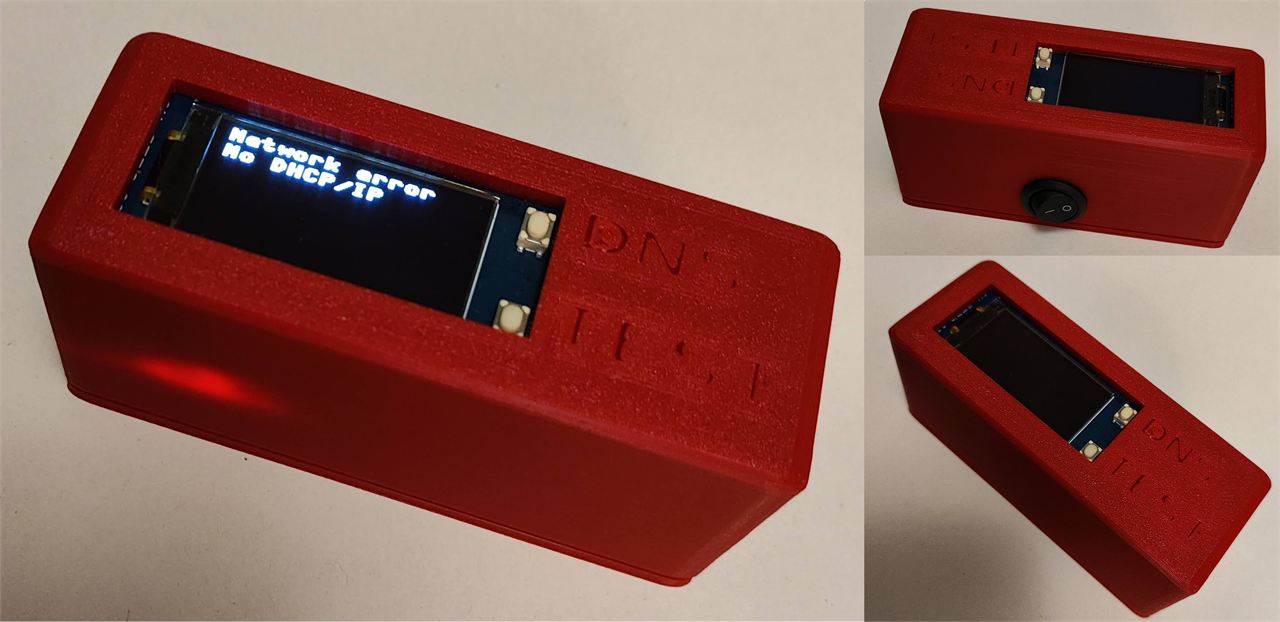

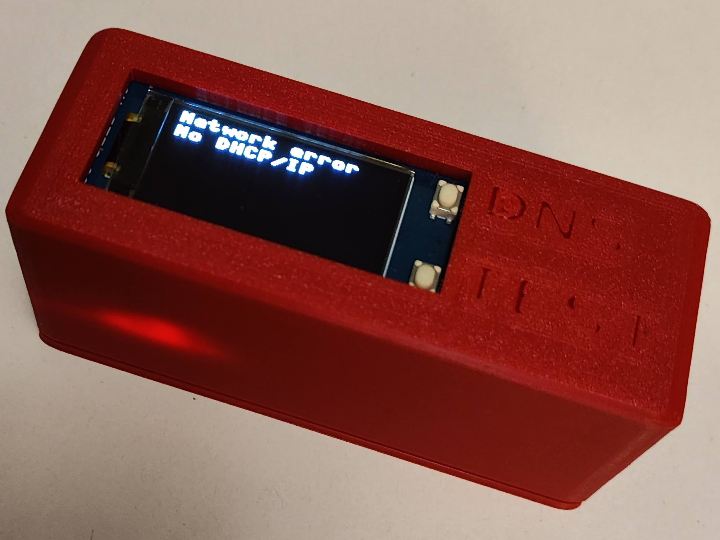

Pocket-Sized Network Tester with W5500-EVB-Pico2 and OLED Display

A battery-powered portable network tester using WIZnet W5500-EVB-Pico2 to instantly verify Ethernet port connectivity and DHCP configuration.

Benjamin

Published July 09, 2025 · © GNU General Public License, version 3 or later (GPL3+)

Original author: Alban Killingback · United KingdomOriginal source (new tab)

Pocket-Sized Network Tester with W5500-EVB-Pico2 and OLED Display

Components

Hardware components Software Apps and online services

Project description

Introduction In professional IT environments, particularly in hospitals and large enterprises, network technicians frequently encounter unpatched or unknown Ethernet ports. Traditional verification methods require carrying a laptop, which is cumbersome for quick field checks. This project presents an elegant solution: a pocket-sized, battery-powered network tester built around the WIZnet W5500-EVB-Pico2 that instantly verifies port connectivity and DHCP configuration. With a total cost of approximately £20 and dimensions small enough to fit in any toolkit, this device transforms network…
