How to Bridge Network MIDI 2.0 with W5500 on RP2040?
AmeNote ProtoZOA's NetworkMIDI2_Bridge connects USB MIDI 2.0 devices to Network MIDI 2.0 over wired Ethernet using an RP2040 and a WIZnet W5500 expansion board.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

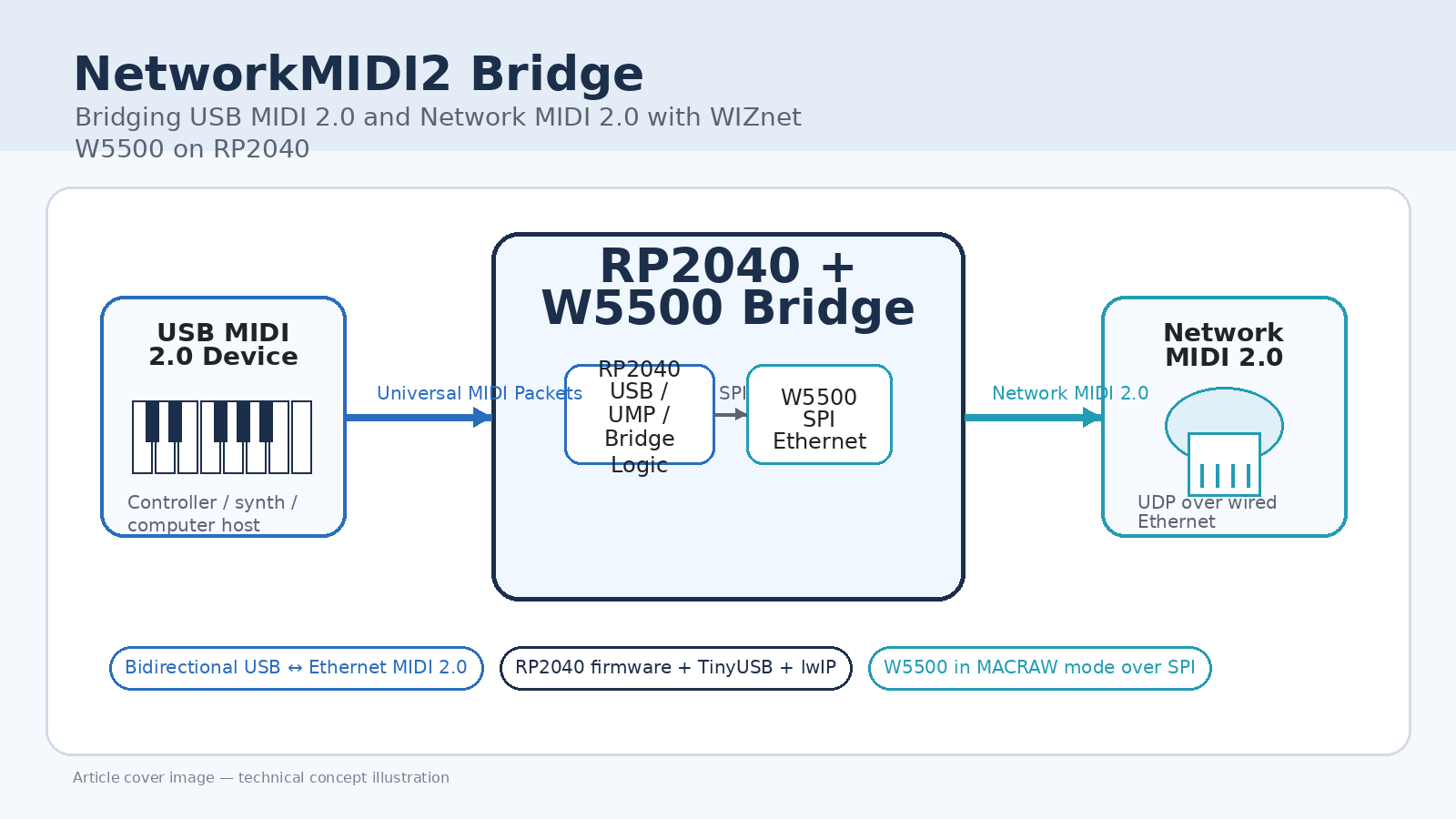

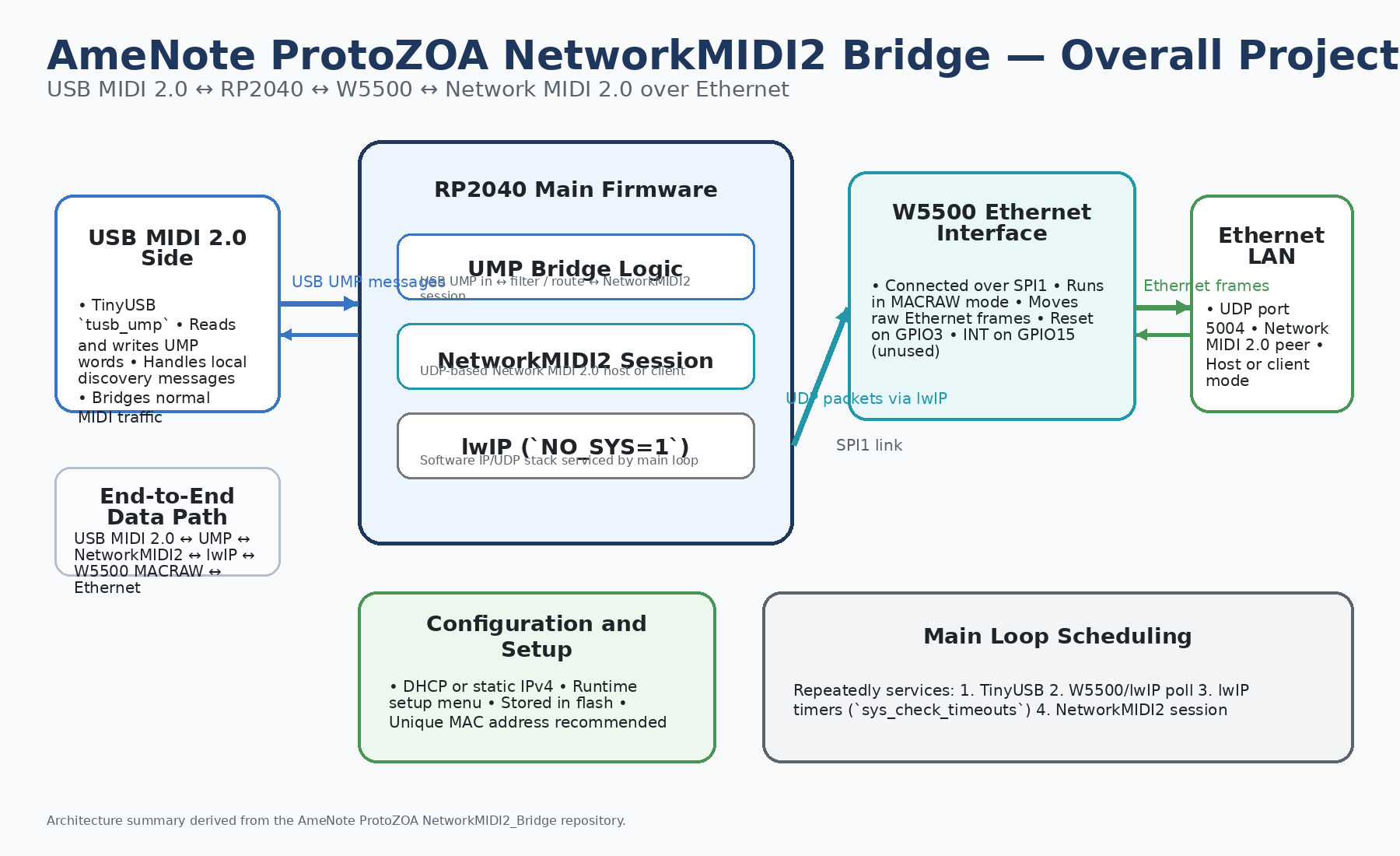

Summary AmeNote ProtoZOA's NetworkMIDI2_Bridge connects USB MIDI 2.0 devices to Network MIDI 2.0 over wired Ethernet using an RP2040 and a WIZnet W5500 expansion board. The RP2040 handles USB Universal MIDI Packets, Network MIDI 2.0 session logic, and lwIP, while the W5500 provides the physical Ethernet interface and MACRAW frame transport over SPI. The primary use case is developing and testing professional MIDI 2.0 equipment that needs bidirectional communication between USB and Ethernet networks. What the Project Does AmeNote ProtoZOA is a hardware and firmware prototyping platform…
