[Re-curation]senseBox Wetterstation

The senseBox is designed for weather observation and is installed outdoors; its data is shared via a router to openSenseMap.

WIZnet

Published October 04, 2023

Original author: SenseBox · GermanyOriginal source (new tab)

Components

Hardware components

Arduino - Arduino 101

x 1

WIZnet - W5500 Ethernet Shield

x 1

Project description

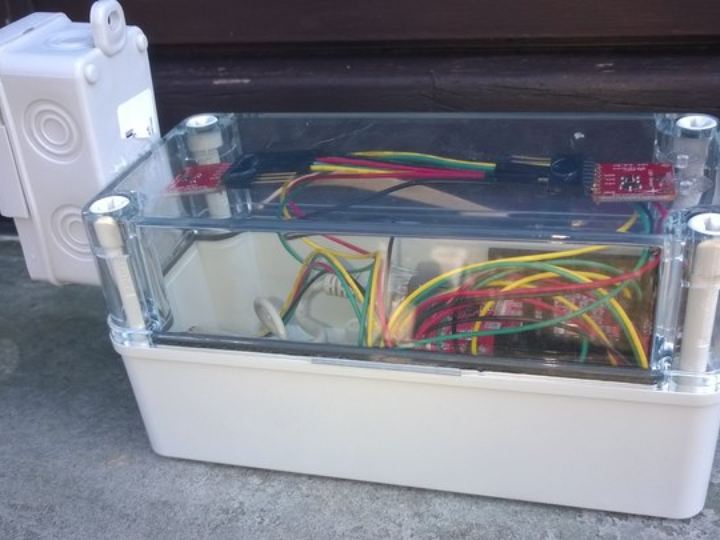

The senseBox that we describe here is intended to serve as a weather station and is intended for outdoor use, for this reason it is built into a housing intended for this purpose. Finally, the recorded data should be transported from the box to a router via a LAN cable and then published on the openSenseMap . Goal This senseBox is intended to collect the following weather data: Air pressure Temperature humidity UV radiation Brightness (in lux) Height (which, however, is not read out in this project) materials From senseBox:edu Genuine ONE W5500 Ethernet Shield UV-Sensor (VEML 6070)…

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
