Alarm for deaf with with Surf5, WIZPoE-P1 and Edge ML module

A fire alarm sound detector for deaf.
Once Edge ML IC detected alarm, a message will be sent via the Internet connection provided by Surf5.

teamprof

Published June 26, 2024 · © GNU General Public License, version 3 or later (GPL3+)

Alarm for deaf with with Surf5, WIZPoE-P1 and Edge ML module

Components

Hardware components

Monochrome 0.96" 128x64 OLED Graphic Display

x 1



Project description

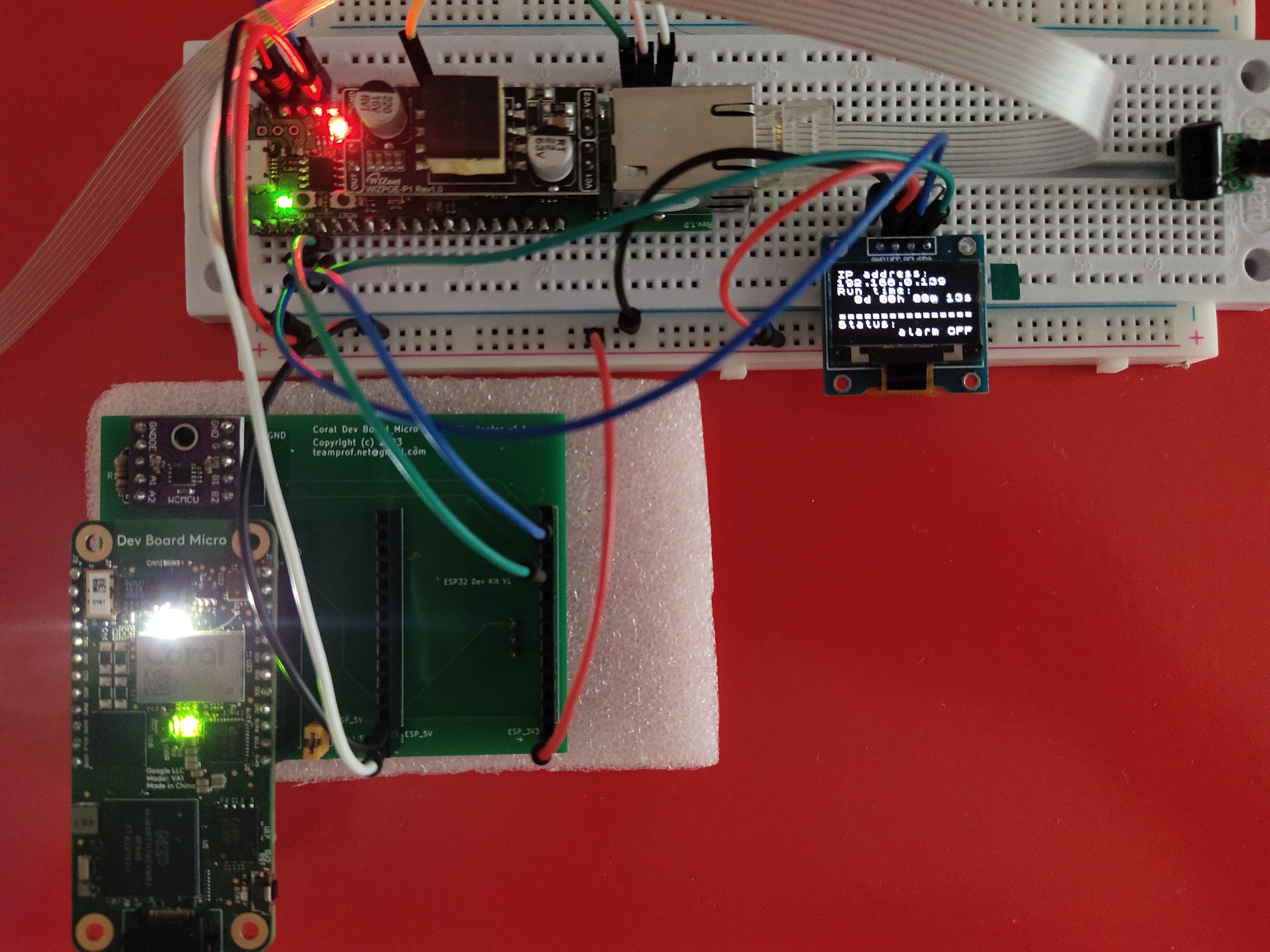

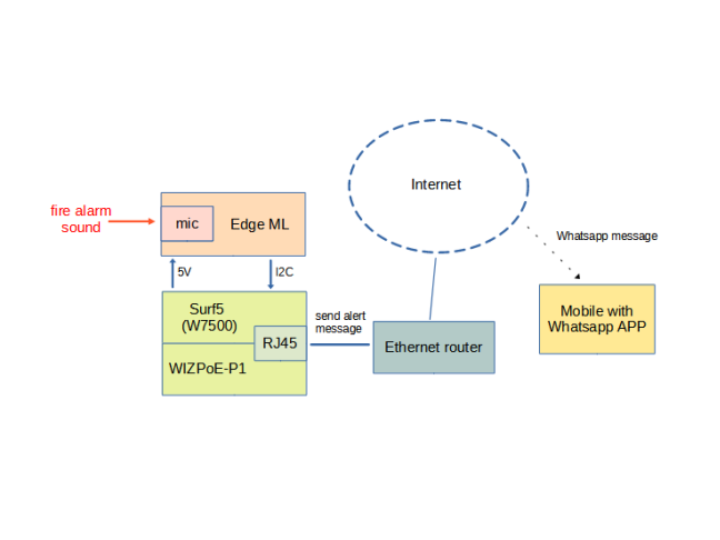

Introduction This project demonstrates how to leverage WIZnet Surf5, WIZPoE-P1 and Edge machine learning (ML) module to implement an IoT platform with ML capability, powered by Ethernet cable (without AC adapter). This project is targeted toward deaf individuals who are living in an apartment. It monitors sounds inside a building. If it detects a fire alarm sound, it sends an alert message to the user’s mobile device, signalling them to escape immediately. WIZPoE-P1 provides 5V power to both Surf5 and Edge ML module. Surf5(W7500) acts as a main controller which provides Ethernet connectivity…
