HTPAd Application Shield
For thermal imaging and easy application of our arrays we designed an application board to read thermopile sensors with an Arduino.
4
Components
Hardware components
Arduino - Arduino Due
x 1
Arduino - Arduino Ethernet Shield
x 1
Project description
Original : https://github.com/HeimannSensor/Arduino-DUE-Application-Shield
https://github.com/HeimannSensor/Nucleo-64-STM32F446RE-Application-Shield
https://www.heimannsensor.com/development
HEIMANN Sensor

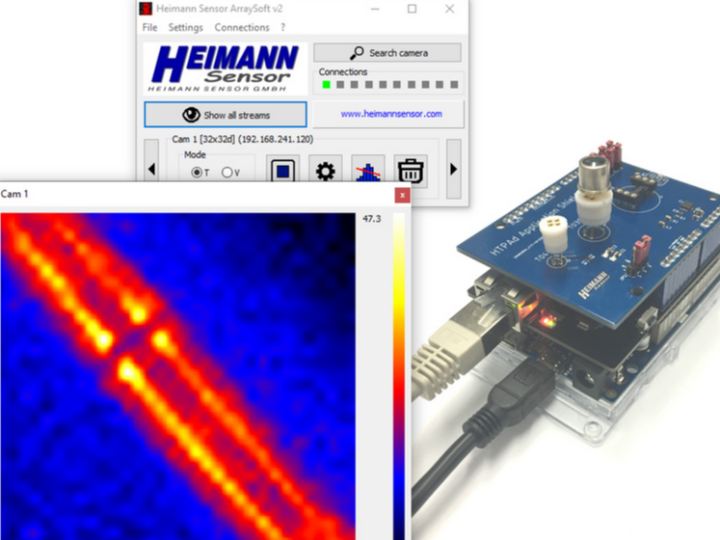

For thermal imaging and easy application of our arrays we designed an application board to read thermopile sensors with an Arduino board.
The source code is completely open and includes all required steps from reading the EEPROM and sensor values to calculation of the final temperature image. Therefore, the C++ sample code can be viewed and modified via the Arduino IDE. The PCB is designed as an Arduino extension and supports the board Arduino Due.
You can choose between two modes: Ethernet mode and Serial mode.
