W5500 CANTUS Loopback

W5500 CANTUS Loopback

Components

Hardware components
W5500 Ethernet Shield

x 1


x 1

Software Apps and online services

x 1


x 1

Project description

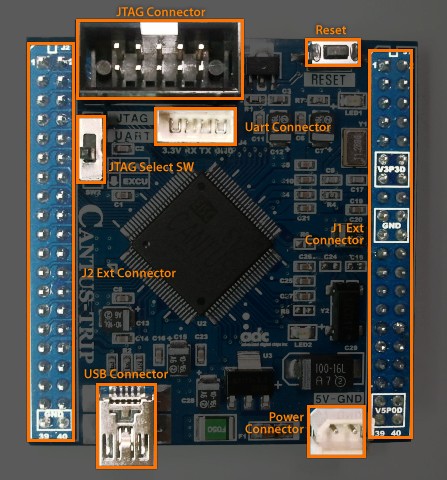

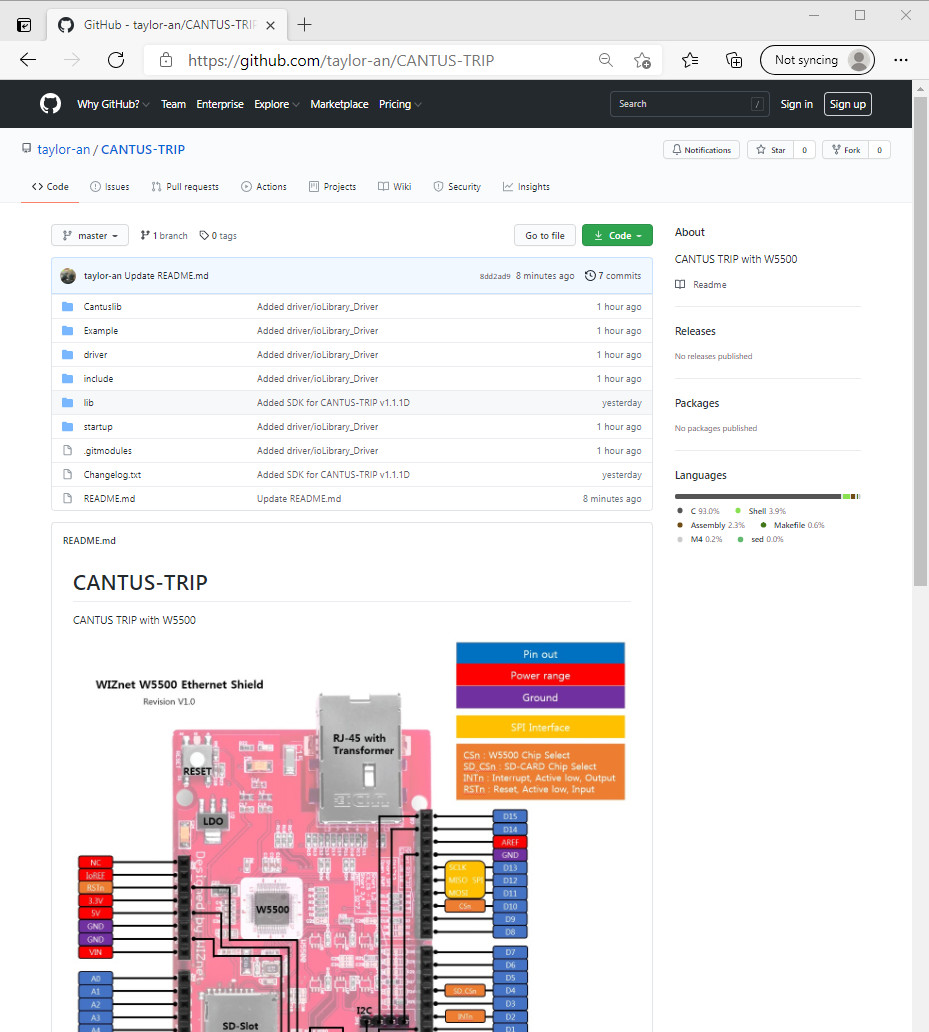

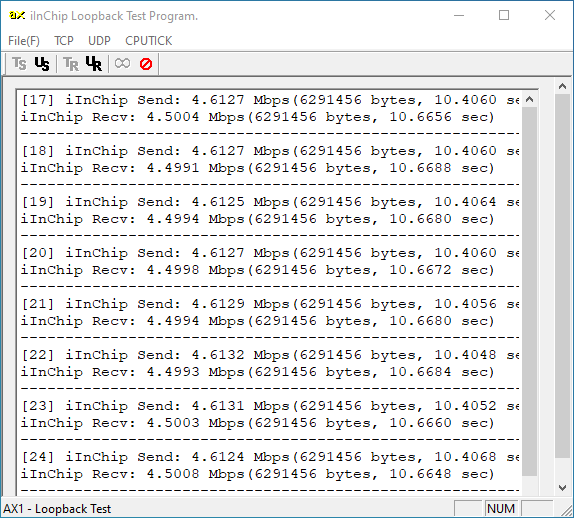

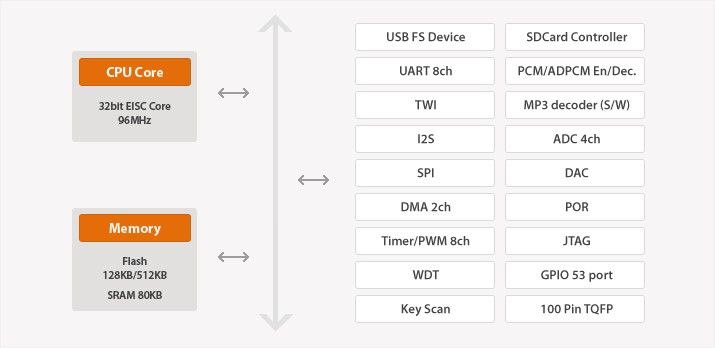

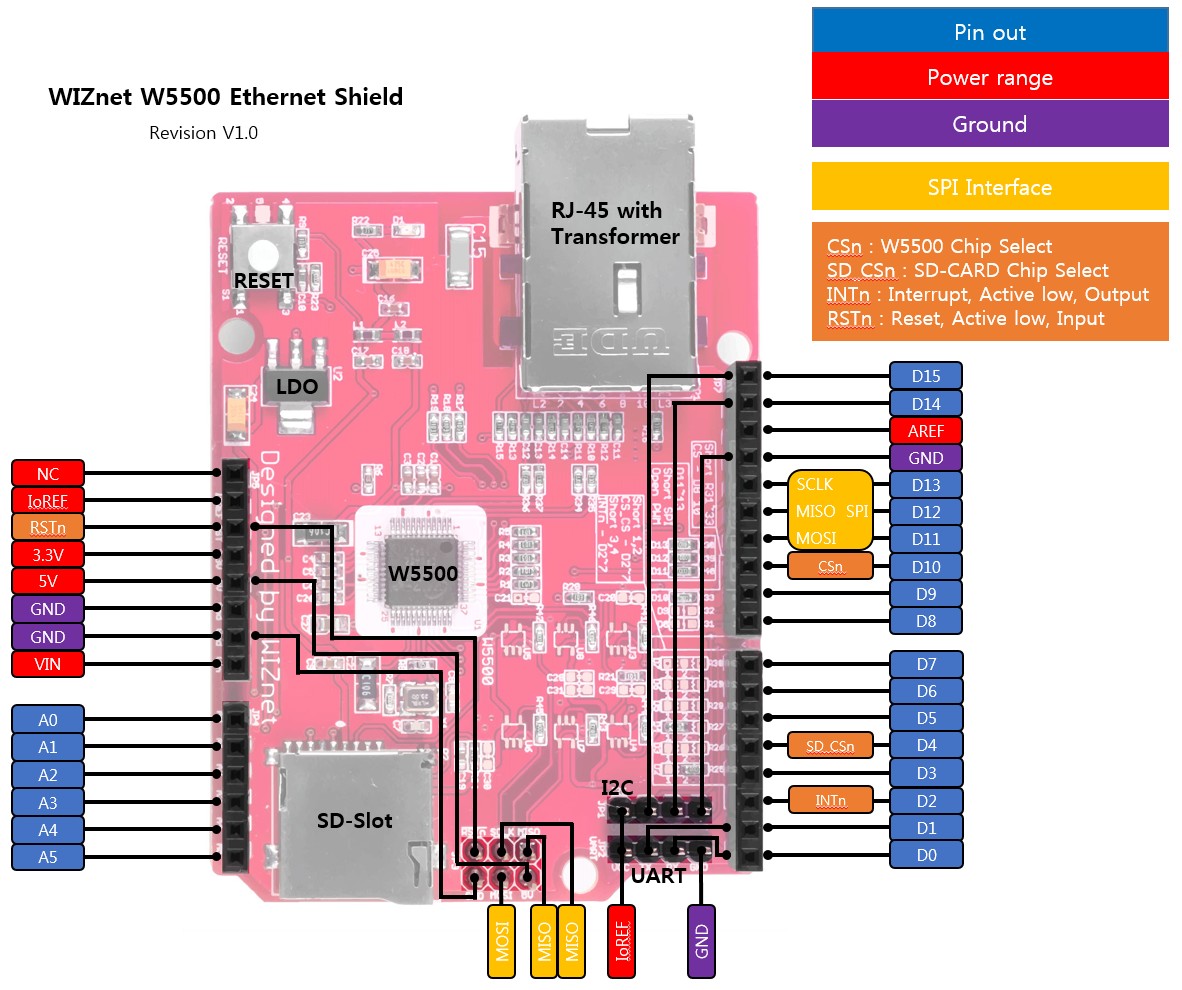

The W5500 chip is a Hardwired Internet controller designed as a full hardwired TCP/IP stack with WIZnet technology. W5500 provides Internet connectivity to your embedded systems by using SPI(Serial Peripheral Interface). SPI provides easy connection via external MCU to W5500. The clock speed of W5500 SPI supports upto 80MHz.The CANTUS is 32bit MCU that is based on EISC. And there is CANTUS TRIP. This is a connection(SPI Mode) between W5500 and CANTUS Trip. Loopback Test Source Code(https://github.com/taylor-an/CANTUS-TRIP)
