STM32F103 W5500 Coremark Test

This project measure the performance of transferring data to a pc server using stm32 and W5500 shields.

Aimee0

Published November 20, 2023

120 UCC

25 WCC

29 VAR

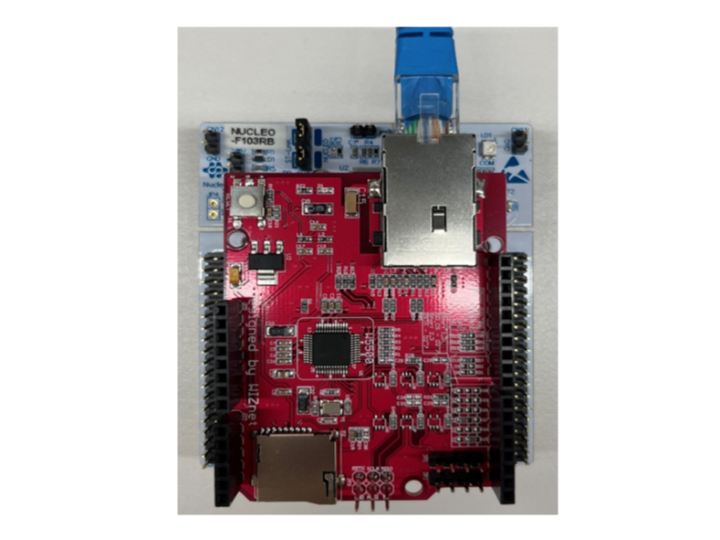

STM32F103 W5500 Coremark Test

Components

Hardware components
W5500 Ethernet Shield

WIZnet - W5500 Ethernet Shield

x 1

NUCLEO-F103RB

STMicroelectronics - NUCLEO-F103RB

x 1

Project description

Board Settings

Nucleo-F103RB

OS : FreeRTOS

CPU Clock : 64MHz

SPI1 baudrate : 16Mbit/s

Pin Setting

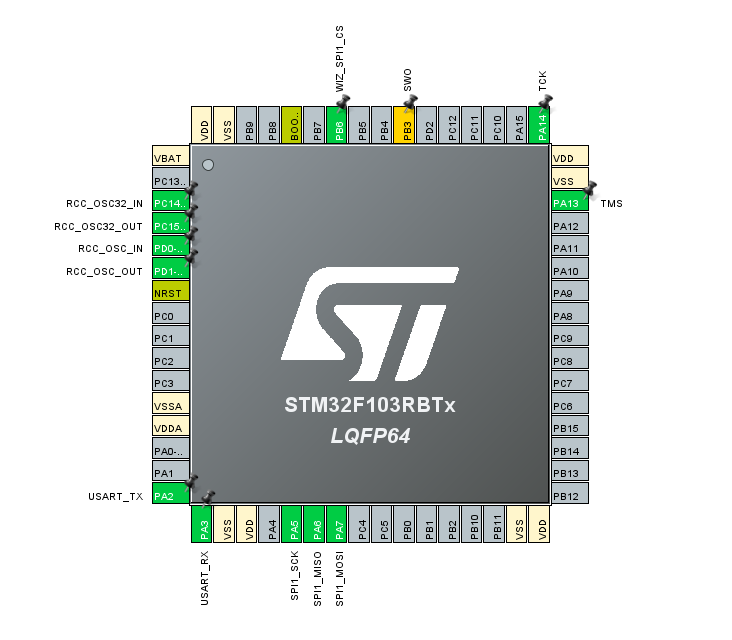

Pin Setting



Test Result

STM32F103 W5500 Coremark Test



STM32F103 W5500 Coremark Test

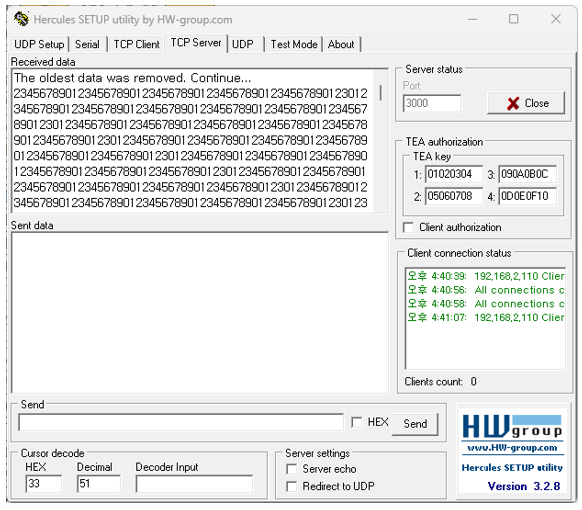

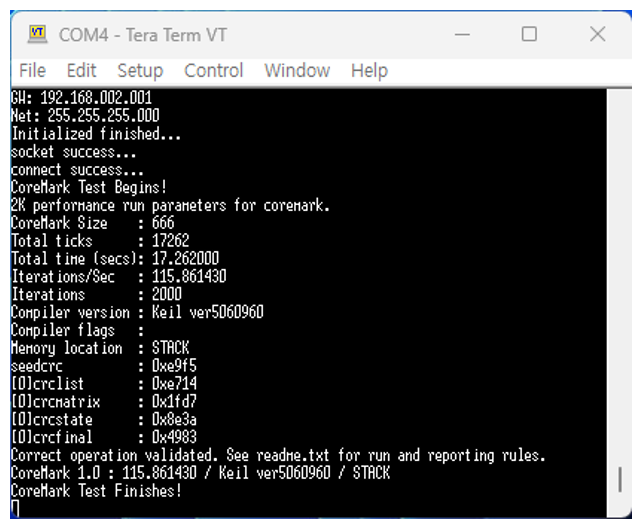

On the PC, you can see the data from 0 to 9 coming into the TCP server as shown in the picture, and you can see that coremark is running while the data is being transmitted and the test result is 115 points, which is output through the serial.
