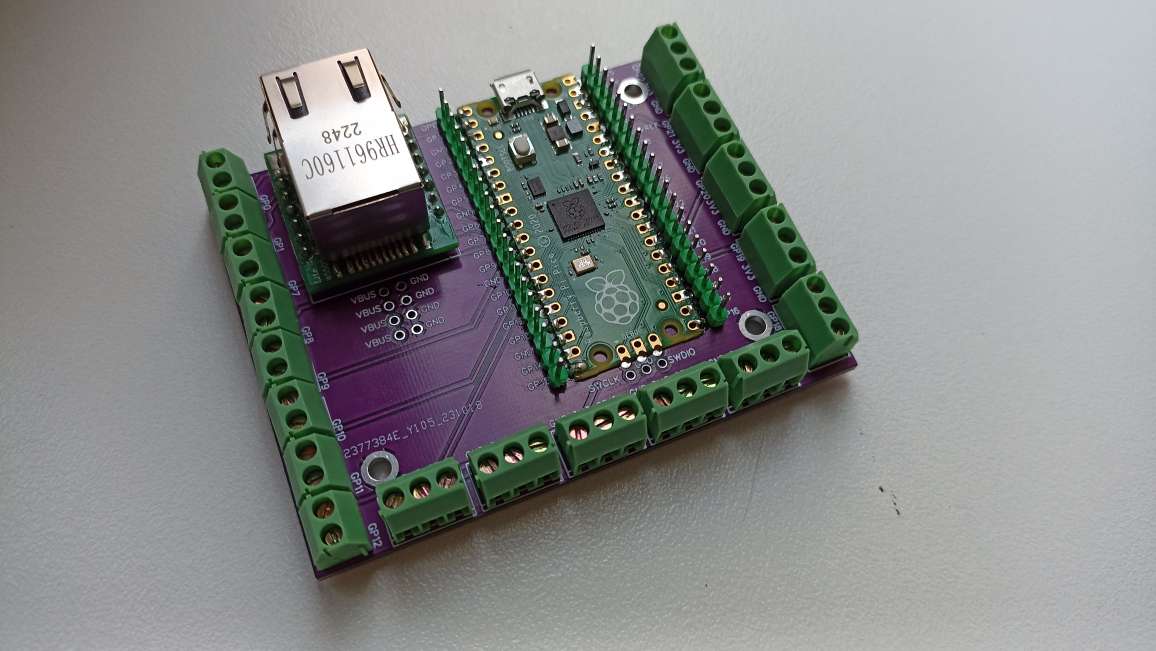

Pi-Pico-Screw-Terminal-Board-with-W5500-Ethernet-module
Raspberry Pi pico project board which has a goal to make an easily connectable simple smart home control board connected via Ethernet.
0
Components
Hardware components
WIZnet - W5500
x 1
Raspberry Pi - Raspberry Pi Pico
x 1
Project description
I have a prototype system based on an Arduino Uno and W5500 Ethernet board connected up using pigtais, that's been used in my garrage as a security and control center integrated via MQTT with Home Assistant. My goal for this was to clean up the whole thing and make it easier to connect up new sensors as it's a pain to solder up pigtails on wires each time. Also decided to upgrade to Pi Pico as it's much more powerfull, cheaper, smaller and more power efficient than Arduino Uno. I decided to go with Pi Pico over an ESP32 based board, because Pi Pico pins are standartized, so not as confusing…
