scarlet

Published October 28, 2022

Original author: stefan.schnitzer · United States of AmericaOriginal source (new tab)

DIY SCADA / wireless and wired remote I/O

Components

Hardware components

Project description

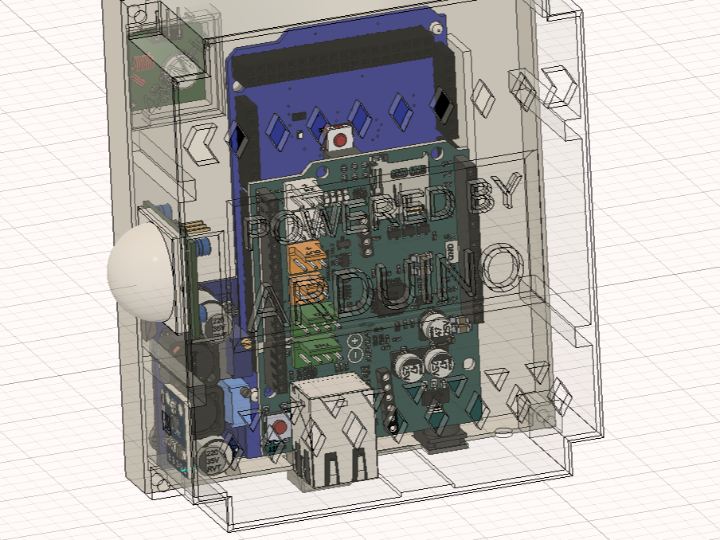

It is built to work within my DIY SCADA: https://hackaday.io/project/14862-diy-scada-smart-homeIts purpose is to connect any sensor or actor wireless to my smart home system.This is achieved with an Arduino and an ESP8266 (ESP-01) as a WiFi module.The Arduino (Level 1) transmits data via Modbus TCP/IP Protocol to the Level 2 (A Raspberry PI with CodeSys software PLC). Small functions are processed directly on the Arduino. ( for example the dosing on my cat-feeder https://hackaday.io/project/167848-diy-scada-cat-feeder) DETAILS The example on my pictures shows a unit that has a motion sensor…
