PART 5 - CONTROL POWER CIRCUITS (LIGHTS, SOCKETS, HEATING) (OpenTUX Pi-Home)
Switching power circuits - sockets, lights, blinds, pumps and other devices under 110-230V is one of the essential functions
11
Components
Hardware components
Arduino - Arduino Mega 2560
x 1
Arduino - Arduino Ethernet Shield 2
x 1
Raspberry Pi - Raspberry Pi 4 Model B
x 1
Project description

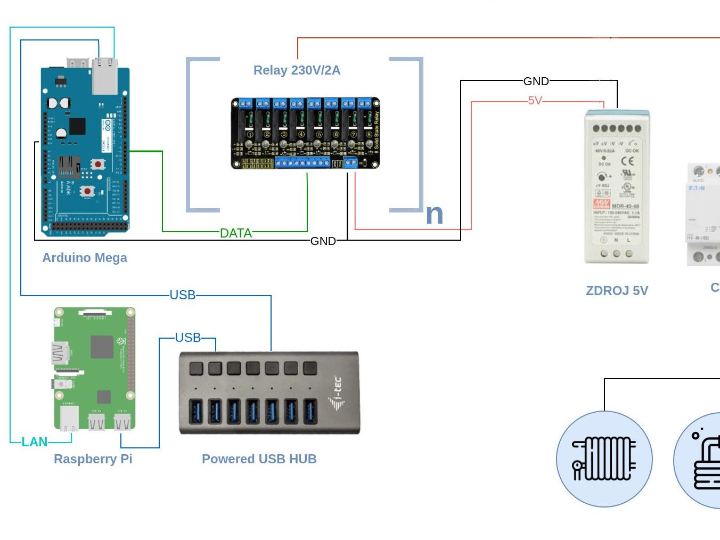

Switching power circuits - sockets, lights, blinds, pumps and other devices under 110-230V is one of the essential functions of an intelligent house. At Pi-Home, we are using Arduino Mega boards with Ethernet Shield, which control Arduino's compatible SSR relays connected with high power relays of the switchboard. What we'll need Part 2 - OpenHAB na Raspberry Pi Arduino Mega with Ethernet Shield (DIN holder) Arduino SSR relay 8x2A/230V (DIN holder) Installation relay ie EATON Z-R230/S or multiphase EATON Z-R230/4S DC Power Source 5V 40W (DIN) Original Link…
