Umochi / AutomaticHenHouse
Project for the automation of a chicken coop door.
19
Components
Hardware components
WIZnet - W5100 ethernet shield
x 1
Project description

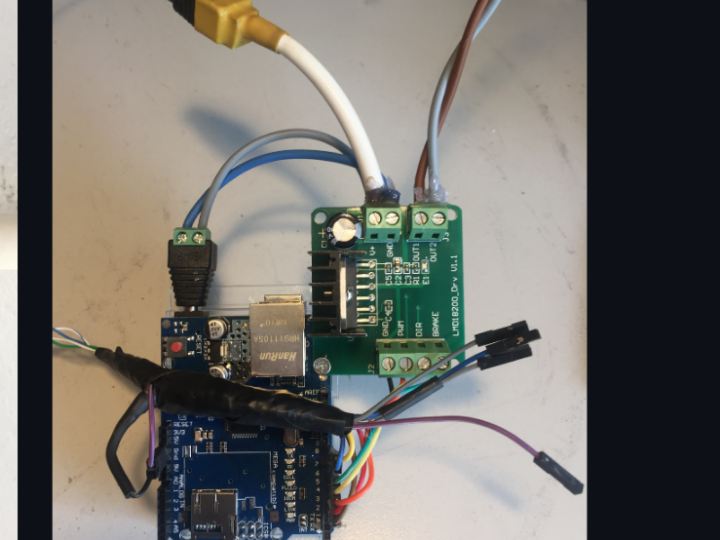

AutomaticHenHouse Project for the automation of a chicken coop door. The hardware that takes care of opening and closing the door consists of an Arduino Uno board, connected to the network via Ethernet-Shield . The motor that opens the door via a threaded rod is a simple 12v motor that mounts a spindle. A different lmd18200 was used to interface with the motor, but 4 simple relays could also be used. The use of this diver allows you to control the direction and activity of the motor as well as the output voltage to regulate the ascent and descent speed. Two simple buttons (PCB Switch)…
