W5100 Ethernet shield data logger

SD memory card + LCD Display + solar panel + RTC DS1302 + Thernistor 10K

WIZnet

Published February 21, 2023

Original author: cherrychanceOriginal source (new tab)

W5100 Ethernet shield data logger

Components

Hardware components
W5100 ethernet shield

WIZnet - W5100 ethernet shield

x 1

Project description

DETAILS

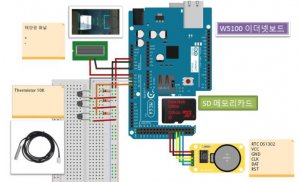

W5100 Ethernet shield data logger

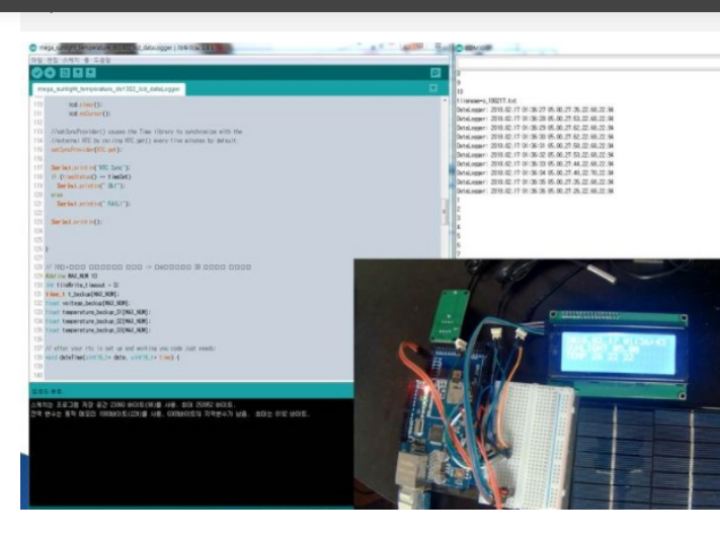

W5100 Ethernet shield data logger

Arduino Mega 2560(ATmega2560) microcontrol board

Arduino Mega 2560(ATmega2560) microcontrol board 아두이노 > 정품보드/쉴드/키트,Arduino,Arduino Mega 2560 (R3),A000067 / 이탈리아 정품 / ATmega2560 기반, 디지털 I/O 54핀 및 아날로그 입력 16핀 / 256KB 메모리 / 동작 전압 : 5V" data-src="https://www.devicemart.co.kr/data/goods/1/2018/06/34405_tmp_d536587dbf85e212a94abbbd577502238169view.png" width="304" height="304">

  • Operating Voltage 5V
  • Input Voltage (recommended) 7-12V
  • Input Voltage (limits) 6-20V
  • Digital I/O Pins 54 (of which 14 provide PWM output)
  • Analog Input Pins 16
  • DC Current per I/O Pin 40 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 256 KB of which 8 KB used by bootloader
  • SRAM 8 KB
  • EEPROM 4 KB
  • Clock Speed 16 MHz

SD Library from Arduino

https://www.arduino.cc/reference/en/libraries/sd/

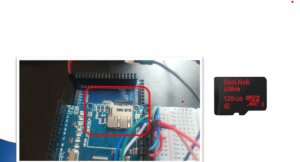

SD Library from Arduino

DS1302RTC Library from Arduino

https://www.arduino.cc/reference/en/libraries/rtc/



Display Library from Arduino

https://www.arduino.cc/reference/en/libraries/category/display/
