UCL_IOT_WAKE-UP-LIGHT

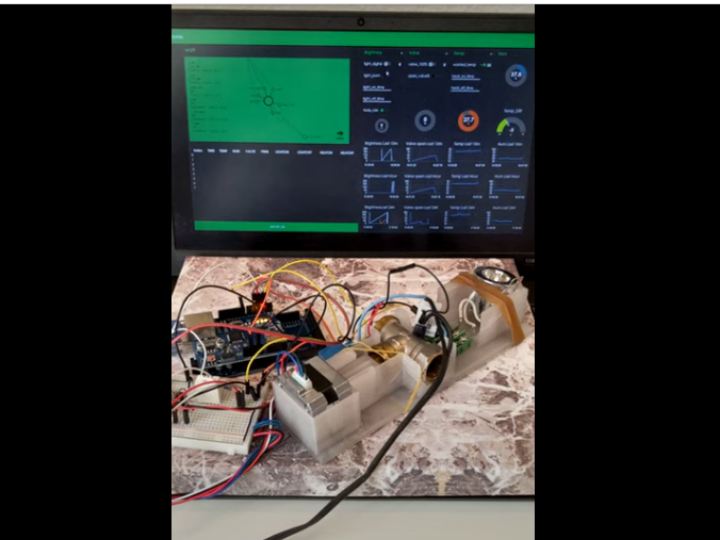

The first thing i did was to remove the real-time-clock and the oled-display since they are no longer needed.

The physical setup is otherwise mostly unchanged , the only part i have added is a W5100 ethernet shield to communicate with my computer/node-red, for wiring see my last project. I tried to communicate with a node-mcu module but i could not get a connection so i scrapped that idea.

Remember to enable internet sharing in the Wi-Fi settings !

The other thing i had to do was to rewrite the Arduino code to act on external commands instead of just sensors etc. I found a great guide to be able to connect to the MQTT-broker shiftr.io, the link is included in the ino file.

Other inspiration sources can be found in the bottom of the page.

I have also rewritten the motor-code so that it can go back and forward at 10% intervals but not exceed my set limit. I tried to make it work with 1 % steps but because of the calculations, i got a invalid result when a part-calculation didn´t have the same data format. example(960 steps/ 100 = 9.6) This would get a result that where way of and nothing worked properly.

#include
#include #include #include //---------- board settings ------------------ byte mac[] = {0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED}; //------ MQTT broker settings and topics const char* broker = "broker.shiftr.io"; char mqttUserName[] = ""; char mqttPass[] = ""; //------ PIN settings and topics #define MQTT_CONNECTION_LED_PIN 9  // MQTT connection indicator           #define OUT1_PIN 8                 // Led #define OUT2_PIN 2                 // relay #define DHT_PIN 3                  // DHT22 #define OUT3_PIN 4                 // Step #define OUT4_PIN 5                 // Direction #define DHTTYPE DHT22   // DHT 22  (AM2302), AM2321 DHT dht(DHT_PIN, DHTTYPE); // Initialize DHT sensor. const int STEPS_PER_REV = 960; byte HEAT_ON = 0; int OpenPer = 0; const char* topic_pub_sensor1 = ("temp", "temp"); // You can to replace the labels: sensor1, sensor2, input_1, etc. with yours const char* topic_pub_sensor2 = ("hum", "hum"); const char* topic_pub_status3 = "heat_stat";

const char* topic_sub_out1 = "light"; const char* topic_sub_out2 = "valve_open"; const char* topic_sub_variable1 = "pwm"; const char* topic_pub_in1 = "heat"; const unsigned long mqttPostingInterval = 5L * 1000L; // Post sensor data every 5 seconds. //---------Variables and Libraries -------------------- #include EthernetClient net; MQTTClient client; unsigned long lastUploadedTime = 0; byte in1_lastState = 2; byte in2_lastState = 2; //========================================= connect //========================================= void connect() {  digitalWrite(MQTT_CONNECTION_LED_PIN, LOW);  // Turn off the MQTT connection LED  Serial.print("\nConnecting...");  //--- create a random client id  char clientID[] = "VIRTUINO_0000000000"; // For random generation of client ID.  for (int i = 9; i < 19 ; i++) clientID[i] =  char(48 + random(10));  while (!client.connect("Arduino", mqttUserName, mqttPass)) {    Serial.print(".");    digitalWrite(MQTT_CONNECTION_LED_PIN, !digitalRead(MQTT_CONNECTION_LED_PIN));    delay(1000);  }  Serial.println("\nconnected!");  digitalWrite(MQTT_CONNECTION_LED_PIN, HIGH);  client.subscribe(topic_sub_out1);  client.subscribe(topic_sub_out2);  client.subscribe(topic_sub_variable1);  // client.unsubscribe(topic_sub_out2); }

//========================================= messageReceived //========================================= void messageReceived(String &topic, String &payload) {  Serial.println("incoming: " + topic + " - " + payload);  if (topic == topic_sub_out1) {    int v = payload.toInt();    if (v == 1) digitalWrite(OUT1_PIN, HIGH);    else digitalWrite(OUT1_PIN, LOW);  }  if (topic == topic_sub_out2) {    int v = payload.toInt();    if (v > 0 && v > OpenPer) {      digitalWrite(OUT2_PIN, HIGH);      digitalWrite(OUT4_PIN, HIGH);      delay(1000);      Serial.println("OPENING TO "+String(v)+"%");      Serial.println("OPENING percentage is"+String(v)+"%");      unsigned long reverse = (STEPS_PER_REV/10 * (v-OpenPer)/10);      Serial.println(String(reverse));      for (int x = 0; x < reverse; x++)      {        digitalWrite(OUT3_PIN, HIGH);        delayMicroseconds(500);        digitalWrite(OUT3_PIN, LOW);        delayMicroseconds(500);        HEAT_ON = 1; }      digitalWrite(OUT2_PIN, LOW);        OpenPer = v;}          else if (v >= 0 && v <= OpenPer) {      digitalWrite(OUT2_PIN, HIGH);      digitalWrite(OUT4_PIN, LOW);      delay(1000);      Serial.println("CLOSING "+String(v)+"%");      Serial.println("OPENING percentage is"+String(v)+"%");      unsigned long reverse =(STEPS_PER_REV/10 * (OpenPer-v)/10);      Serial.println(String(reverse));      for (int x = 0; x < reverse; x++)      {        digitalWrite(OUT3_PIN, HIGH);        delayMicroseconds(500);        digitalWrite(OUT3_PIN, LOW);        delayMicroseconds(500);         HEAT_ON = 0; }        { digitalWrite(OUT2_PIN, LOW);        OpenPer = OpenPer - (OpenPer -v);}      }    }    if (topic == topic_sub_variable1) {    int v = payload.toInt();    Serial.println("Variable 1 = " + String(v));    analogWrite(OUT1_PIN, v);  } } //========================================= setup //========================================= //========================================= void setup() {  Serial.begin(9600);  Serial.println("Setup");  dht.begin();  pinMode(MQTT_CONNECTION_LED_PIN, OUTPUT);  pinMode(OUT1_PIN, OUTPUT);  pinMode(OUT2_PIN, OUTPUT);  pinMode(OUT3_PIN, OUTPUT);  pinMode(OUT4_PIN, OUTPUT);  pinMode(DHT_PIN, INPUT);  Serial.begin(9600);  Ethernet.begin(mac);  client.begin(broker, net);  client.onMessage(messageReceived);  connect(); } //========================================= loop //========================================= //========================================= void loop() {  client.loop();  if (!client.connected())connect();  //---- MQTT upload  if (millis() - lastUploadedTime > mqttPostingInterval) {    float h = dht.readHumidity();    float t = dht.readTemperature();    client.publish(topic_pub_sensor1, String(t), true, 1);    client.publish(topic_pub_sensor2, String(h), true, 1);    client.publish(topic_pub_status3, String(HEAT_ON), true, 1);    // Check if any reads failed and exit early (to try again).    if (isnan(h) || isnan(t)) {      Serial.println(F("Failed to read from DHT sensor!"));      return;    }    lastUploadedTime = millis();  } }

Attachments

• MQTT_IIOT_WAKE_UP_INTRUCTABLE.ino

The Arduino publishes Messages and subscribes to messages trough MQTT , so does node-red. I tried the cayenne broker and the built in Mosca broker in node-red. But both where unstable for me, maybe i had some settings wrong, i don´t know. I control the Arduino from the node-red dashboard ui, and have found a neat node plugin that can send voice commands from google assistant on my phone to node-red that pushes them trough. node-red can write to MySQL. In my program it current valve opening light intensity etc every minute, and reads from the database with the push of a button. It would be more optimal to only send data to the database whenever there is a change in values.

I have installed the following libraries in node-red

• node-red-contrib-bigtimer //to activate light/heat at wanted times
• node-red-contrib-calc // calculate nearest interger etc.
• node-red-contrib-input-split // extract wanted data from msg.object
• node-red-contrib-nora // google assistant nodes
• node-red-dashboard // dashboard UI
• node-red-node-MySQL // send to and read from database

You can find the flow in the txt.file

Attachments

• node-red_flow.txt

To make things easier i store the most of the values of the settings in global vaiables i then write them to MySQL.

I have divided the string on the image in 3 parts to fit in the picture. It should be on a single line.

Then insert the data into a table to be displayed on the dashboard.

IndexTIMETEMPHUMVALVEPWMLIGHTONLIGHTOFFHEATONHEATOFF

{{$index}}
{{msg.payload[$index].TIME}}{{msg.payload[$index].TEMP}}{{msg.payload[$index].HUM}}
{{msg.payload[$index].VALVE}}
{{msg.payload[$index].PWM}}
{{msg.payload[$index].LIGHT_START_MIN}}
{{msg.payload[$index].LIGHT_END_MIN}}
{{msg.payload[$index].HEAT_START_MIN}}
{{msg.payload[$index].HEAT_END_MIN}}

When i got everything working and where able to control my valve and light via nodered, i thought that i would like to control the setup with the google assistant. First i tried a setup with Tasker and Autovoice and that worked some of the time but it was a bit complex. Then i found a great node that could do that :). I have used a light-node for the valve also, that is way it thinks its brightness instead of percent.

Here is a guide on how you install it and set it up :

https://flows.nodered.org/node/node-red-contrib-no...

FYI when trying to set it up on my phone and link a device i got send back when trying to accept in Chrome on android. You can't set it up on a computer because when you accept you get redirected to the google home app, since it doesent exist on the computer it wont work. But i had success with installing firefox on android.

All in all i am happy with the result, i accomplished what i wanted and i also where able to integrate google assistant. There where som problems along the way, but i learned a lot. I would have liked to have used Wi-Fi instead of ethernet. When i got the MQTT to work, i had a good stable connection. I would be possible to also use the routine function in Google assistant , then you could activate heat for example when you are near or have been away for a period of time.

Warning! 2 MQTT nodes that publishes the same message causes node-red to crash, and it will happen really fast. I had not much more then 1 second to start node-red in cmd to remove the node and deploy !

https://flows.nodered.org/node/node-red-contrib-no...

https://tech.scargill.net/big-timer/
