Switch traffic lights with an Ethernet shield

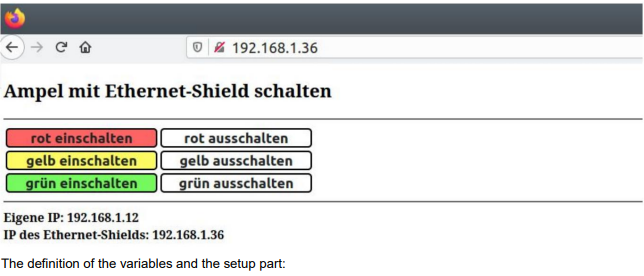

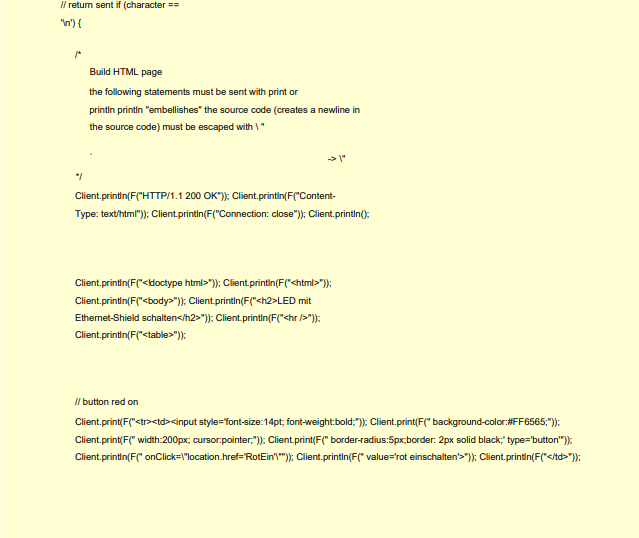

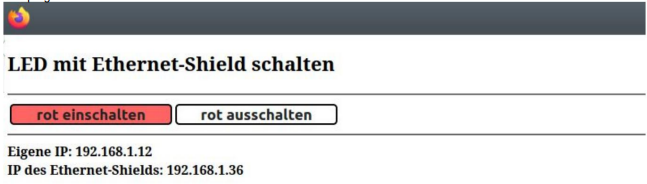

The program "builds" an HTML page with which first an LED and then a traffic light can be switched.
3
Components
Hardware components
Arduino - Arduino Ethernet Shield
x 1
Project description

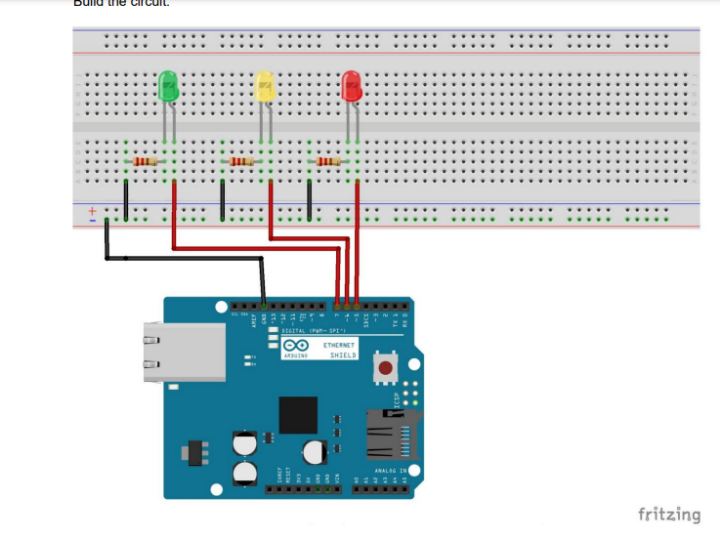

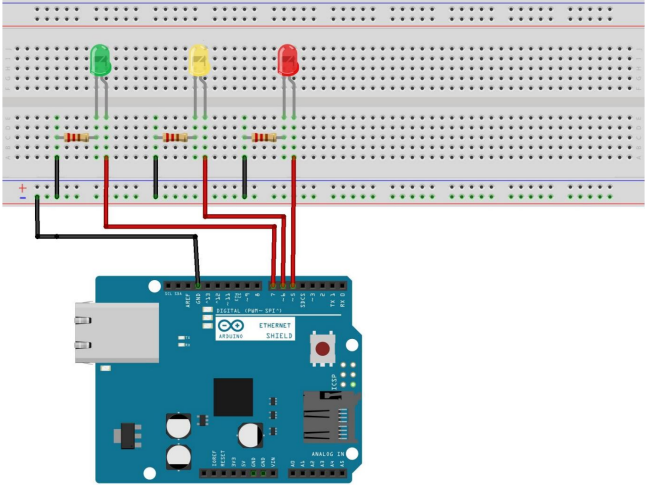

Switch traffic lights with an Ethernet shield 3 resistors > 100ΓΏ The program "builds" an HTML page with which first an LED and then a traffic light can be switched. Programming with the Arduino Ethernet-Shield For this task you need a so-called "shield", a circuit board that is simply plugged onto the Arduino. There is a LAN connection (RJ45) on it. All digital and analogue connections are still available. page 1 lead wires Required components: Build the circuit.
