AVR Ethernet I/O Board

Components

Hardware components

Project description

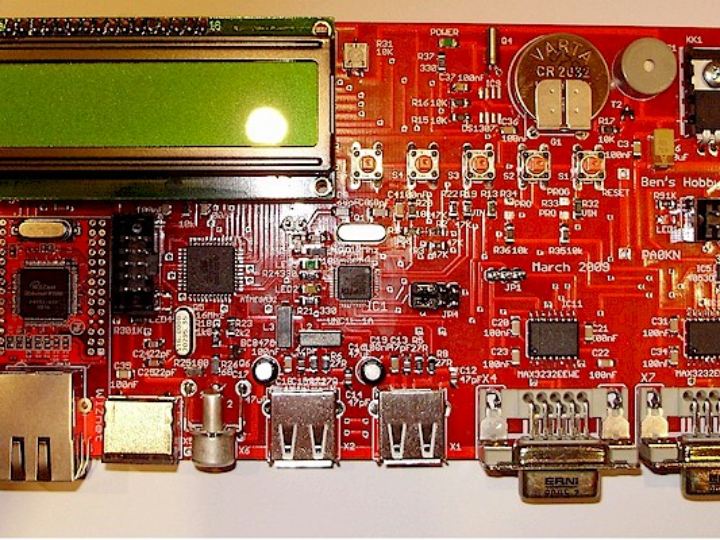

Step 1. Get the hardware... A bare board size 180 x 90 mm. Step 2: Description AVR Ethernet I/O board. Atmega128, 2 x MAX3232EEWE for 2 x RS232, 1 x VNC1L-1A with 2 x USB connector, black/white composite video with Atmega32, DS1307 Real Time Clock with battery backup, PS/2 keyboard connector, Wiz810MJ ethernet module and LCD 16 x 2 with backlight. Step 3: Some images building the board Main processor, Atmega128, 3,3 volt, on 8 Mhz.
