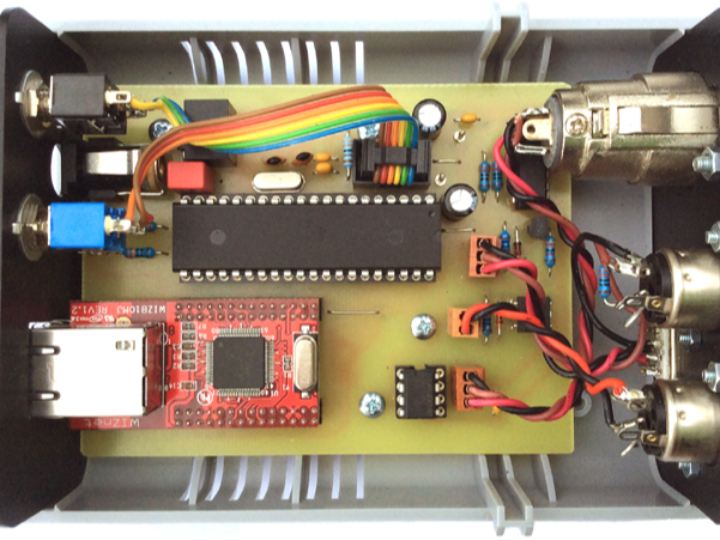

Ethernet to MIDI&RS232 + DMX512 Interface

Components

Hardware components

Project description

DETAILS This is a do-it-yourself construction manual for an interface which controls a serial port (MIDI or RS-232) and a DMX512 transmitter through wired Ethernet. (I would quote original since it is pretty difficult to understand and introduce this specialized product. Please refer to the original posting for more information.) Following modes of operation are implemented: The basic mode of operation is bidirectional 1:1 “transparent” communication between Ethernet (TCP or UDP) and the MIDI&RS-232 port. The MIDI&RS-232 port may be set to standard PC baudrates up to 115200 baud in addition…
