XIAO M0 + W5500 module

XIAO M0 + W5500 module based on Mongoose embedded os

lawrence

Published September 29, 2022

145 UCC

9 WCC

19 VAR

Original author: Cesanta Software LtdOriginal source (new tab)

Components

Hardware components

WIZnet - WIZ850io

x 1

Seeed Studio - XIAO M0

x 1

Software Apps and online services

Cesanta Software Ltd - Mongoose

x 1

Project description

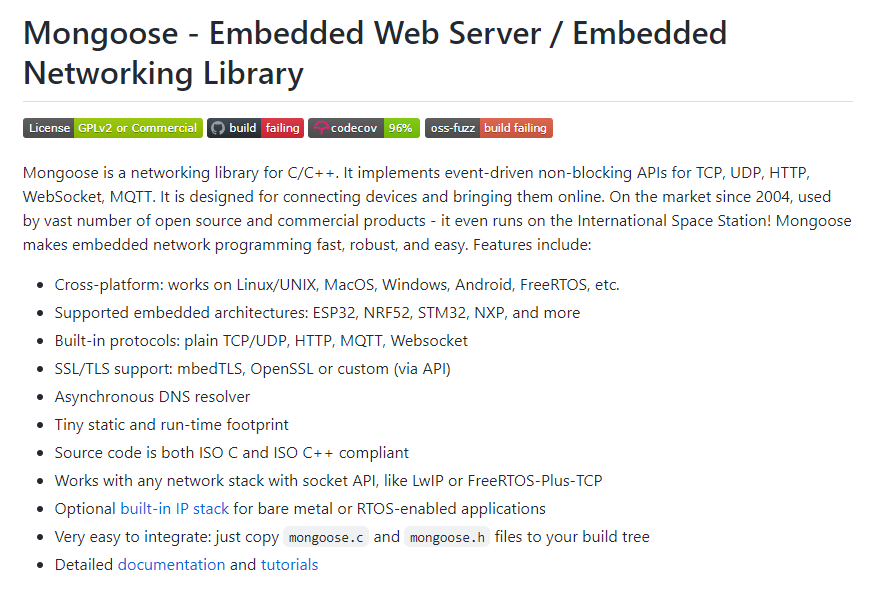

Mongoose provides embedded web server C/C++ library for device level. There are many platform device examples. It supports popular OS and platform H/W including Linux, Android, FreeRTOS and ESP32, STM32, NXP ,...

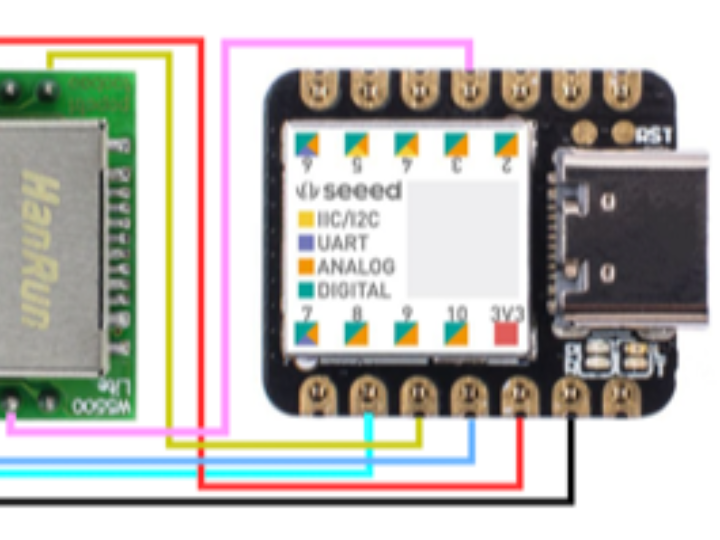

It also has Ethernet example with W5500 using XIAO M0 from seeedstudio. The more details are in the below link: https://mongoose.ws/tutorials/

Documents

W5500 example
