Project description

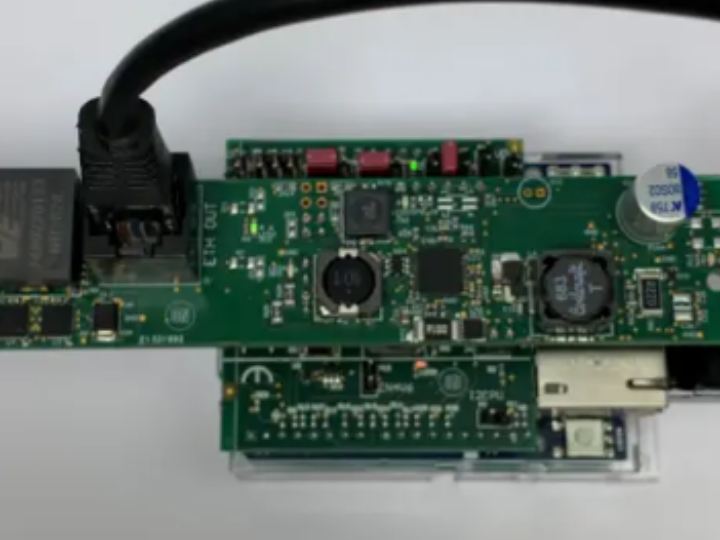

The NCL31010GEVK kit allows easy implementation and evaluation of a Power−over−Ethernet powered LED Luminaire Controller that is able to operate with an assigned power level up to 51 W. The NCL31010REFGEVB evaluation board is based on the Complete PoE connected LED Driver Power solution NCL31010(U2) with integrated PoE PD interface controller, dual synchronous step-down DC/DC converters for the main 3.3V VDD system supply as well as an anxiliary supply VDD2 and a current mode buck DC/DC controller designed to operate as a LED Driver.
