Project Overview

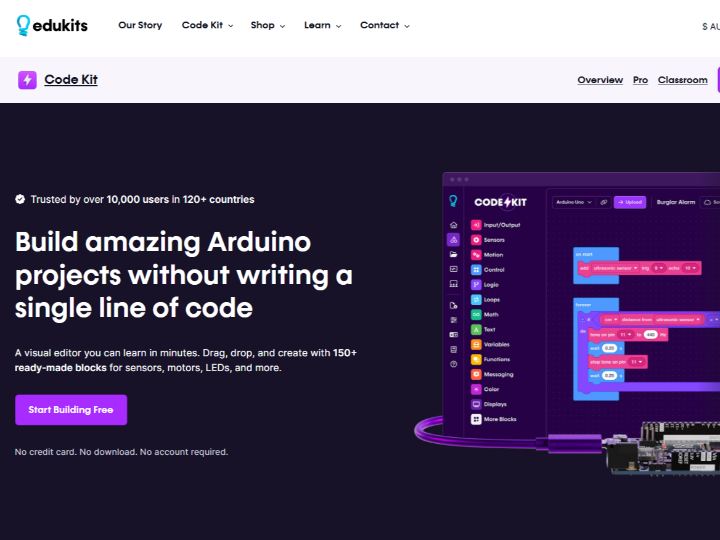

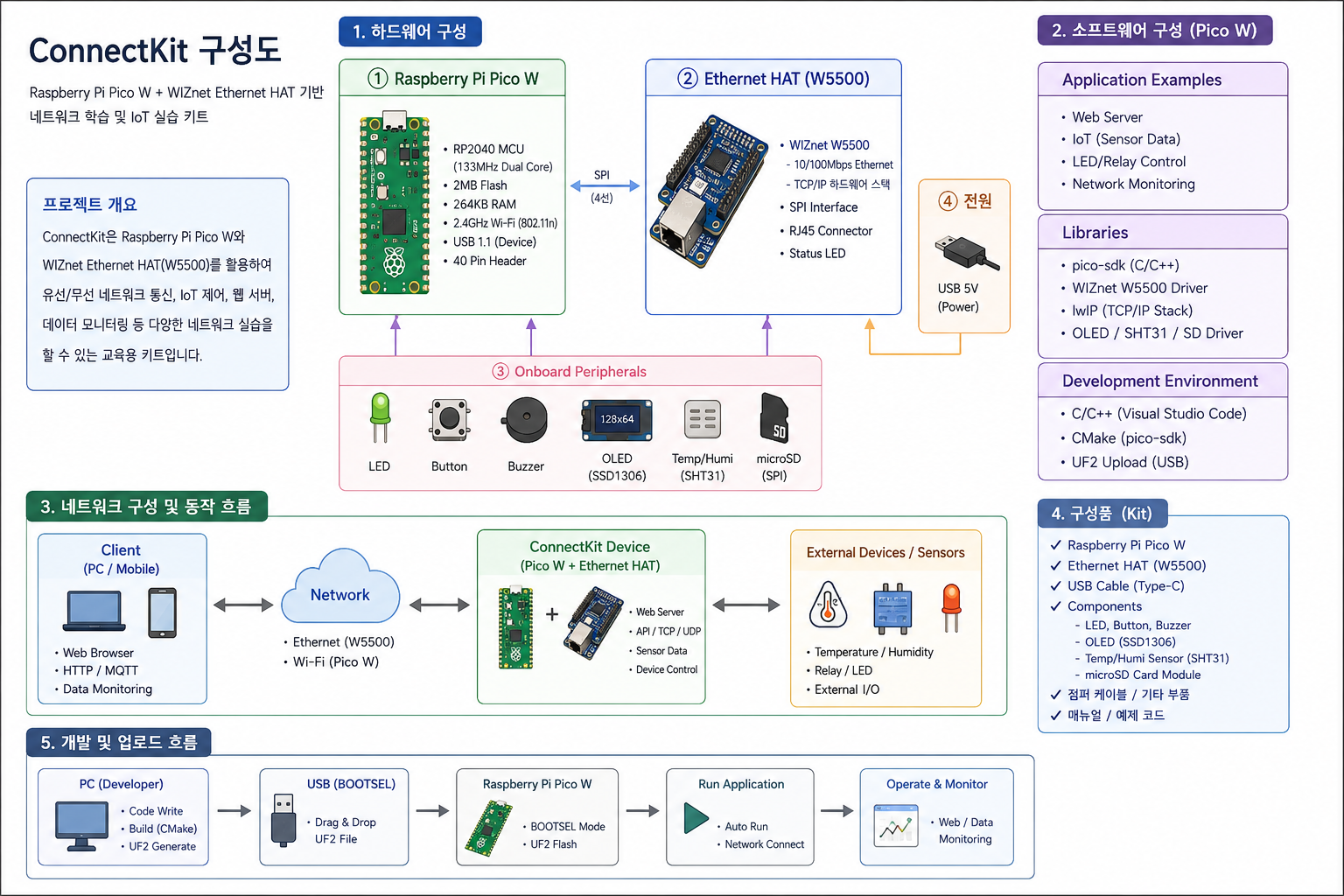

Code Kit is a block-based IDE from EduKits International that lets students and makers create Arduino firmware without writing code.
This demo shows how Code Kit’s ConnectKit library performs HTTP GET/POST requests. Instead of Wi-Fi, it uses a WIZnet W5500 shield for classrooms or exhibitions where wired links are more reliable.

Key Features

1. No-code IoT – build network logic with drag-and-drop blocks.
2. Stable wired Ethernet – W5500 handles TCP/IP in hardware, reducing packet loss.
3. Instant debugging – live serial log and Ethernet.linkStatus() feedback.
4. Multi-board support – works on Uno R3/R4, Mega 2560, Nano Every, etc.

Hardware Setup

Arduino 5 V/3 V3  ── W5500 VCC
Arduino GND       ── W5500 GND
D13 (SCK)         ── W5500 SCK
D12 (MISO)        ── W5500 MISO
D11 (MOSI)        ── W5500 MOSI
D10 (CS)          ── W5500 CS

Plug the on-board RJ-45 directly into a switch or router.

Software Implementation

#include <Ethernet.h>
#include <ConnectKit.h>

byte mac[] = { 0xDE,0xAD,0xBE,0xEF,0x00,0x01 };
EthernetClient net;

void setup() {
  Serial.begin(9600);
  Ethernet.init(10);          // CS pin
  Ethernet.begin(mac);        // DHCP
  Serial.println(Ethernet.localIP());

  ConnectKit.begin(net);      // hand Ethernet client to ConnectKit
  ConnectKit.get("http://api.weather.com/data",
                 [](String body){ Serial.println(body); });
}

void loop() {
  ConnectKit.update();        // non-blocking polling
}

Code Kit generates equivalent C++ automatically and sends it to the Arduino IDE.

Network Architecture

[Code Kit Blocks] → ConnectKit API → Ethernet.h (SPI) → W5500 → LAN → REST Server

The W5500 off-loads TCP/IP so the MCU can focus on application logic.

Performance Results

Lessons Learned

• Enabling W5500 DMA burst improves SPI read speed by ~20 %.
• Add a 3 s delay (or a static IP) after Ethernet.begin() to avoid DHCP timeouts.

Future Improvements

• Add HTTPS support via MbedTLS.
• Create MQTT publish/subscribe blocks.
• Evaluate IPv6 with WIZnet W6100.

Challenges & Solutions

DOCUMENTS

Closing Notes

This project combines the ease of Code Kit’s block coding with the robust networking of WIZnet W5500, letting anyone spin up reliable IoT prototypes in minutes. We hope the maker.wiznet.io community builds on this template and explores even more W5500-powered applications!
