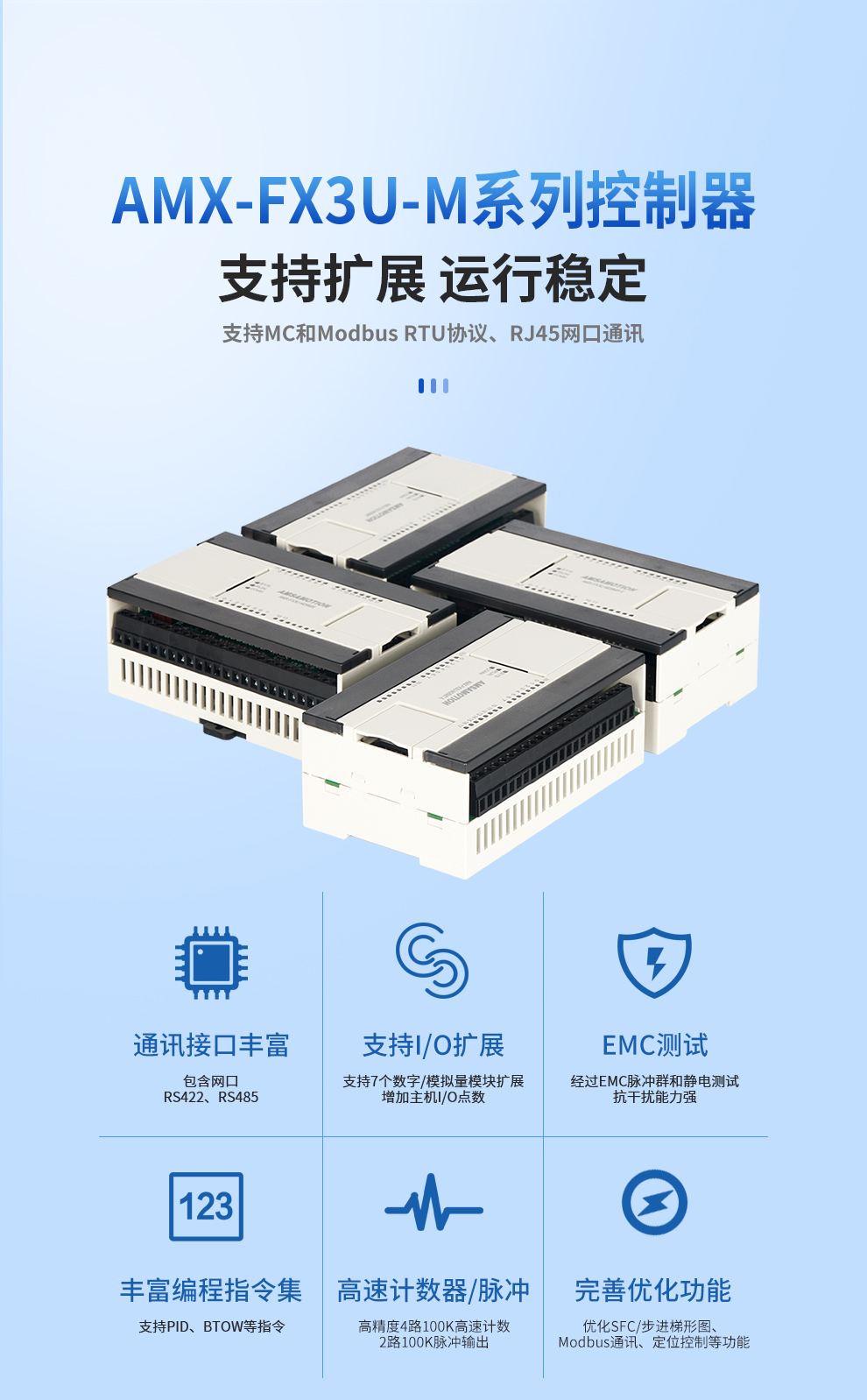

AMX-FX3U-26M series PLC controller

PLC controller with provides modbus support

josephsr

Published February 05, 2024

144 UCC

15 WCC

11 VAR

Original author: 东莞市艾莫迅自动化科技有限公司 · ChinaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

STMicroelectronics - STM32F103RCT6

x 1

STM32F103VET6

WIZnet parts

W5500 Datasheet

Project description

name
- AMX-FX3U-M26 series PLC controller
HW spec
- CPU : STM32F103VET6
  - 72MHz, ARM Cortex-M3, Flash 512KB, RAM 64KB
- LAN : wiznet w5500
- 16 digital input
- 10 digital output
- 2 analog input
- 2 analog output
- high speed counter 2 channel
- high speed pulse output 2 channel
- RS485(for MODBUS RTU, FX3U PLC), RS422(upload/download/monitoring), RJ45(w5500)
- compatible with the mitsubishi MELSEC series of PLCs

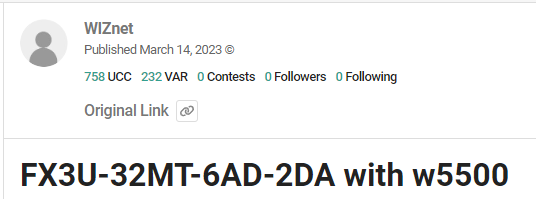

simillir to FX3U-32MT-6AD-2DA with w5500
