BATC W55RP20 Pico Board Discussion

Users note that the PicoTuneWH Ethernet software will require recompilation to support the chip via the new SDK for the W55RP20.

jakelee

Published July 30, 2025

26 UCC

4 VAR

Original author: Martin G8LCE · United KingdomOriginal source (new tab)

Components

Hardware components

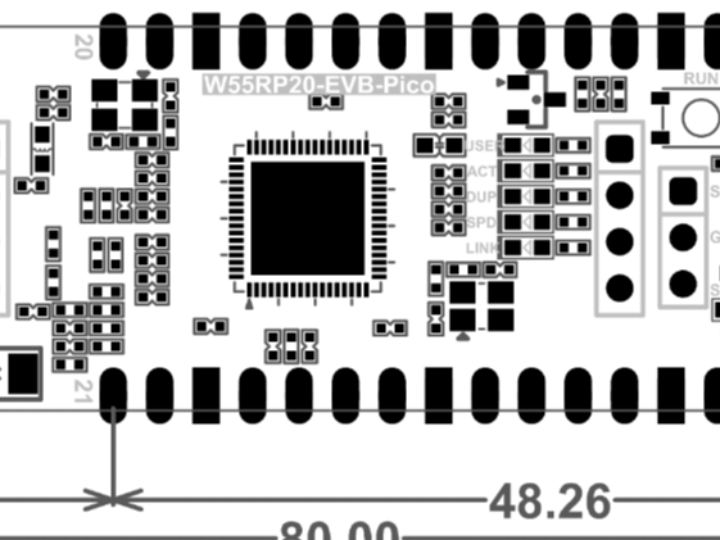

WIZnet - W55RP20-EVB-Pico

x 1

Software Apps and online services

BATC - PicoTuneWH

x 1

Project description

1. Community & Market Relevance Hobbyist & Amateur Radio Space: The British Amateur Television Club (BATC) audience focuses on digital amateur television (DATV) and video over IP. WIZnet Benefit: 2. Technical Advantages from the Thread Integrated Networking: WIZnet’s hardware TCP/IP stack offloads network processing from the MCU, which is appealing for hobbyists who may not have deep networking expertise. Compact Design: Developers get Ethernet and processing in one small form factor, removing the need for a separate Raspberry Pi or external Ethernet adapter. PicoTuneWH Example: 3. Strategic…
