W55RP20-EVB-Picoで三菱電機製インバータを動かしてみた

W55RP20-EVB-Pico

jaden

Published July 30, 2025

133 UCC

18 WCC

55 VAR

Original author: masaki kohei · JapanOriginal source (new tab)

Components

Hardware components

WIZnet - W55RP20-EVB-Pico

x 1

Project description

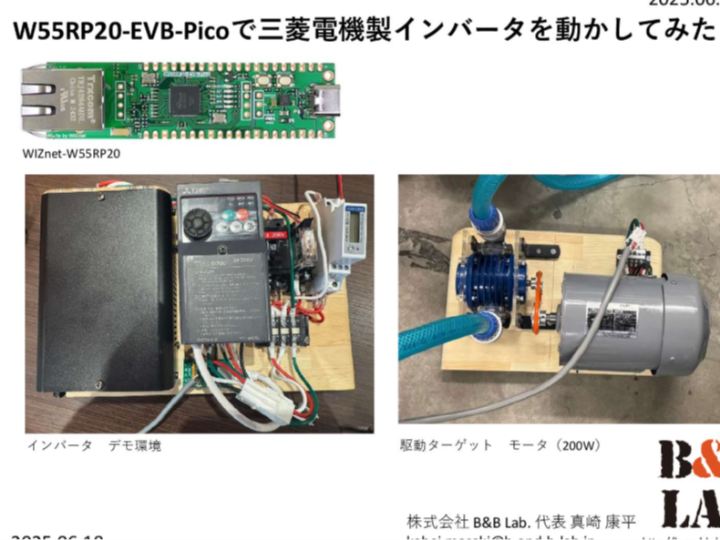

Project Overview This project demonstrates how to control a Mitsubishi Electric inverter using the W55RP20-EVB-Pico board. The setup includes a 200W motor as the load and a fully configured inverter test environment. About B&B Lab. Established: January 2018 Capital: 3 million JPY Focus Areas: IoT device development and service creation, with a current emphasis on smart agriculture. CEO: Kohei Masaki Responsible for hardware development. Experience: Over 10 years at Sony Semiconductor (Kagoshima, Kumamoto, Fukuoka), specializing in image sensor development. Expertise: Image processing…
