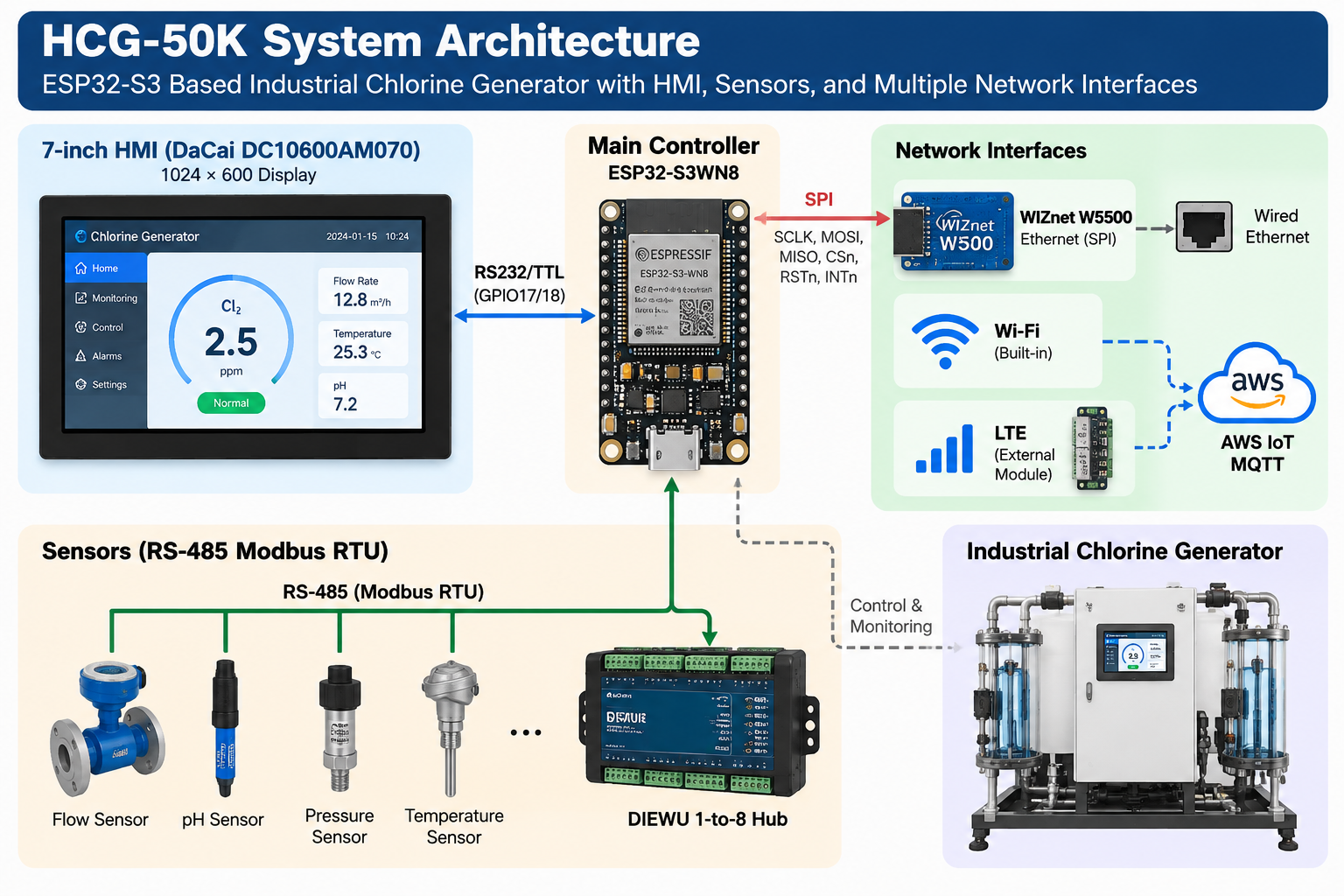

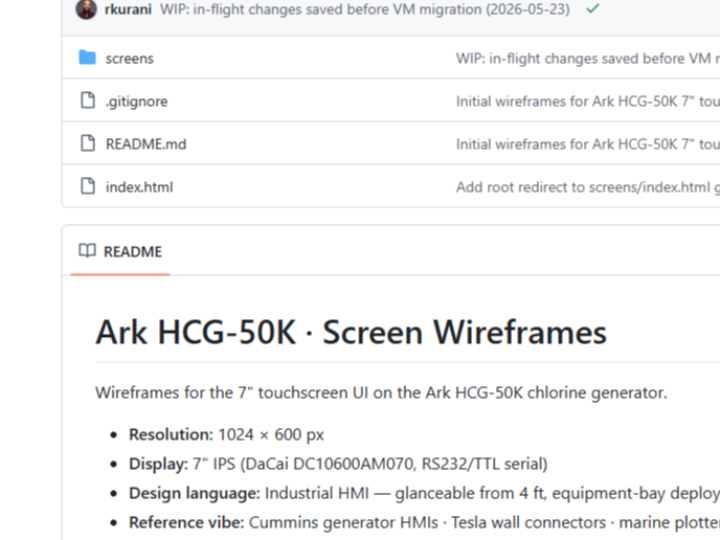

How to Connect WIZnet W5500 Ethernet to an ESP32-S3 Industrial Chlorine Generator? Summary The Ark HCG-50K UI project defines the user interface for an industrial chlorine generator built around an ESP32-S3WN8, a 7-inch HMI, an RS-485 Modbus RTU sensor network, WIZnet W5500 Ethernet, Wi-Fi, LTE, and AWS IoT MQTT. In this architecture, the W5500 provides the ESP32-S3 with a wired Ethernet interface over SPI. The public repository is an HMI wireframe project, so the actual W5500 GPIO assignments and PCB schematic cannot be verified from the available source. What the Project Does…
