LORA Gateway and Acquisition Terminal Based on ART-PI

【RT-Thread作品秀】基于ART-PI的LORA网关及采集端

jaden

Published October 04, 2022

Original author: shihengrui · ChinaOriginal source (new tab)

LORA Gateway and Acquisition Terminal Based on ART-PI

Components

Hardware components

Project description

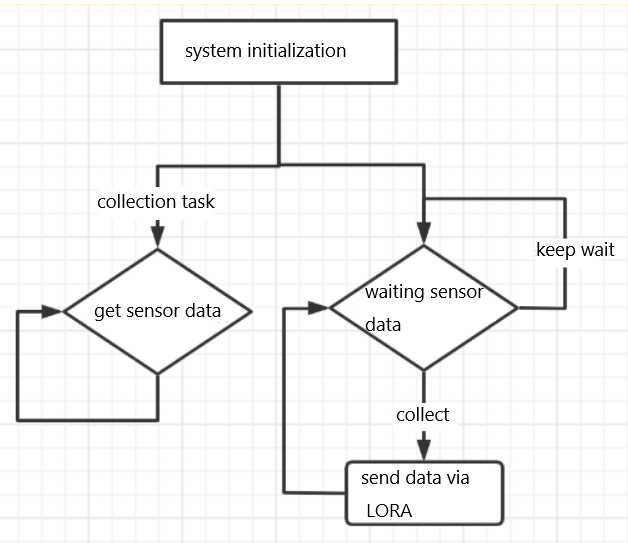

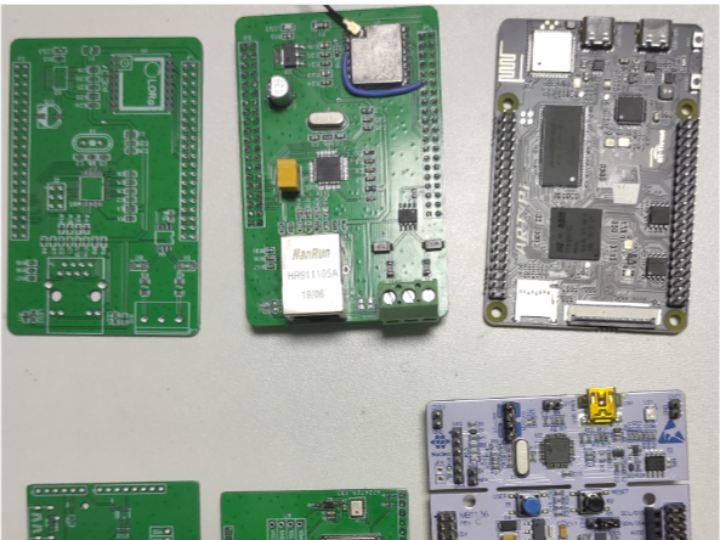

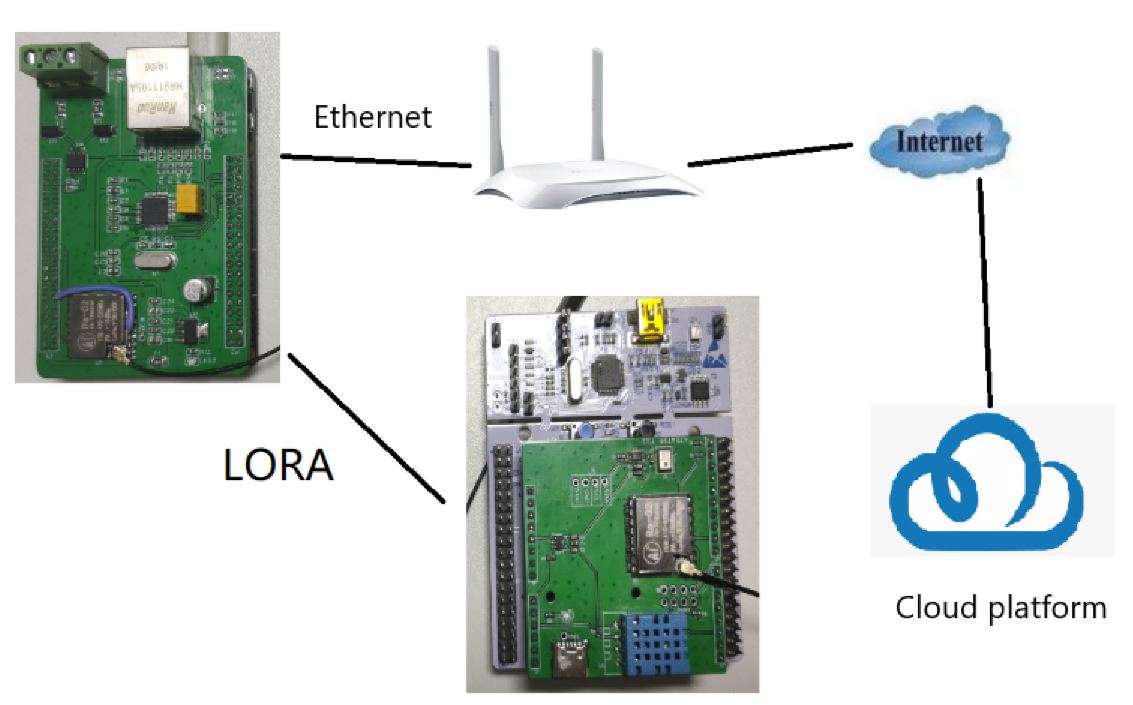

Hardware: ART-PI development board NUCLEO-L452 development board LORA acquisition expansion board (Anxinke Ra-02, DHT11) LORA receiving expansion board (Anxinke Ra-02, W5500, sp485) RT-Thread version: RT-Thread 4.03 ( ART-PI development board ) RT-Thread 4.02 (NUCLEO-L452 development board) Development tools and version: RT-Thread Studio V2.0 STM32CuBeMx V6.1.0 hardware frame Acquisition side : Simple LORA module, communicate with the board through SPI, and a controllable LDO and AHT10 and BH1750, use LDO to control AHT10 and BH1750 to achieve the effect of low power consumption. Receiver…
