MaxPCB4E

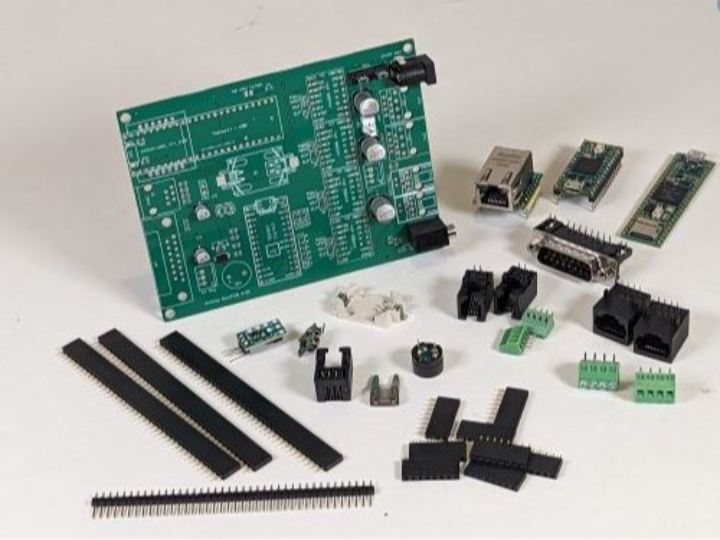

This is one of the latest OnStep PCB designs of Howard’s.

irina

Published November 23, 2023

187 UCC

5 WCC

66 VAR

Original source (new tab)

Project description

It also has an W5500 Ethernet module (puts the Ethernet RJ45 port on the front panel) and a socket for a Teensy3.2 or 4.0 to run OnStepX's Smart Web Server. This design is built around the Teensy4.1 processor
